One of the most sought-after steel strapping tool setups in our inventory is the standard steel strapping setup. This configuration comprises a two-piece tool setup, necessitating a tensioner to tighten the steel strapping and a sealer to crimp the seal onto the steel strapping. Renowned for its cost-effectiveness and strength, it stands as one of the most economical strapping setups available.
Explore Our Range of Steel Strapping
Applications: This setup finds widespread use across various applications, including securing timber packs, wall frames, trusses, palletizing goods, and lighter loads of steel.
Break Load and System Strength: The steel strapping boasts an impressive break load of 798 kg when the seal (crimp) is applied. However, it's important to note that the system strength of the setup is approximately 558 kg, as around 30% of the strength is lost at the seal.
Advantages:
- Cost-effective tools
- User-friendly and simple to operate
- Steel lies flat, facilitating easy passage under pallets or goods
- High strength with a break load of 798 kg
- Reliable seal joint ensures secure fastening
This setup caters to a wide spectrum of users, from low-volume users with a single station to high-volume users requiring multiple stations set up throughout their yard or warehouse. It also proves ideal for onsite teams handling pallet racking or scaffolding due to its compact nature, allowing the thin roll to fit conveniently behind a truck seat or in a storage compartment.
Limitations:
- Requires a flat or straight surface to mount the tensioner
- PET (Polyester) price per Meter is relatively cheaper
- Slower speed compared to Seal-less or battery-operated tools, although still one of the fastest manual setups per strap
Required Equipment:
- Standard steel strapping setup
- 19mm Steel strapping sealer
- 19mm SO Seals
- 19mm x 0.56mm Ribbon steel strapping
- Steel strapping dispenser

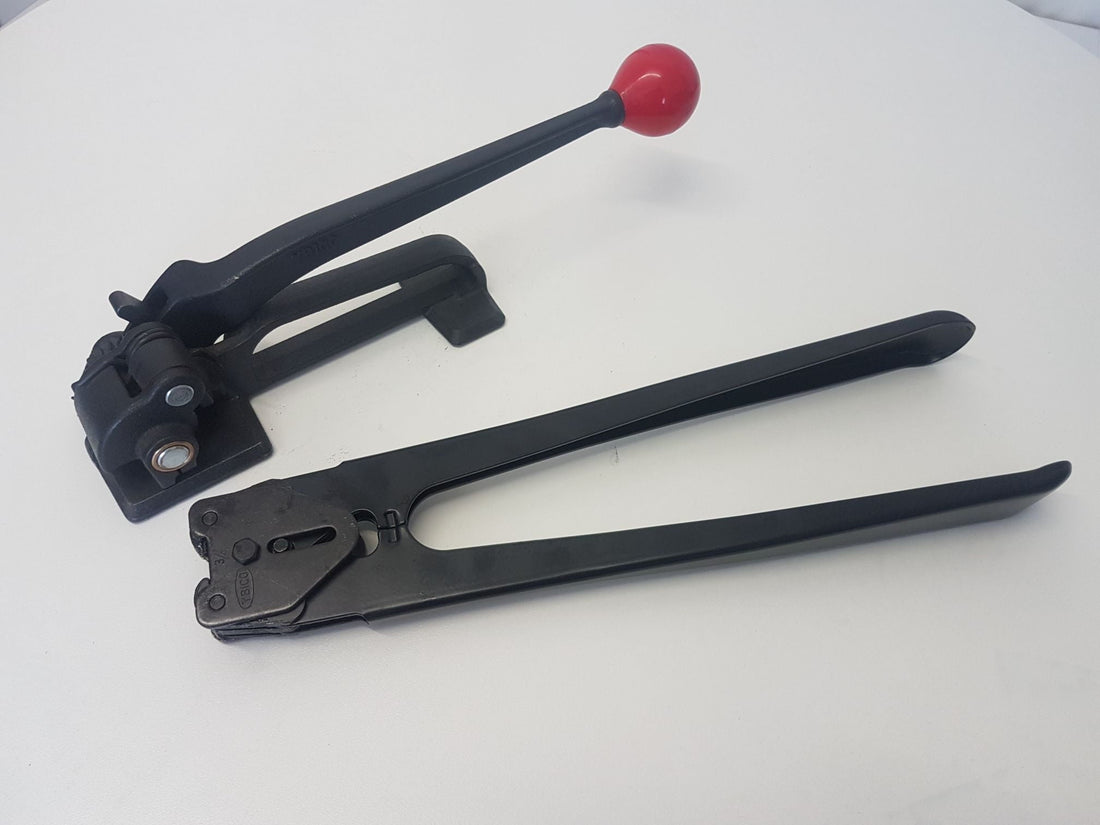

Additional Information: The ADL1 and ADL4 are YBICO tools, imported by MPS Packaging Australia and distributed through our extensive network of end-users, resellers, and distributors. Designed to be both affordable and reliable, these tools are readily available, with spare parts stocked for tensioners if repairs are required.
The ADL1, also known as the YBICO S90 Tensioner, accommodates steel strapping 12-19mm wide and from 0.40mm to 0.60mm in thickness. Utilizing a ratchet mechanism with pawls for tensioning, it features a manual pawl release to release the handle while keeping the strap under tension.
The ADL4, or YBICO C3206 sealer, is capable of sealing 19mm steel strapping up to 0.60mm with the use of SO seals exclusively. Its longer-than-average handles, made of all steel, ensure ease of use and efficient crimping.
Information on the Strapping: The steel strapping is proudly Australian Made, employing Bluescope steel with an approximate breaking strain of 798kg per roll, weighing around 16kg
Information on the Seals: The seals are also Australian made, crafted with Bluescope steel. The snap-on or "SO Seals" are designed for easy clipping after tensioning the strap, offering cost-effectiveness without compromising on durability.
Information on the Dispenser: Our ADL5 ribbon steel strapping dispenser, the most basic in our lineup, features a locking pin to secure the steel strapping in place once loaded. Designed for portability around the yard or warehouse, it offers convenience and ease of use.
Availability: All the aforementioned items for this setup are readily available at MPS Packaging Australia. For a demonstration in Victoria or inquiries regarding reselling or distributing our tools or straps, feel free to reach out to us. Additionally, we offer discounts for larger purchases, ensuring affordability and accessibility for our valued partners.
