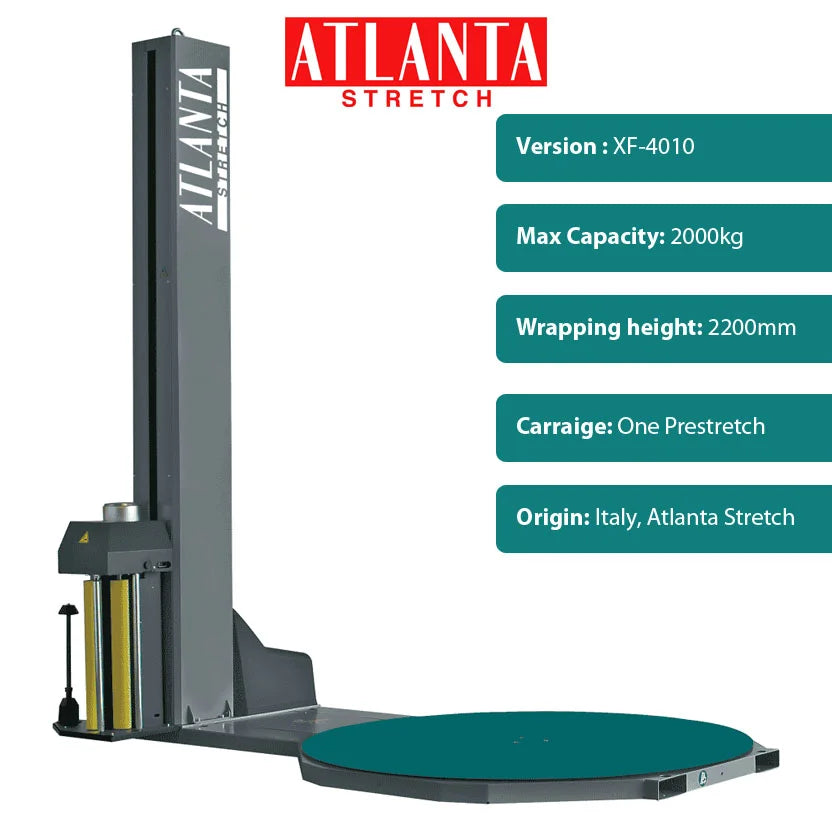

Synthex – 2000KG Capacity – Pre stretch – Pallet Wrapping Machine – Version XF-4010
Synthex – 2000KG Capacity – Pre stretch – Pallet Wrapping Machine – Version XF-4010
Low stock: 1 left
Atlanta Stretch Pallet wrappers
We sell pallet wrappers from international brand and Italian manufacturer ATLANTA STRETCH. ATLANTA STRETCH pallet wrappers are used throughout the world and known for their robustness, low maintenance and low cost of ownership.
MPS buy direct and sell direct, offering end users an unbeatable price for a high quality Italian made pallet wrappers.
Use of industrial Components
Industrial design & Components
Atlanta stretch build machines with ease of replacement parts in mind. where possible they use commercially available industrial components. Current machines use Siemens inverters and the power supply and buttons are all generic.
1650mm turntable for AU Pallets

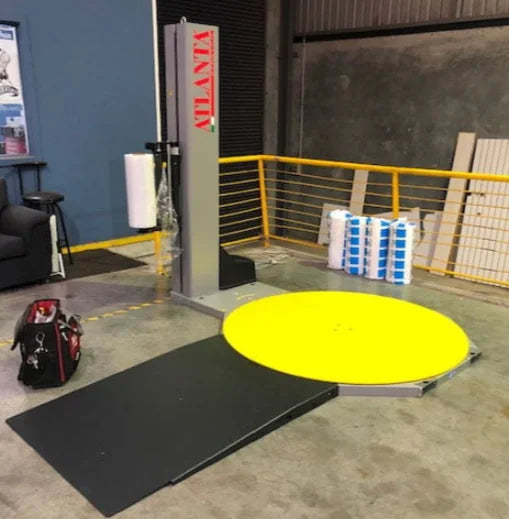

Add short ramps easily
MPS import machines with 1650mm turntables, that means if you want to add a ramp to support AU pallets you can easily. a 1650mm turntable can fit an AU CHEP or LOSCAM on it with no overhang.
MPS machines from Atlanta that are 75mm high only need a 1.3m Long ramp. The use of a a 1.3m ramp on a 1500- 2000kg capacity machine needs far less servicing than any 25mm or or lower low profile turntable as there are considerably less bearings involved.
safe for all

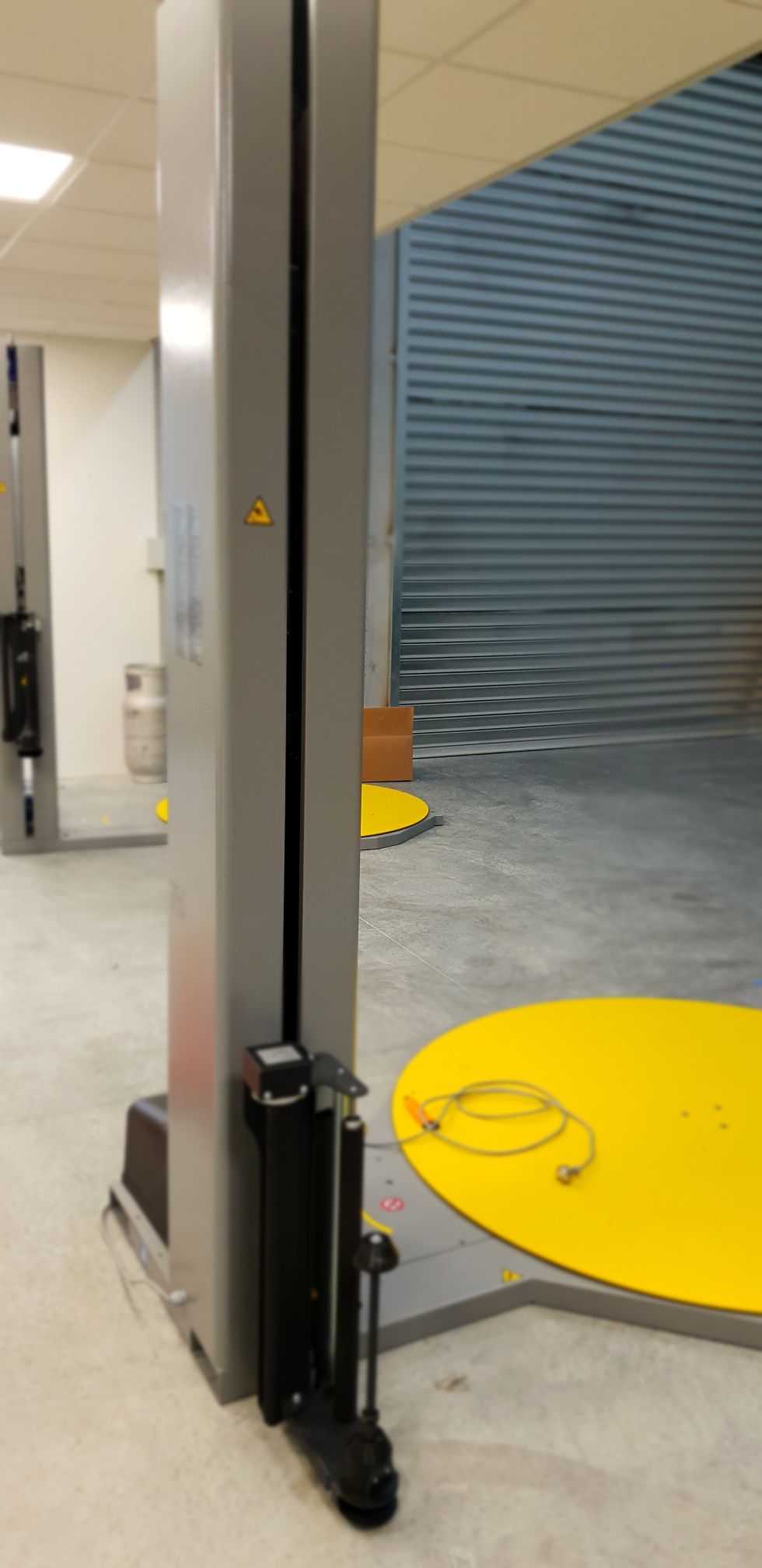

Fully enclosed mast design
Atlanta stretch build machines with a fully enclosed mast design, this means that all components for the carriage to operate are inside the mast, the upper and lower limit switches, the chain, cable loom, microswitches and the main bearings of the flange are all internal.
This internal design design means there is less chance of components failing due to dust or moisture, they cant be knocked and people cant get their fingers in there.
component comparison
Heavy duty gearbox

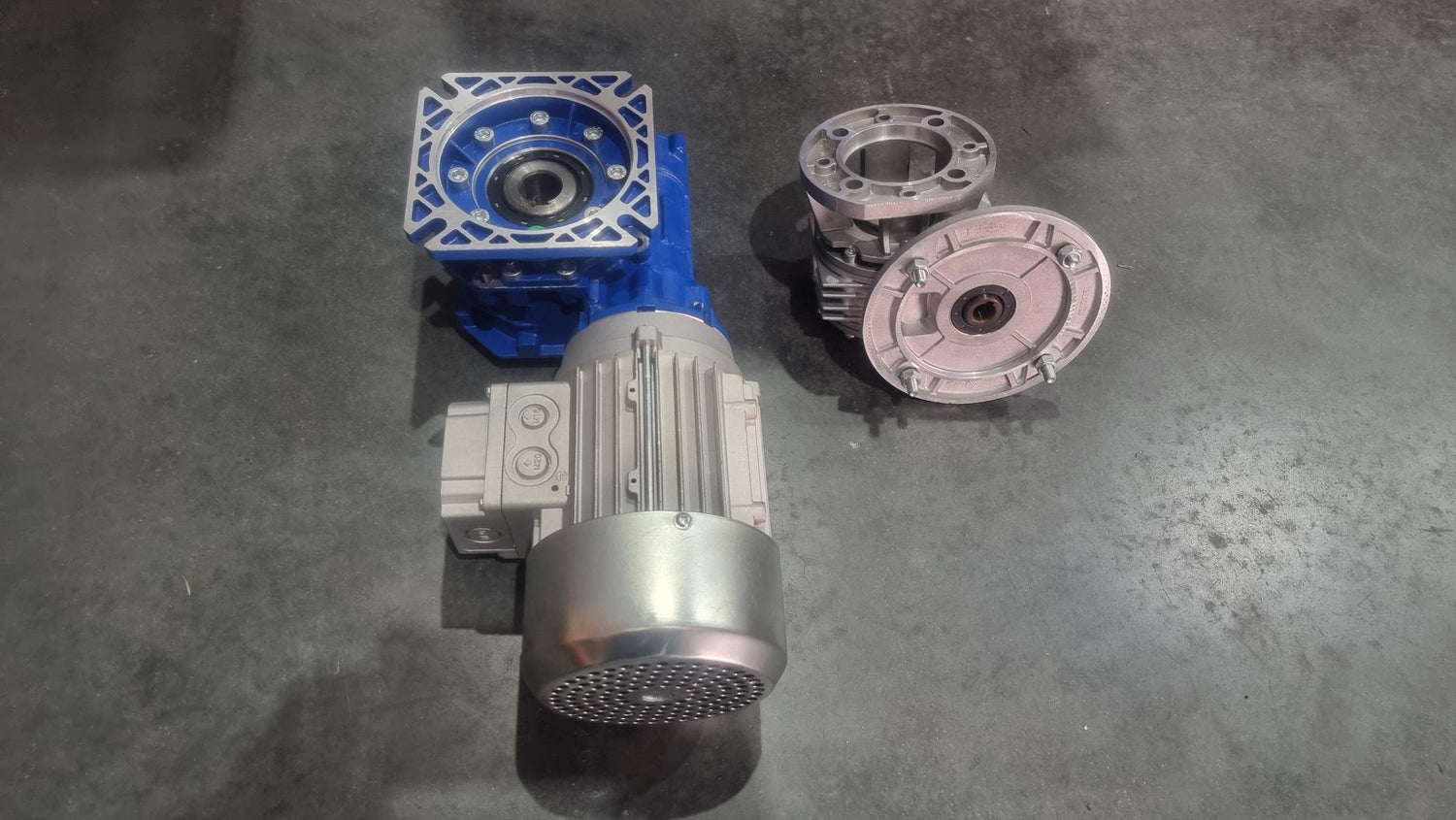

The gearbox and motor to the left is from an Atlanta stretch synthesi or Mytho, the flange is mounted to the sealed gearbox using 8 large MX6 bolts. it is then bolted to the base of the machine using M10 bolts.
To the right is a gearbox used in other Italian made machines which for $ome rea$on retail for more than the Atlanta Synthesi. Despite their gearbox been mounted with 4x bolts of lesser gauge to a CAST steel flange.
If you're shopping around for machines we urge you to look at the build quality and components used for machines, weather you buy an Atlanta or not, we want to educate buyers and not have them stuck with an Alfa Romeo of pallet wrappers which might look cool as a weekend ride, but it only works half the time. Whats your daily pallet wrapper going to be?
Component comparison
Heavy duty steel flange

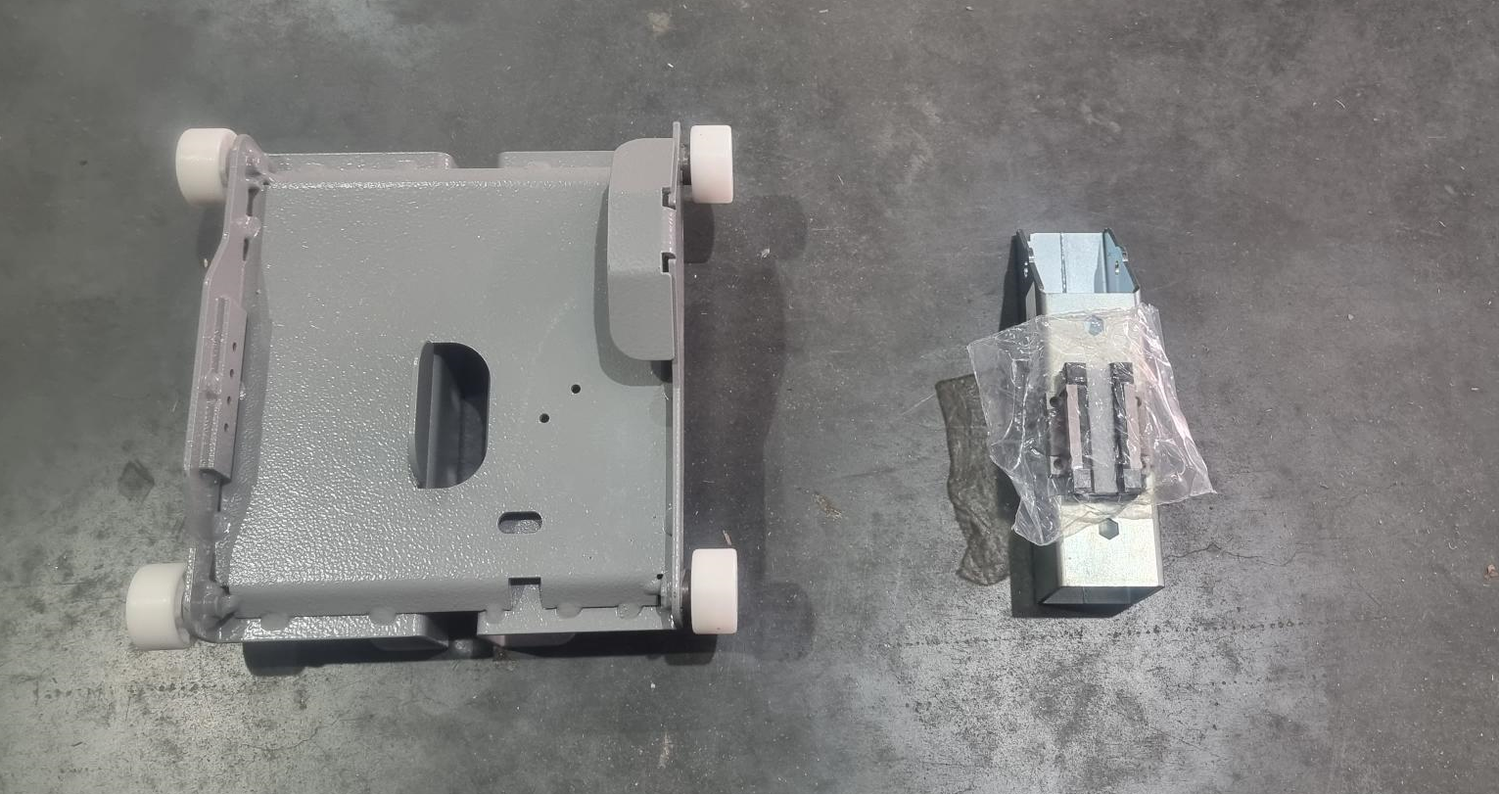

The Left it an ATLANTA steel carriage flange and bearing setup for the mast, its responsible for bearing the weight of the stretchwrap, roll carriage, and force of the strechwrap been stretched also maybe a forklift bump or too.
This carriage flange is used throughout the range from our entry level machine the Eva through to the high end Mytho.
The right is a linier bearing and flange used in some other entry level and midrange models. Ask yourself, how much stretchwrap stretching force can a linier bearing take before you rip it off the rail?
Don't take our word for it, inspect any machine before you buy. but look for these points.
Generic components for high ware buttons
Industrial buttons

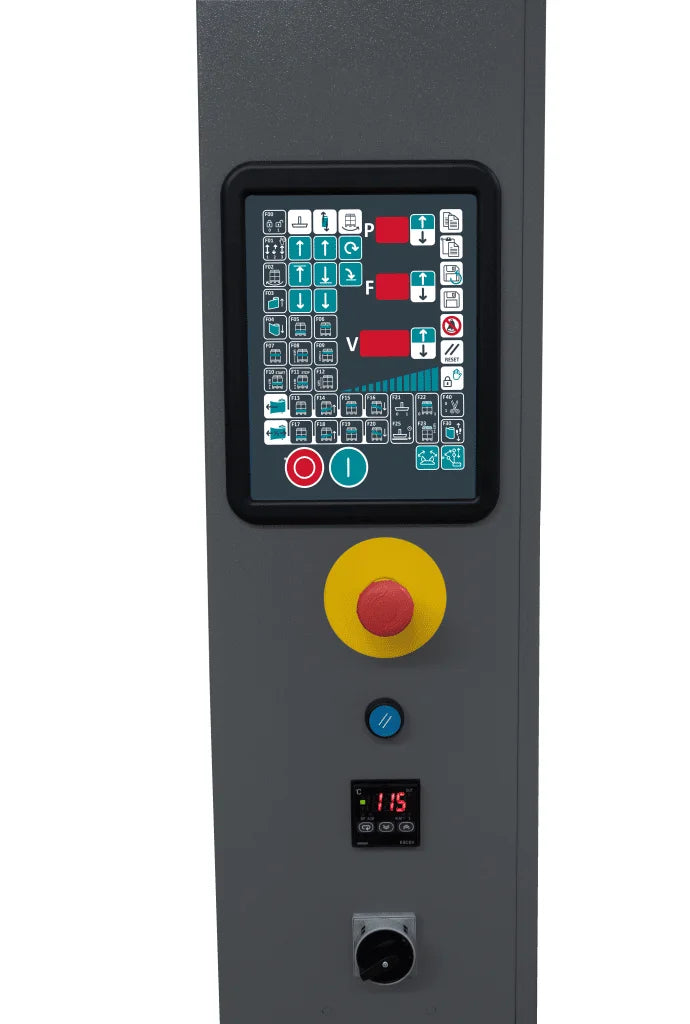

The Eva and Mytho S models and (Synthesi by request) make use of industrial buttons for the high use start, stop, enabling, main isolator and emergency stop. these buttons are quick and easy to replace if they ware out or break and easily obtainable from your local electronics supplier.
Atlanta stretch dont try to lock you into using their parts and buttons. Their goal is to build a robust machine with low service requirments in mind.

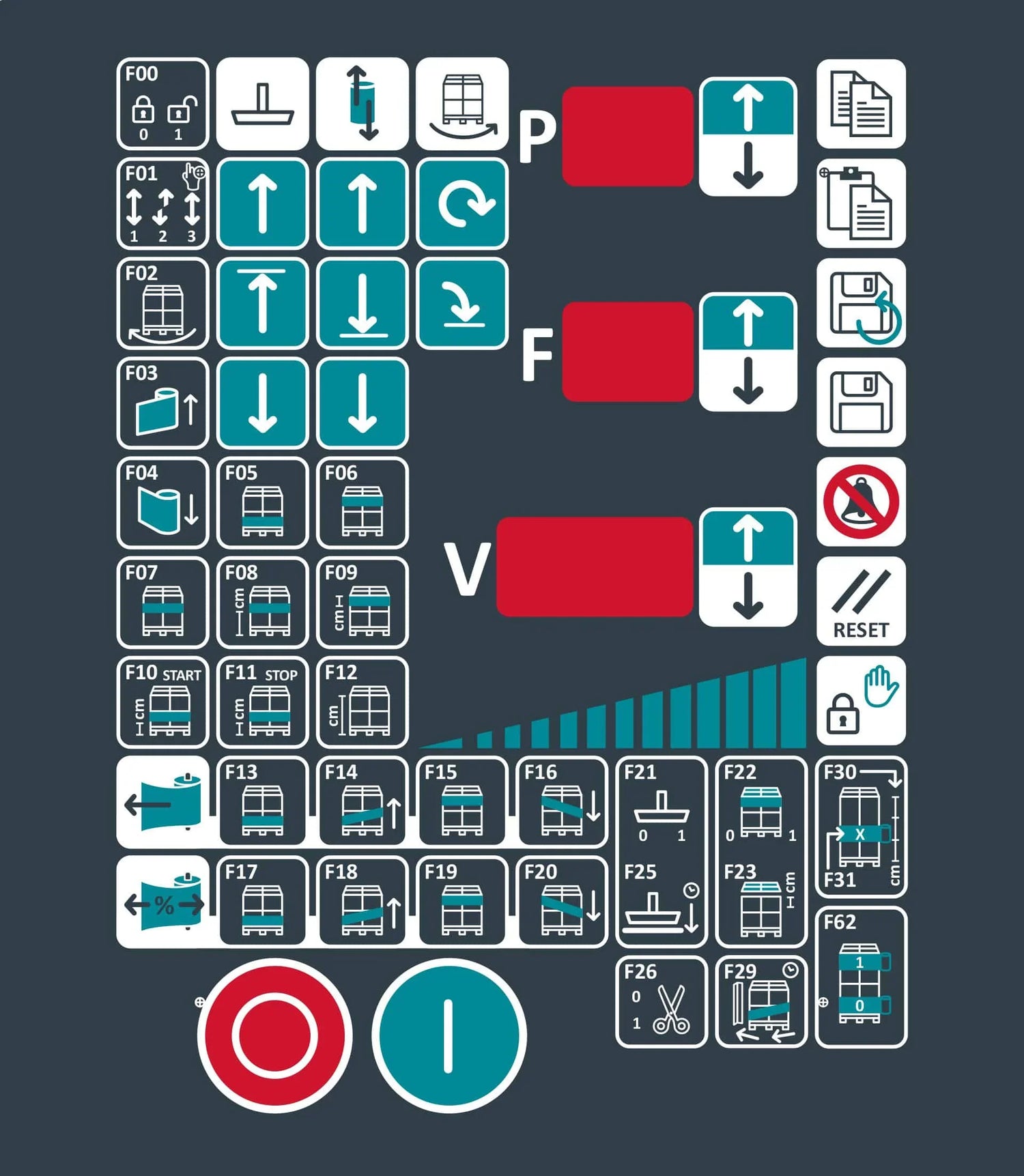

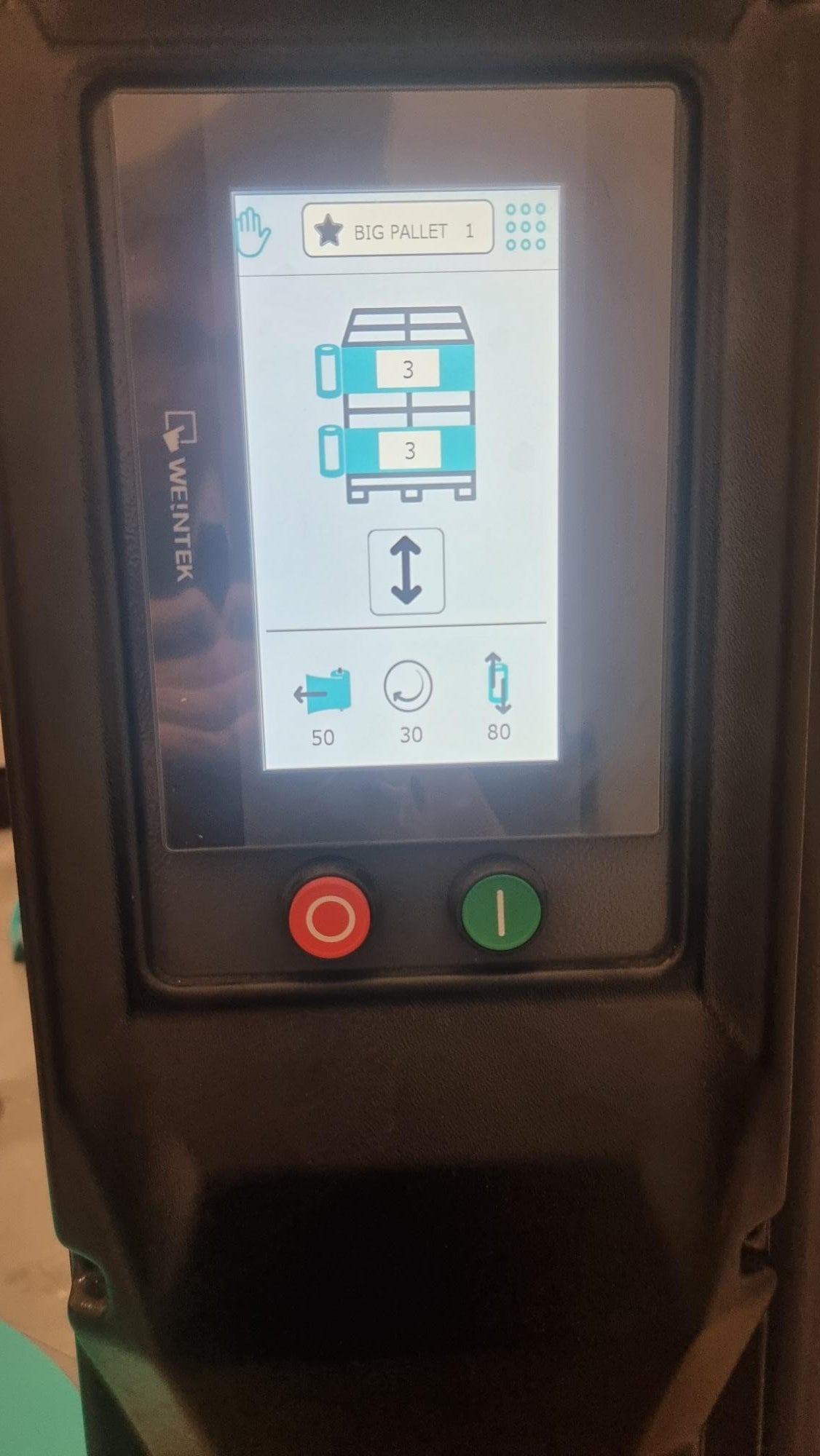

The east to use HMI panel on this image is from the Mytho S model.
Viste our pallet wrapper showroom

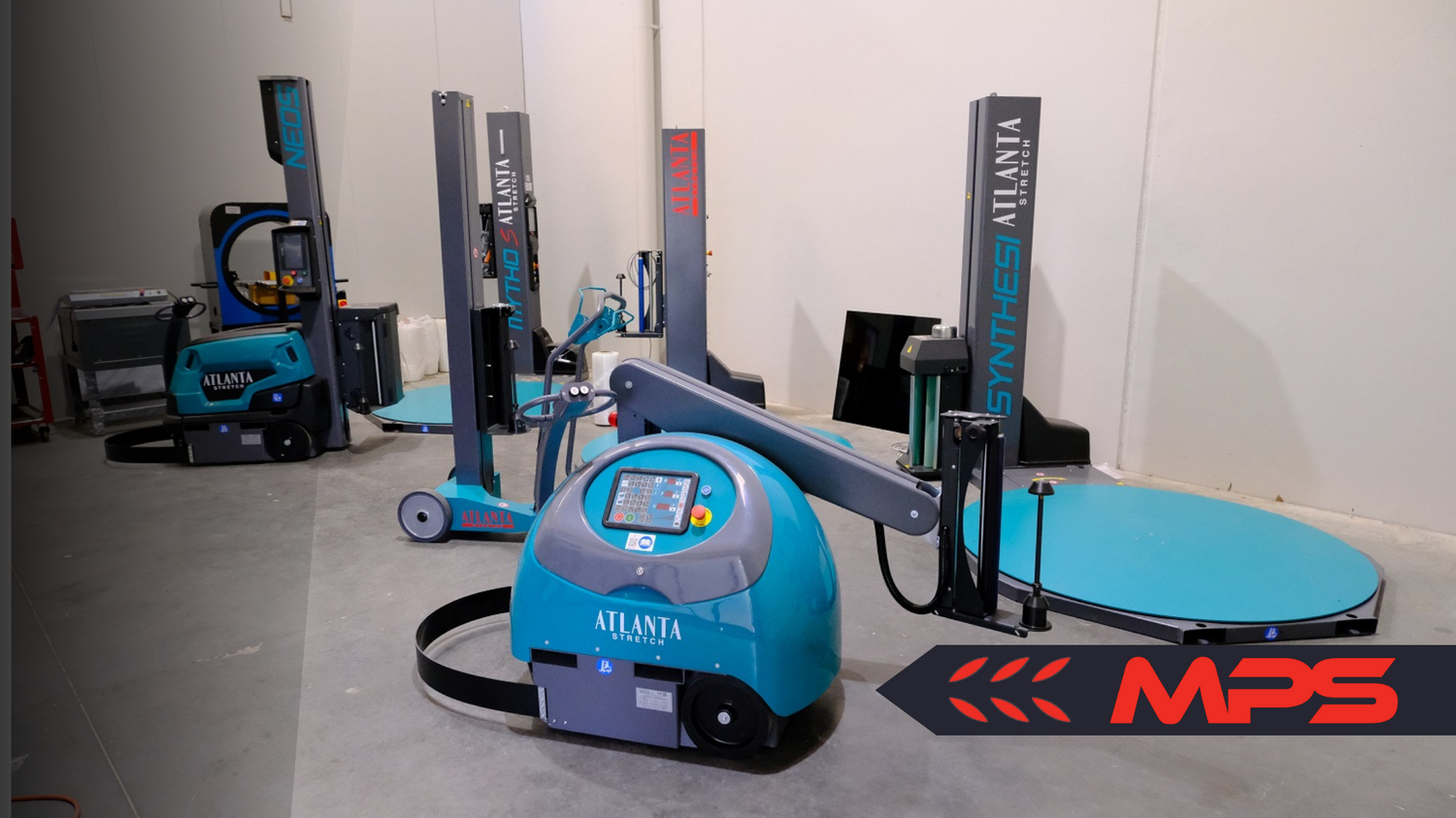

Dedicated pallet wrapper showroom
If you want to comapre models up close, thats no problems, we have a dedicated showroom where we have a range of models setup for comparision,
