The BXT4 is one of the latest strapping tools to hit the market, used on PET strapping and Polypropylene strapping. Our guide below shows some of the maintenance tips for maintaining the BXT4.
Maintenance and repairs
Unexpected startup during maintenance work can cause accidents
Always remove the rechargeable battery before performing cleaning, maintenance and repair work.
Cleaning the device
In the case of heavy dirt accumulation, we recommend cleaning the device daily. In particular, the tension wheel and the tooth plate should be checked for damage and kept clean.

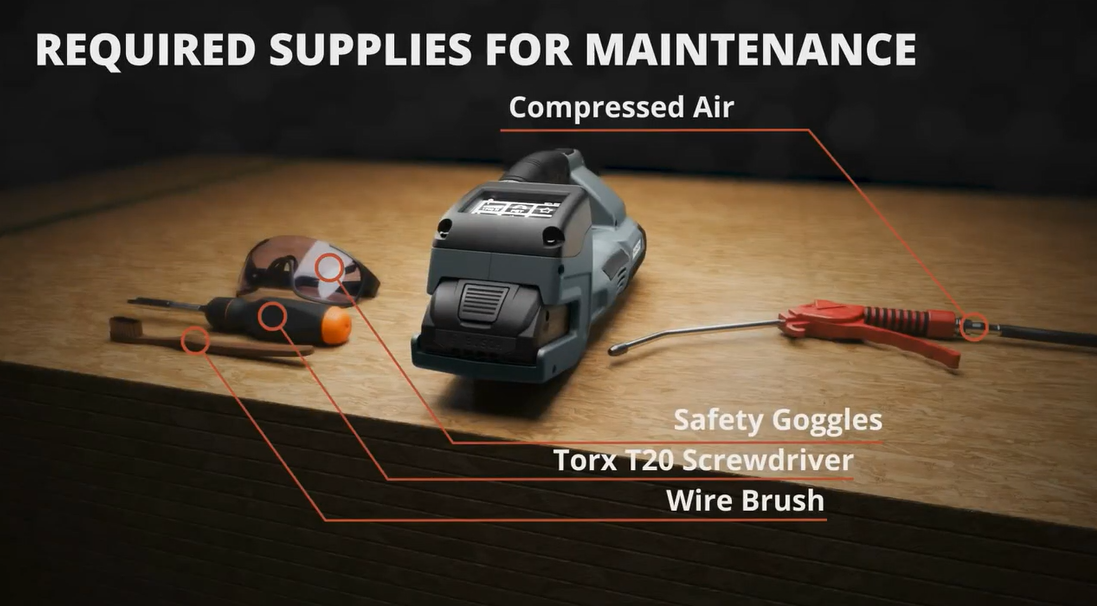

Make sure you are wearing safety goggles before cleaning with compressed air, use a compressed air gun with multi-hole jets for cleaning with compressed air. Make sure that the compressed air in not directed at any body parts or skin. Make sure air blow gun and nozzle complies with the applicable local standards.
In the right housing shell beneath the motor, there are two blow holes, through which the compressed air is blown first to clean the welding unit.
After this, clean the tension wheel and tooth plate with compressed air by blowing them out from the sides.
If necessary, clean/replace the tension wheel/tooth plate.
Re-greasing the unit
To ensure optimal stability, we recommend re-greasing the device regularly.
- Remove the rechargeable battery from the device. Remove the strap guide, internal, rear. Undo the two Torx cylinder head screws and remove the side cover.
Carefully spray the welding unit at the two points with a high pressure resistant adhesive lubricating oil spray.
Re-mount the side cover and strap guide, internal, rear.
Cleaning/replacing the tension wheel
Removal
Operate the trigger.
Remove the battery as soon as the tensioning unit is open.
Undo the two Torx cylinder head screws and remove the strap guide, internal, rear and the side cover.
Undo the three Torx cylinder head screws and remove the tension wheel cover.
Carefully pull out the tension wheel.
Detach the groove ball bearing from the tension wheel.
Clean the tension wheel with compressed air.
If the teeth are heavily contaminated: carefully clean the tension wheel with a wire brush.
Check the tension wheel for worn teeth. If any of the teeth are worn, replace the tension wheel.
The tension wheel must not rotate during cleaning. Risk of broken teeth!
Installation
Installation is carried out in reverse order. Observe the tension wheels direction of rotation.
Lightly grease the tension wheels internal teeth
Cleaning/replacing the tooth plate
Removal
Operate the trigger.
Remove the battery as soon as the tensioning unit is open.
Undo the Torx cylinder head screw.
Remove the tooth plate.
Clean the tooth plate with compressed air.
If the teeth are heavily contaminated: carefully clean the tooth plate with a wire brush.
Check the tooth plate for worn teeth. If any of the teeth are worn replace the tooth plate.
Installation
Installation is carried out in the reverse order, Lock the flat head screw.
- The tooth plate is firmly screwed to the base plate.
We hope you found this BXT4 Battery strapping tool guide helpful.
