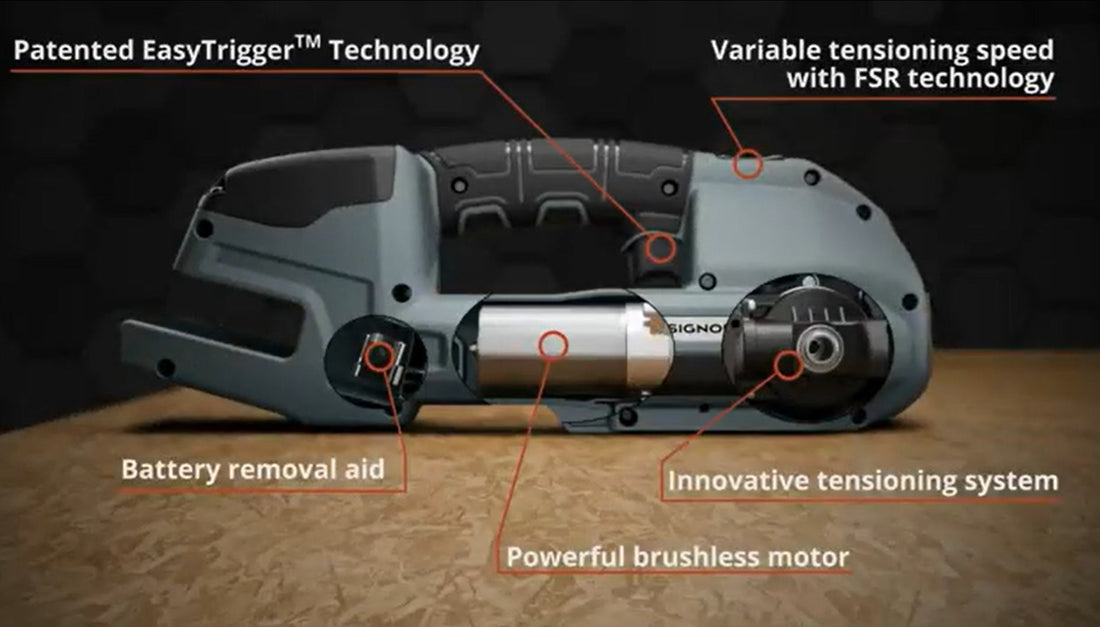

The BXT4 is the next-generation battery strapping tool for plastic strapping(Polyprop and PET strapping), featuring patented EasyTrigger™ Technology. Its advanced technology and ergonomic design are engineered to elevate your operations and seamlessly integrate into modern packaging processes. The simplified strapping process makes setting and operating the strapping tool an absolute breeze.
Strapping Operation
Requirements
- The device is set up for the width of the strap to be used.
- A charged battery is inserted.
- The required operating mode has been set up.
- The required tensioning force has been set up.
- The required welding time has been set up.
Set the operating mode
Guide the strap around the packaged goods.
With your left hand, grip the straps at the top of the packaged goods so that:
- The straps are on top of one another.
- The start of the strap is at the bottom. Approx 15cm should protrude beyond your hand.
Hold the device with your right hand.
Operate the trigger.
- The tensioning mechanism opens.
Insert the layers of strap as far as they will go. The strap coming from the dispenser should be on the top.
Release the trigger
- The straps are clamped in the tensioning mechanism.
- The front end of the strap should protrude by approx 5cm.
Press the tension button - Strap is tensioned until the required tension is reached.
Release the strap using the trigger button.
Checking the seal
Check the seal with a visual check
- Good sealing (the entire sealing surface has been correctly welded without excess material being pressed out to the side).
- Poor sealing (the sealing does not extend over the entire sealing surface), the set welding time was too short.
- Poor sealing (excess material is pressed out to the side), the set welding time was too long.
If the strap is poorly welded:
- Check the welding time setting (chapter 4.6).
- Strap the packaged goods again.
- Check the quality of the strap (chapter 7).- If you are unable to achieve a good sealing, the device must be checked by the service departments.
Setting the strap widths
The device can be operated with the following strap widths:
XBXT4-16: 12-13mm, 15-16mm
XBXT4-19: 15-16mm, 18-19mm
See manual for required parts and instructions to convert setting widths.
