Synthesi 2000kg Capacity Pallet wrapper XF-3110

Synthesi 2000kg Capacity Pallet wrapper XF-3110

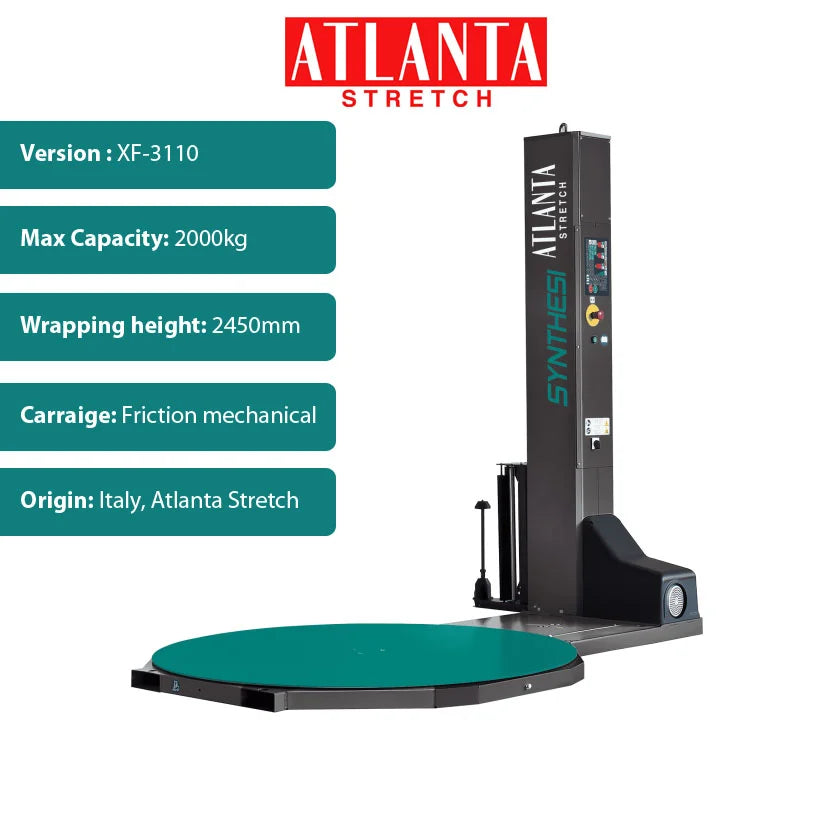

The Synthesi is a 2000kg capacity pallet wrapper. Built in Italy by Atlanta stretch, its a robust and simple machine.

Enquiry Form

View full details

Atlanta Stretch Pallet wrappers

MPS Packaging sell pallet wrappers from international brand and Italian manufacturer ATLANTA STRETCH. ATLANTA STRETCH pallet wrappers are used throughout the world and known for their robustness, low maintenance and low cost of ownership.

MPS buy direct and sell direct, offering end users an unbeatable price for a high quality Italian made pallet wrappers.

SEMI -AUTO PALLET WRAPPER

The Synthesi is a 2000kg Pallet wrapper, produced in Italy by ATLANTA STRETCH. it features 2000kg capacity turntable with heavy duty motor and gearbox. The Synthesi features and easy to use but durable panel with enough settings to adjust the machine to your desired wrapping settings.

PALLET WRAPPER DEMO

This video show the Synthesi pallet wrapper, been used with our HAX925 machine pallet wrap, With the synthesi friction brake we're able to get the tension exceptionally tight. You will see as the carriage goes up, every 40cm it pauses for 1 extra rotation, this is because we have enabled an additional reinforcement mode.

Use of industrial Components

Industrial design & Components

Atlanta stretch build machines with ease of replacement parts in mind. where possible they use commercially available industrial components. Current machines use Siemens inverters and the power supply and buttons are all generic.

safe for all

Fully enclosed mast design

Atlanta stretch build machines with a fully enclosed mast design, this means that all components for the carriage to operate are inside the mast, the upper and lower limit switches, the chain, cable loom, microswitches and the main bearings of the flange are all internal.

This internal design design means there is less chance of components failing due to dust or moisture, they cant be knocked and people cant get their fingers in there.

component comparison

Heavy duty gearbox

The gearbox and motor to the left is from an Atlanta stretch synthesi or Mytho, the one to the right is used by other importers of Italian made wrappers.

Just been Italian made does not insure quality, the components selected and engineering behind the machine does.

Generic components for high ware buttons

Industrial buttons

The Synthesi makes use of industrial buttons for the high use start, stop, enabling, main isolator and emergency stop. these buttons are quick and easy to replace if they ware out or break and easily obtainable from your local electronics supplier.

Atlanta stretch don't try to lock you into using their parts and buttons. Their goal is to build a robust machine with low service requirements in mind.

Visit our pallet wrapper showroom

Dedicated pallet wrapper showroom

If you want to compare models up close, that's no problems, we have a dedicated showroom where we have a range of models setup for comparison,

Feature Summary

  • Large Industrial start stop buttons
  • Friction Brake with roller. 0-100% Stretch.
  • Automatic pallet Height detection
  • 3 Fully adjustable Auto programs, Plus manual mode of operation.
  • Range of adjustable parameters, see below for complete list.
  • 2000kg Capacity
  • 2450mm Wrapping height
  • 1650mm diameter turntable for Australian and export pallets.

BASIC CYCLES SELECT-ABLE FROM CONTROL PANEL:

  • Double cycle (Normal up and down wrapping)
  • Single cycle (Wrap only upwards or only downwards)
  • Top sheet cycle(pause at top)
  • Reinforcement cycle when holding in banding button
  • Manual mode by pushing up and down carriage
  • Push-buttons for manual function
  • Wrap to preset wrapping height(Height photocell off)
  • Preset start and stop height

Synthesi Video info

  • 2021 Build Synthesi in old yellow and grey colours
  • Using function 61, carriage reset to middle height on stop. (shows delayed start, can be disabled)
  • Uses FM, friction brake, as per specs on this page.
  • Using MPS vented film
  • No bottom wraps, as per customers request, can be set to 0-9.
  • in slow rotation speed for stability
  • Uses minimal overlap, can be increased or decreased.
  • Machine is in top ascent only mode

TECHNICAL FEATURES:

  • Base-frame turntable height 75mm
  • Load height sensing photocell and altimeter (without photocell with pre-set height)
  • Acceleration / Deceleration ramps controlled by frequency changer
  • Spool carriage upwards/downwards speeds controlled by frequency changer
  •  Safety carriage foot protection
  •  Beeper at cycle start and phase stopping at cycle end
  • Emergency mushroom & reset push-button according to latest CE Norms
  •  Adjustable change coil, carriage service height
  • Safe enclosed mast design with chain drive.
Power
Total installed power
1.75KW Inc.
Standard input voltage
230V mono-phase – 50/60 Hhz 10AMP
Outlet
AU standard 10 amp plug
Turntable Diameter
Ø 1650 mm
Max Weight
2000kg
Wrapping height
and 2450mm

Settings adjustable

  • Bottom wraps amount of wraps
  • Top wraps amount of wraps
  • Turntable rotation speed
  • Carriage speed going up (Changes amount of wrap applied to pallet)
  • Carriage speed going down (Changes amount of wrap applied to pallet)
  • Amount of stretchwrap applied to top of pallet

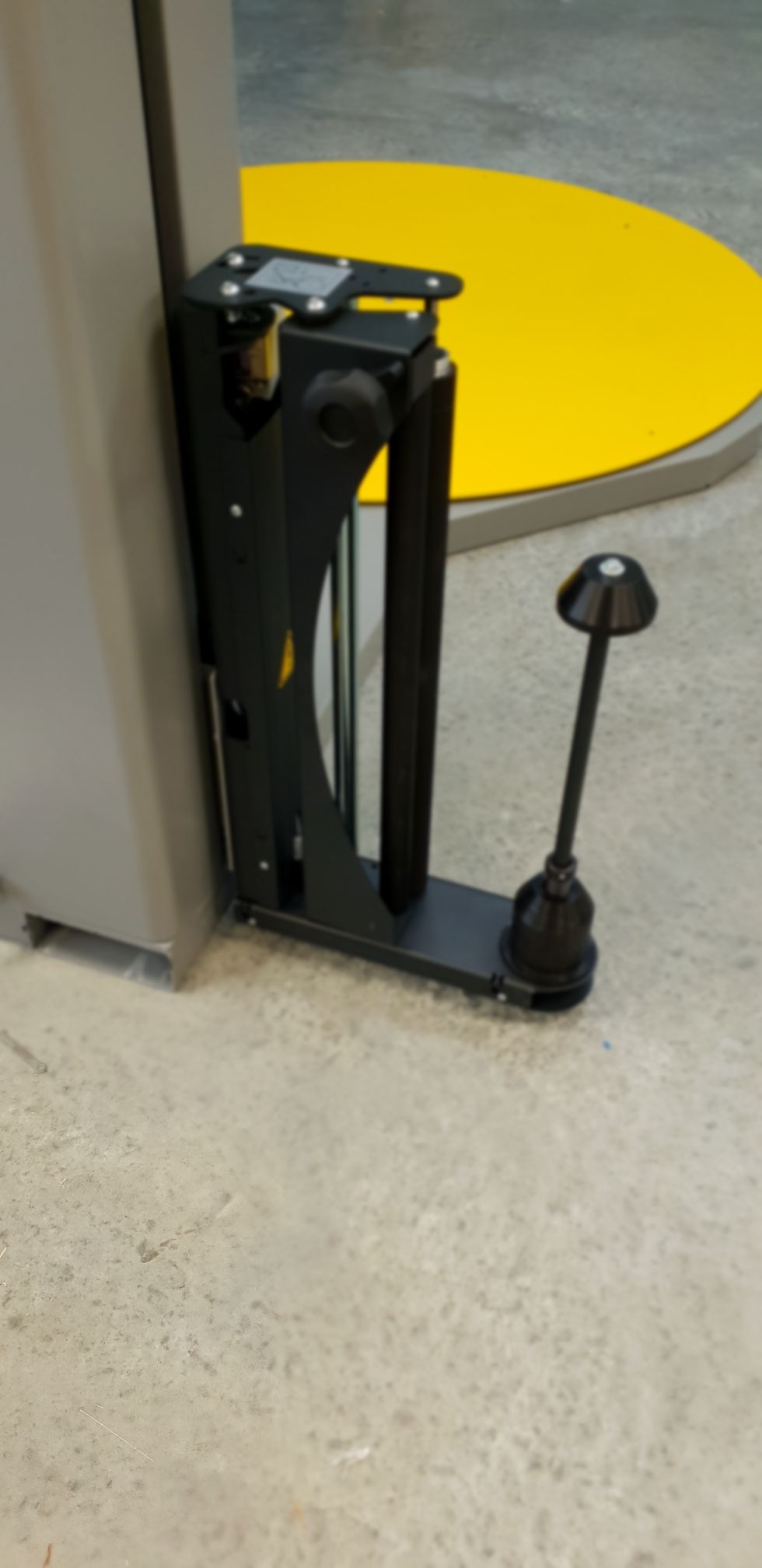

FILM CARRIAGE FEATURES:

The Eva as standard is available with a friction mechanical brake.

  • Adjust film braking by manual Knob
  • Uses standard or prestretched machine film
  • Safety foot crush device under carriage
  • Mounted on opposite side to the control panel to keep users clear of it during operation

Synthesi pallet wrapper demos

Synthesi features the same control options as eva & MORE!

Download

MPS Brochure Download
Brochure overseas version Download
Layout (use 1650mm turntable) Download
Manual Download
