If you've been researching prestretch pallet wrapping machines, you've probably come across the term powered prestretch. It is one of the biggest advancements in pallet wrapping technology and can dramatically reduce stretch film consumption while improving load containment.
However, many people assume all powered prestretch systems are the same. In reality, there are two completely different technologies working together inside a powered prestretch carriage.
The first is the prestretch ratio, which determines how much the film is stretched before it reaches the pallet. The second is the force to load, which controls how tightly the film is applied to the product.
Understanding the difference between these two systems is essential when comparing pallet wrappers, as two machines may both advertise powered prestretch while delivering completely different wrapping performance.
Prestretch Ratio – How Much the Film is Stretched
Powered prestretch works by stretching the film before it reaches the load. Unlike friction brake systems, where the pallet pulls the film from the roll, powered prestretch uses two driven rollers.
The first roller feeds the film into the carriage, while the second roller rotates at a higher speed. Because the second roller is spinning faster, the film stretches between the two rollers before being applied to the pallet.
This means the pallet receives stretched film rather than having to pull and stretch it itself. The result is lower film usage, more consistent wrapping, and significantly less force being applied to the load.
For example:
- 100% prestretch turns 1 metre of film into 2 metres.
- 200% prestretch turns 1 metre into 3 metres.
- 250% prestretch turns 1 metre into 3.5 metres.
- 300% prestretch turns 1 metre into 4 metres.
Higher prestretch ratios can dramatically reduce film consumption, but only when using a quality machine and suitable stretch film.
Fixed Mechanical Prestretch

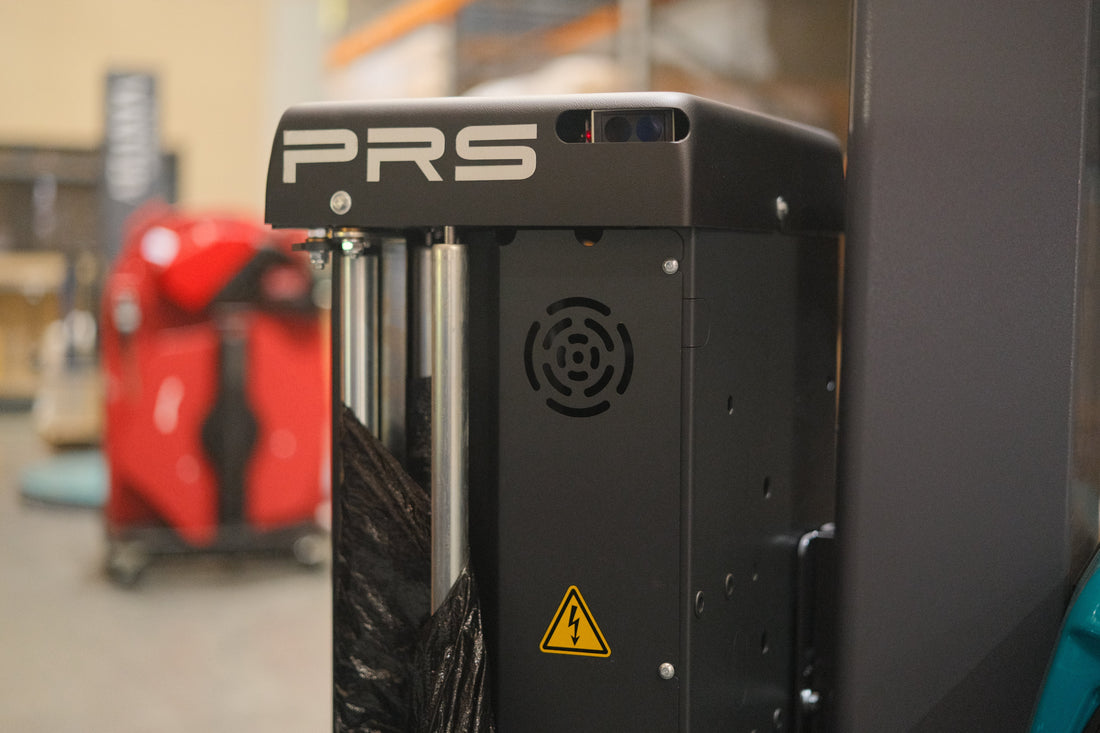

Img of Atlanta PRS prestretch carriage gears and belt
The most common powered prestretch system uses a mechanically fixed ratio.
Inside the carriage, gears or pulleys determine the speed difference between the two rollers. Changing the prestretch ratio usually involves replacing gears, moving belts to different pulleys, or selecting one of several factory-set gear combinations.
Common ratios include:
- 150%
- 200%
- 250%
- 300%
Once selected, the ratio remains fixed until it is mechanically changed again.
This design is extremely reliable because it uses a single drive motor and mechanical gearing. It provides excellent consistency and is found on many quality European pallet wrappers, including much of the Atlanta Stretch range.
Variable Powered Prestretch
Some premium pallet wrappers offer variable powered prestretch.
Rather than relying on gears, these machines use two independently controlled motors. The machine's control system varies the speed of the second roller electronically, allowing the prestretch ratio to be adjusted directly from the touchscreen.
This allows operators to increase or decrease film stretch depending on the product being wrapped.
For example, a fragile load may require less prestretch to avoid overstretching the film, while strong, stable products may benefit from higher prestretch to maximise film savings.
Because everything is electronically controlled, the machine can change settings instantly between different wrapping programs without any mechanical adjustments.
Variable prestretch is generally found on higher-end industrial pallet wrappers where multiple products or packaging requirements are common.
Heres a video of one
Prestretch Ratio is Only Half the Story
Many buyers focus entirely on the advertised prestretch ratio.
You'll often see machines advertised as offering 250%, 300% or even 400% prestretch.
While this sounds impressive, the prestretch ratio only tells you how much the film is stretched inside the carriage.
It tells you absolutely nothing about how the machine controls the film tension once it reaches the pallet.
This is where force to load becomes equally important.
What is Force to Load?
Force to load is the amount of pulling force applied between the pallet wrapper and the pallet itself.
If the force is too high, cartons can crush, soft products can deform, and lightweight pallets may become unstable.
If the force is too low, the load may not be securely contained during transport.
A quality powered prestretch carriage continually manages this force so that film tension remains consistent regardless of pallet size, corners, or changes in wrapping speed.
There are three main ways manufacturers achieve this.
1. Microswitch Controlled Systems
The simplest powered prestretch carriages use a moving dancer roller fitted with a microswitch.
As the pallet pulls on the film, the roller moves backwards against a spring.
Once it reaches a certain position, the microswitch activates the motor. When the roller returns, the switch turns the motor off again.
The motor is effectively cycling between ON and OFF throughout the wrapping process.
Most machines still include a potentiometer that adjusts how much power is supplied to the motor, allowing the operator to increase or decrease the overall wrapping force.
This system is reliable and relatively inexpensive, but because the motor is constantly switching on and off, film tension is not as smooth as more advanced systems.
2. Hall Sensor (Hall Card) Systems
A more advanced solution replaces the microswitch with a Hall effect sensor, often referred to as a Hall card.
Rather than simply detecting whether the roller has reached a particular position, the magnetic sensor continuously measures the movement of the dancer roller.
Instead of switching the motor fully on or off, the controller continuously adjusts the voltage supplied to the motor based on the roller position.
The result is much smoother film delivery and significantly better tension control.
The operator still sets the desired force using a potentiometer or machine settings, but the Hall sensor constantly fine-tunes the motor output to maintain that target.
This creates:
- Smoother wrapping
- More consistent film overlap
- Better corner performance
- Reduced film breakages
- Improved containment on irregular loads
Many premium European pallet wrappers use Hall sensor technology because it offers excellent performance while remaining relatively simple to maintain.
3. Load Cell Controlled Systems
The last system uses use a load cell.
Instead of measuring roller movement, the machine directly measures the tension force being applied to the film.
Because the load cell provides continuous force feedback, the carriage can make adjustments to maintain constant film tension throughout the wrapping cycle.
The result is exceptionally smooth wrapping and highly accurate load containment.
Â
The Maintenance Trade-Off
While load cells deliver outstanding performance, they also introduce additional maintenance costs.
Over time, load cells naturally fatigue and require replacement as part of normal servicing.
Depending on the machine, replacing a load cell can cost several hundred dollars, with complete replacements often approaching $700 or more.
By comparison, the springs used in microswitch and Hall sensor systems typically cost less than $20, making them inexpensive and straightforward to maintain.
For many businesses, this makes Hall sensor technology an excellent balance between wrapping performance, reliability and long-term ownership costs.
Powered Prestretch vs Friction Brake
It is also important to remember that powered prestretch is fundamentally different from a friction brake carriage.
A friction brake simply resists the film as it leaves the roll, forcing the pallet to stretch the film itself. This increases the force applied to the load and generally results in higher film consumption.
Powered prestretch stretches the film inside the carriage before it reaches the pallet. The carriage controls the delivery of the film, allowing the machine to achieve significant film savings while applying much lower forces to the load.
For many operations, upgrading from a friction brake carriage to a powered prestretch system can reduce film usage by 30–60%, depending on the application and film quality.
Which System is Best?
There is no single answer, as every application is different.
A mechanically geared powered prestretch carriage offers outstanding reliability and excellent film savings for most warehouses.
Variable prestretch provides additional flexibility where different products require different wrapping recipes.
For force-to-load control, a basic microswitch system is perfectly adequate for general applications, while Hall sensor systems provide noticeably smoother performance and improved load consistency. Load cell systems offer the highest level of precision but come with greater long-term maintenance costs.
At MPS Packaging Australia, we help customers select pallet wrappers based not only on advertised prestretch percentages but also on the technology behind the carriage. Understanding how a machine stretches film and how it controls film tension is the key to reducing stretch film costs, improving load stability, and achieving the best long-term return on investment.
Frequently Asked Questions
Is a higher prestretch percentage always better?
Not necessarily. Higher prestretch ratios reduce film usage, but the stretch film must be capable of achieving that level of elongation. The wrapper must also maintain consistent force-to-load control to prevent film breaks and poor load containment.
What is the difference between prestretch ratio and force to load?
Prestretch ratio determines how much the film is stretched inside the carriage. Force to load determines how tightly that stretched film is applied to the pallet. Both are essential for achieving optimal wrapping performance.
Can powered prestretch reduce film costs?
Yes. Depending on the machine, film quality and application, powered prestretch can significantly reduce stretch film consumption compared to traditional friction brake systems.
Why do premium pallet wrappers cost more?
Higher-quality machines often use better drive systems, polyurethane rollers, Hall sensor or load cell technology, commercial-grade motors, and advanced electronics. These components improve wrapping consistency, reduce downtime, and generally provide a longer service life.
