PROFIL- AUTOMATIC WRAPPER FOR PROFILES AND MOULDINGS

PROFIL- AUTOMATIC WRAPPER FOR PROFILES AND MOULDINGS

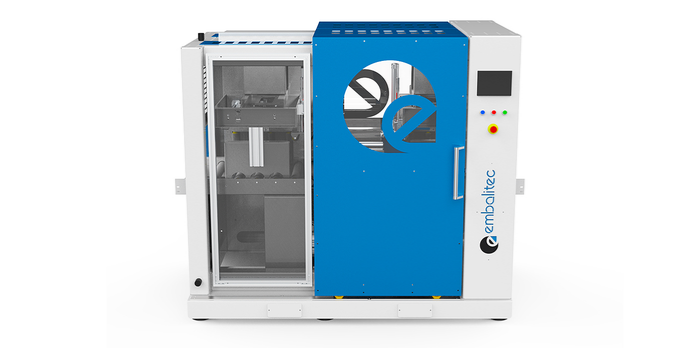

The automatic stretch wrapper for profiles and mouldings, equipped with a rotating ring for horizontal film application, is a specialised solution designed to optimism the packaging of elongated products in industrial environments.

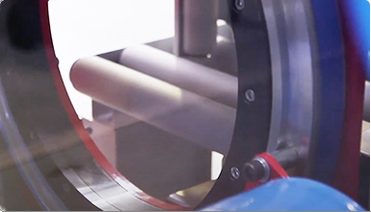

The rotating ring applies stretch film horizontally around the product, ensuring uniform coverage, consistent tension, and effective protection throughout the wrapping process. This automated system streamlines the packaging of profiles and mouldings, increasing productivity while delivering reliable and repeatable wrapping quality. It provides secure product protection and efficient handling, supporting smooth operations across the supply chain.

*Please contact for price

In stock

Enquiry Form

Contact us Please contact us for wholesale pricing or freight discounts for larger orders.
Contact us
View full details

MPS Packaging

MPS Packaging is a wholesaler, importer and distributor. MPS values High quality products for the upmost reliability and safety. Since 1977 we have brought the best packaging products around the globe to our wholesale clients.

With the launch of our online store mpspack.com.au we’re now bringing those products online to everybody in Australia to easily access.

Operational steps

  1. Feeding and positioning - The profiles are transported to the rotating ring via motorised rollers. A photoelectric sensor detects the package and stops it in the precise wrapping position, while the horizontal gripping system securely holds and centres the load before it enters the ring
  2. Film application - The rotating ring applies the stretch film horizontally around the product, achieving a pre-stretch ratio of 200–300% for optimal film usage and load containment. Operating at speeds of up to 60 m/min (80 m/min in the HS model), the system precisely controls the number of wrapping turns and the packaging programme through an intuitive touchscreen interface.
  3. Film cut and exit - A pneumatic cutting head activates the blade to precisely cut the stretch film. A friction sealing unit then secures the film end, allowing the wrapped package to continue smoothly towards the discharge are









Characteristics

  • High-performance aluminium crown - Solid yet lightweight, the system enables highrotational speeds while maintaining precise control of the adjustable film overlap. It ensures smooth, wrinkle-free wrapping even at high production rates, delivering consistent quality and reliable performance.

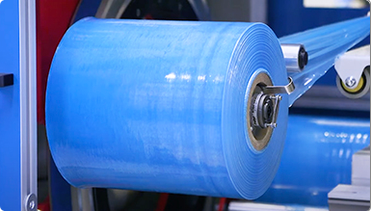

  • Reel holder with 200–300% pre-stretch - Differential rollers with mechanical adjustment optimise film consumption while improving load grip and ensuring a secure, stable wrapping process.
  • Adjustable wrapping speed - The system operates at speeds ranging from 14 to 60 m/min (up to 80 m/min in the HS version with double reel). Speed adjustment is managed directly through the PLC, allowing the machine to synchronise perfectly with the production line requirements.
  • PLC control with customisable programmes - An intuitive touchscreen interface with four standard recipes enables fast format changes and easy adjustment of wrapping parameters, including reinforcement turns and film overlap.





Customize options

  • Double reel in Model HS
  • Vertical entry rollers for automatic centring
  • Automatic vertical centring of crown
  • Acoustic-luminous indicator for film breakage or end
  • Profile downloader
  • Free roller conveyor
  • Motorised roller conveyor
  • Loader-unloader for free rollers profiles
  • Profile Unloader-Stacker
  • Free roller conveyor
  • Interconnection for peripherals or machines
