MPS Packaging Australia SKU: XF-4113

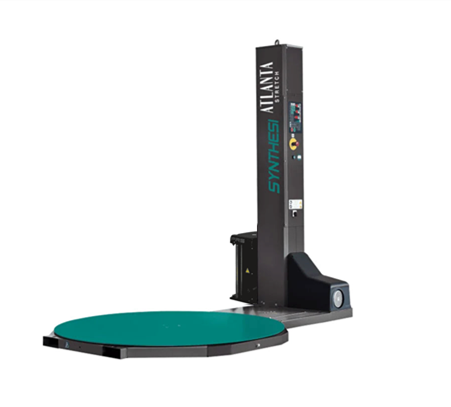

Synthesi Pallet wrapper XF-4113

Synthesi Pallet wrapper XF-4113

The Synthesi is a 2000kg Semi-automatic pallet wrapping machine with PRS powered prestretch. Built in Italy by Atlanta stretch, its a robust and simple machine.



Low stock

Enquiry Form

Made In Italy This product is made in Italy.
Forklift You will need a forklift to unload this
MPS Imported and distributed by MPS
Ships free to these Citys Price Includes, delivery to Melbourne, Sydney, Brisbane and Adelaide.
Install and training included Install and training included in Melbourne, Sydney, Brisbane and Adelaide.
Contact us Please contact us for wholesale pricing or freight discounts for larger orders.
Contact us
View full details

MPS Packaging

MPS Packaging is a wholesaler, importer and distributor. MPS values High quality products for the upmost reliability and safety. Since 1977 we have brought the best packaging products around the globe to our wholesale clients.

With the launch of our online store mpspack.com.au we’re now bringing those products online to everybody in Australia to easily access.

SEMI -AUTO PALLET WRAPPER

The Synthesi is a 2000kg Pallet wrapper, produced in Italy by ATLANTA STRETCH. it features 2000kg capacity turntable with heavy duty motor and gearbox. The Synthesi features and easy to use but durable panel with enough settings to adjust the machine to your desired wrapping settings.

PALLET WRAPPER DEMO

This video show the same PRS carriage, but equiped on Mytho S. The Synthesi XF-4113, will wrap pallets identically to this.

Feature Summary

  • Large Industrial start stop buttons
  • Friction Brake with roller. 0-100% Stretch.
  • Automatic pallet Height detection
  • 3 Fully adjustable Auto programs, Plus manual mode of operation.
  • Range of adjustable parameters, see below for complete list.
  • 2000kg Capacity
  • 2450mm Wrapping height
  • 1650mm diameter turntable for Australian and export pallets.

BASIC CYCLES SELECT-ABLE FROM CONTROL PANEL:

  • Double cycle (Normal up and down wrapping)
  • Single cycle (Wrap only upwards or only downwards)
  • Top sheet cycle(pause at top)
  • Reinforcement cycle when holding in banding button
  • Manual mode by pushing up and down carriage
  • Push-buttons for manual function
  • Wrap to preset wrapping height(Height photocell off)
  • Preset start and stop height

TECHNICAL FEATURES:

  • Base-frame turntable height 75mm
  • Load height sensing photocell and altimeter (without photocell with pre-set height)
  • Acceleration / Deceleration ramps controlled by frequency changer
  • Spool carriage upwards/downwards speeds controlled by frequency changer
  •  Safety carriage foot protection
  •  Beeper at cycle start and phase stopping at cycle end
  • Emergency mushroom & reset push-button according to latest CE Norms
  •  Adjustable change coil, carriage service height
  • Safe enclosed mast design with chain drive.
Power
Total installed power
1.75KW Inc.
Standard input voltage
230V mono-phase – 50/60 Hhz 10AMP
Outlet
AU standard 10 amp plug
Turntable Diameter
Ø 1650 mm
Max Weight
2000kg
Wrapping height
and 2450mm

Settings adjustable

  • Bottom wraps amount of wraps
  • Top wraps amount of wraps
  • Turntable rotation speed
  • Carriage speed going up (Changes amount of wrap applied to pallet)
  • Carriage speed going down (Changes amount of wrap applied to pallet)
  • Amount of stretchwrap applied to top of pallet

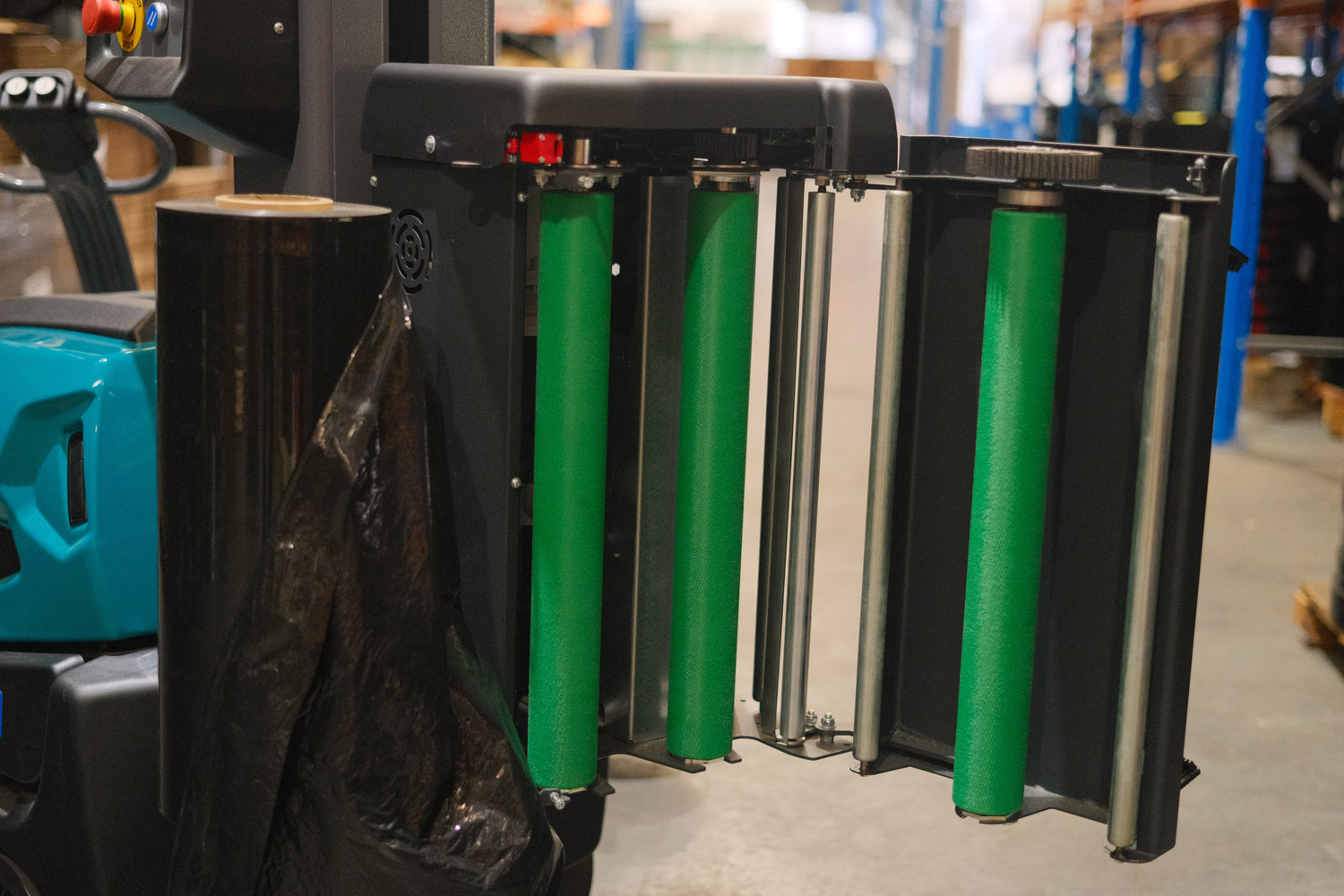

THE PRS POWERED PRESTRETCH CARRIAGE:

The PRS carriage is Atlanta Stretch’s powered prestretch system designed to maximise
stretch film efficiency while maintaining excellent load stability.

Unlike simple friction brake machines that only apply drag to the film roll, the PRS carriage uses motor driven rollers to mechanically stretch the film before it reaches the pallet.

This means the machine is not simply pulling the film tighter — it is actually stretching the film in a controlled way before application.

The result is two major benefits:

  1. Greater film yield from every roll
  2. More consistent film tension on the pallet

The PRS carriage used on the XF-4113 Synthesi can stretch 1 metre of film into approximately 3 metres, which equates to a 200% prestretch ratio.

The PRS carriage also uses polyurethane rollers, which last significantly longer than standard rubber rollers.

Download

MPS Brochure Download
