MPS Packaging Australia SKU: XITI 40

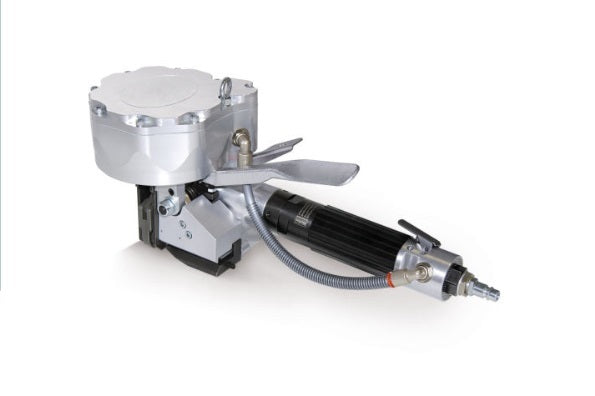

SINGLE NOTCH PNEUMATIC STEEL STRAPPING TOOL - XITI 40

SINGLE NOTCH PNEUMATIC STEEL STRAPPING TOOL - XITI 40

ITI 40 is a combined single-notch, Italian made pneumatic steel strapping tool designed for 13 mm, 16 mm, and 19 mm steel straps. It delivers fast, reliable, and consistent strapping performance for a wide range of industrial applications.

The tool is size specific due to jaws, the tool must be ordered as the strapping width.

In stock

Enquiry Form

Contact us Please contact us for wholesale pricing or freight discounts for larger orders.
Contact us
View full details

MPS Packaging

MPS Packaging is a wholesaler, importer and distributor. MPS values High quality products for the upmost reliability and safety. Since 1977 we have brought the best packaging products around the globe to our wholesale clients.

With the launch of our online store mpspack.com.au we’re now bringing those products online to everybody in Australia to easily access.

ITI-40 Pneumatic Steel Strapping Tool

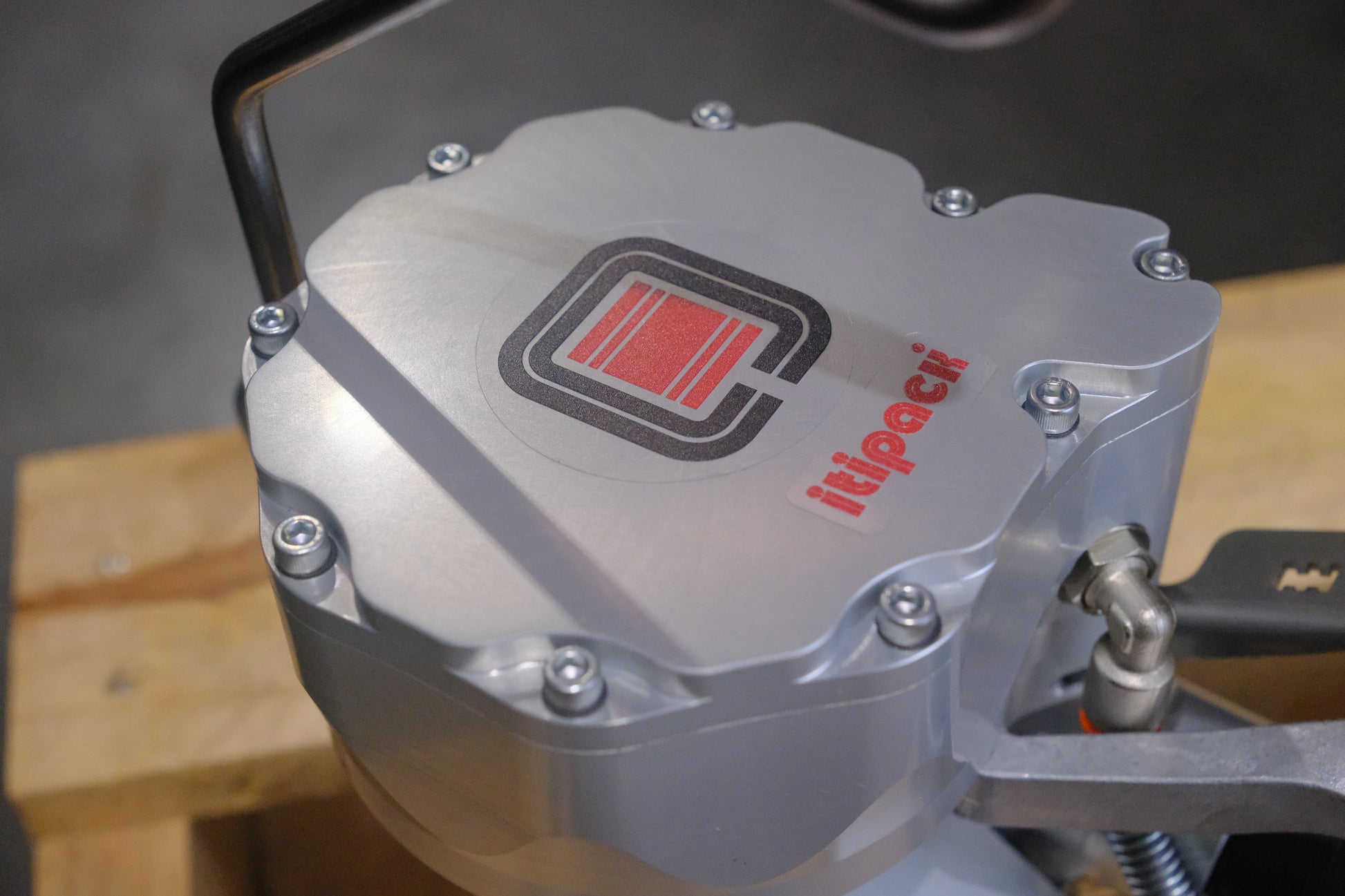

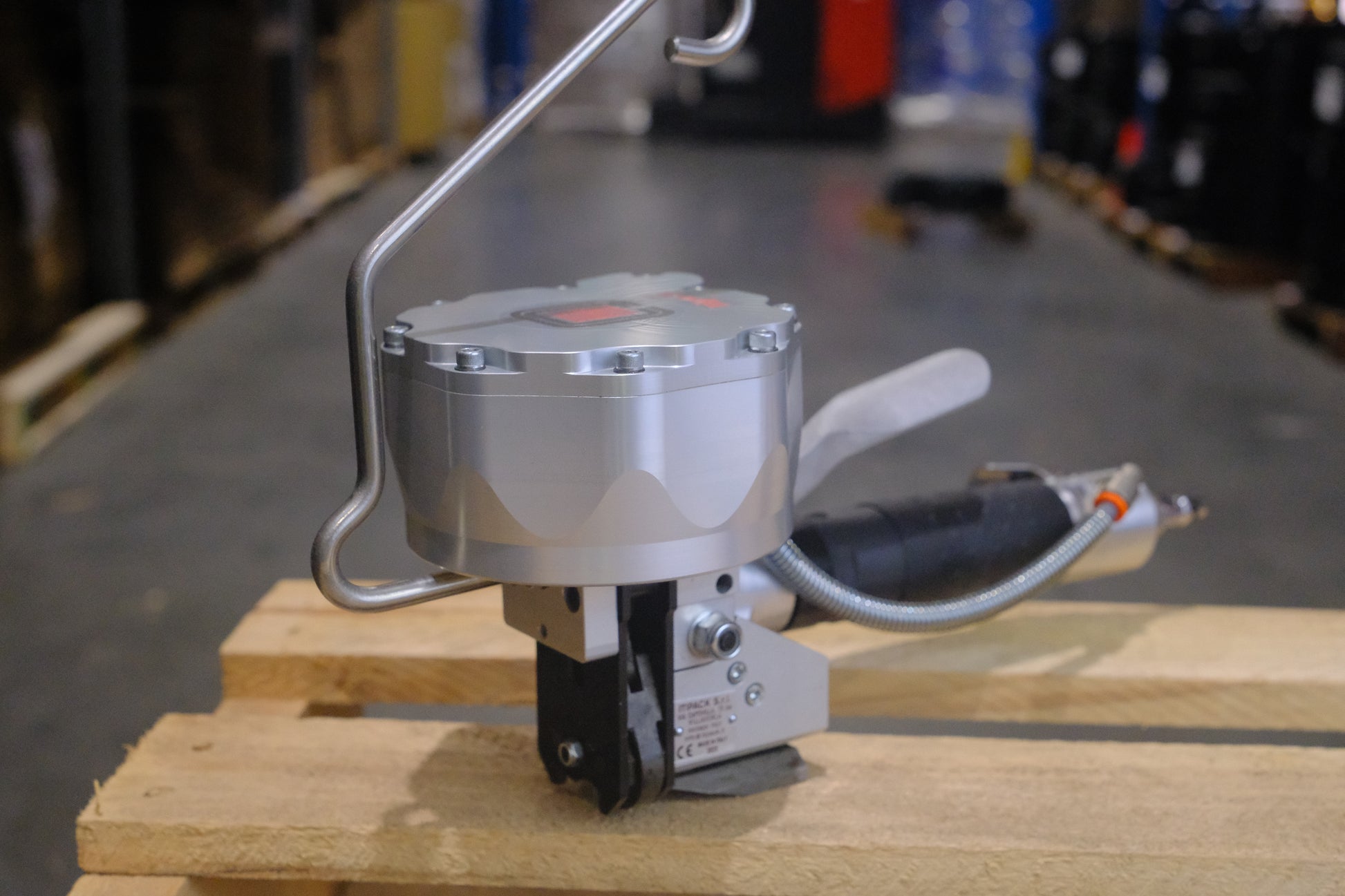

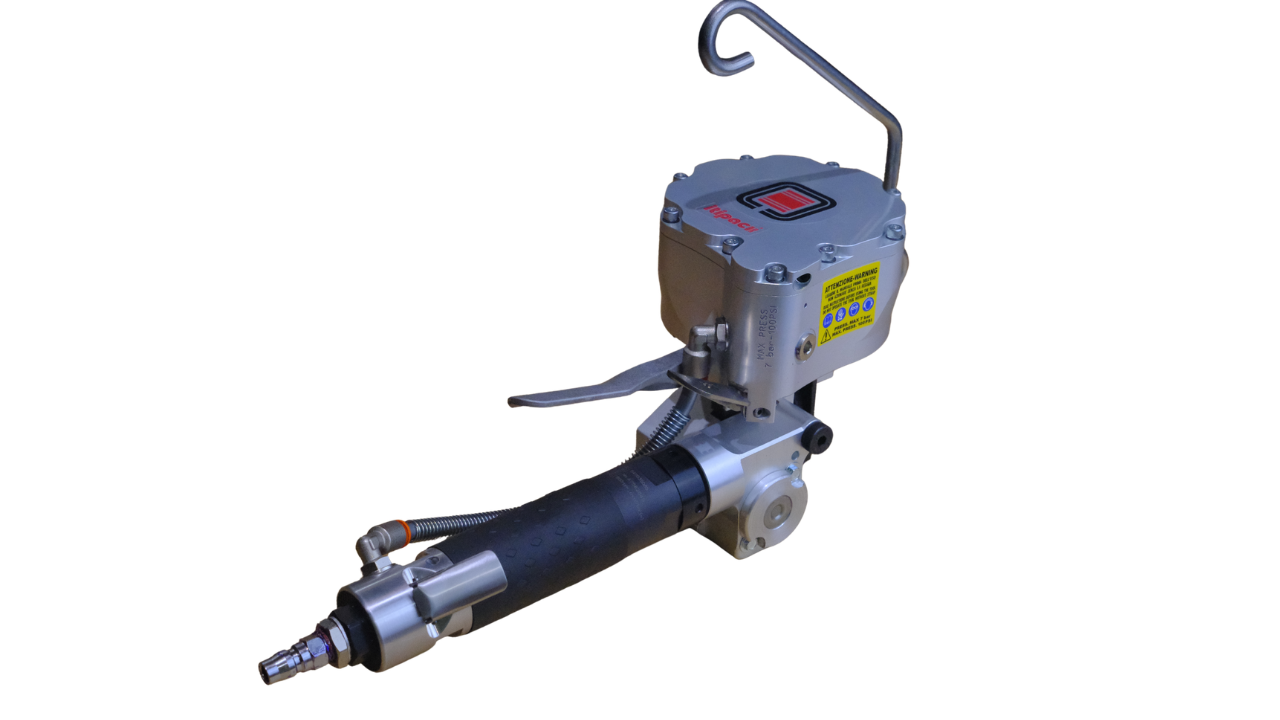

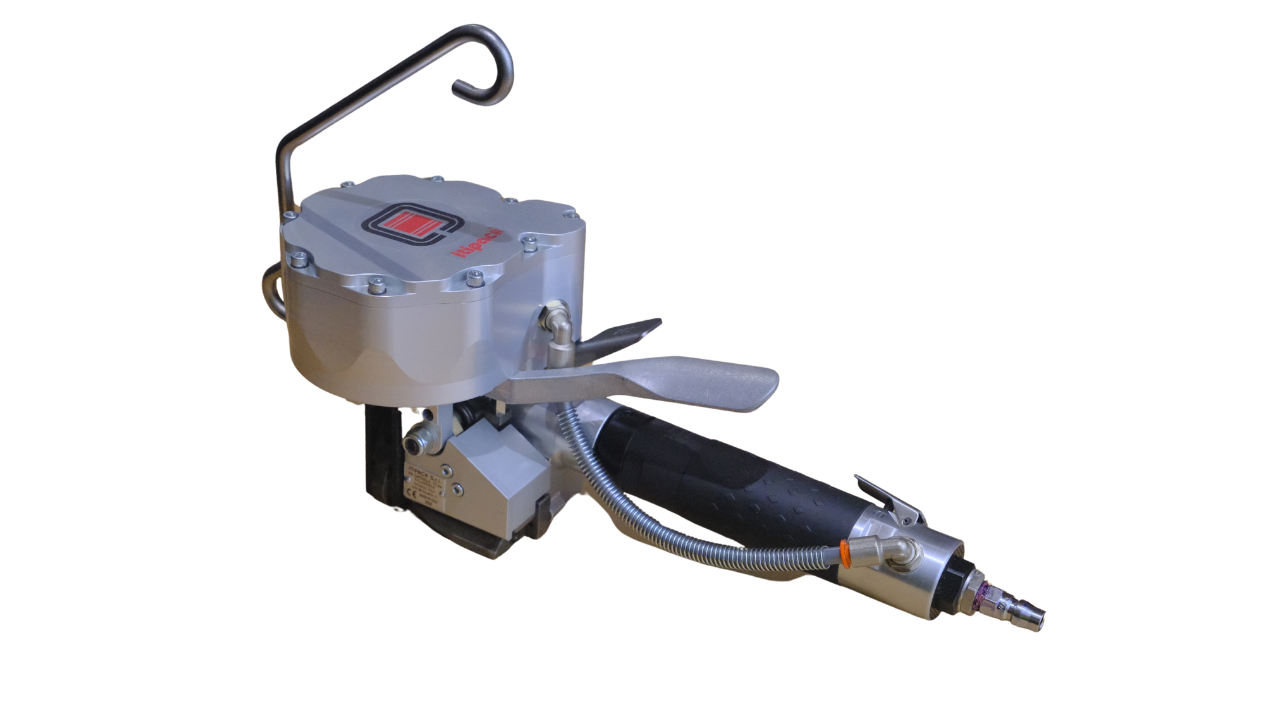

The ITI-40 Pneumatic Steel Strapping Tool is a heavy-duty industrial strapping tool from Italian manufacturer Itipack, designed for demanding steel strapping applications where strength, reliability and repeatable performance are essential.

As part of Itipack’s range of pneumatic steel strapping tools, the ITI-40 is particularly suited to industrial environments where steel strap is used continuously throughout the working day. Pneumatic operation makes it an excellent option for fixed packing stations, production lines and heavy-duty applications where an air supply is already readily available.

ITI-40 FEATURES

  • The ITI 40 is available in three motor versions—2,000 N, 5,500 N, and 7,500 N—allowing you to select the most suitable and adjustable tensioning force for your specific application. and 3 different widths. 13mm, x 16mm and 19mm
  • Lightweight, powerful, and easy to operate,
  • The tool is built for durability while requiring minimal maintenance

Why Choose a Pneumatic Steel Strapping Tool?

While battery-powered steel strapping tools have become increasingly popular, pneumatic tools continue to be widely used in heavy industrial applications.

For businesses performing repetitive strapping in the same location, pneumatic tools can offer several advantages. There is no battery to recharge, they are suited to frequent operation, and their comparatively simple pneumatic systems can make them robust and serviceable in demanding environments.

This makes the ITI-40 particularly worth considering where steel strapping is performed continuously rather than occasionally.

ITI-40 – A Pneumatic Pusher Steel Strapping Tool

The ITI-40 is a pneumatic pusher-style steel strapping tool, designed for demanding applications where high tension and reliable steel strapping performance are required. Unlike conventional feedwheel tensioners that grip and pull the strap through the tool, a pusher tensioner is designed to tension the steel strap by pushing the tensioning mechanism forward against the seal and load.

This pusher-style design is particularly useful on round, irregular and heavy industrial loads. It allows the tool to work effectively where a conventional flat-package tensioner may be difficult to position or where extremely high strap tension is required. This makes the ITI-40 particularly well suited to steel, engineering, timber and other heavy industrial applications.

ITI-40 TECHNICAL INFO

The ITI-40 come in 3 different size widths.

13, 16mm and 19mm

and 3 different tension ranges

12 mt/min (2000N) 5 mt/min (5500N) 4 mt/min (7500N)

TECHNICAL DATA - SINGLE NOTCH PNEUMATIC STEEL STRAPPING TOOL - XITI 40
LENGTH
350MM
WIDTH
140MM
HEIGHT
170MM
WEIGHT
4KGS
PRESSURE RANGE
5.5 -7 bar / 78 –99 psi
AIR CONSUMPTION
12 L/s – 25 cuft/min
MAX TENSION FORCE
7500N -6 bar-87psi
TENSION SPEED
12 mt/min (2000N) 5 mt/min (5500N) 4 mt/min (7500N)
SEALING
SEAL DOUBLE NOTCH
JOINET STRENGHT
and 75% of breaking strenght (VARABLE ON STRAP TYPE)

Pneumatic Power for Continuous Operation

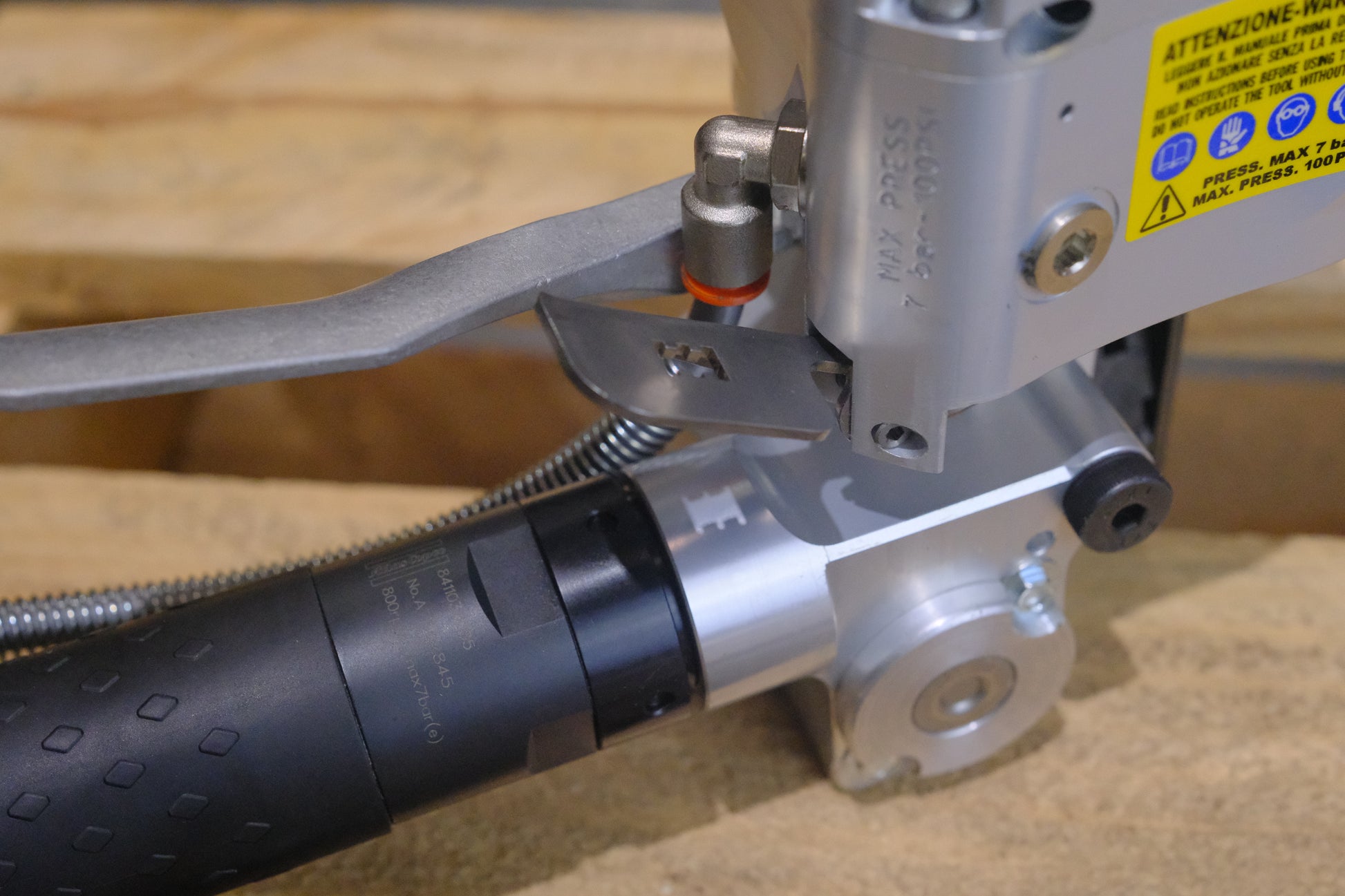

One of the major advantages of the ITI-40 is its pneumatic operation. Rather than relying on batteries that require charging and eventual replacement, the tool operates from compressed air.

For high-volume applications, this can make pneumatic strapping tools particularly attractive. Once connected to a suitable compressed-air supply, the tool is ready for continuous operation throughout a production shift.

Pneumatic tools are particularly well suited to steel yards, timber yards, manufacturing facilities and production lines, where the operator normally works within a defined strapping area and the restriction of an air hose is less important.

Built for Industrial Environments

Itipack specialises in industrial strapping equipment and has been producing strapping systems since 1970. Its equipment is developed around demanding applications including metal, timber, construction, paper and other industrial products.

This makes the ITI-40 a very different proposition from a light-duty general-purpose packaging tool. It forms part of a range intended for businesses where strapping is an integral part of securing heavy products for storage and transportation.
