MPS Packaging Australia SKU: XITI-20-0

BATTERY STRAPPING TOOL FOR PLASTIC STRAP WITH FRICTION WELD XITI-20

BATTERY STRAPPING TOOL FOR PLASTIC STRAP WITH FRICTION WELD XITI-20

The ITI20 battery powered strapping tool is a reliable, professional solution for tensioning, sealing and cutting PET and PP plastic strapping in one simple operation. Designed for everyday industrial use, the ITA20 combines strong tensioning performance with a consistent friction-weld seal, helping improve packing speed and load security. Its cordless design makes it ideal for warehouses, manufacturing facilities, timber yards, distribution centres and general palletising applications where a portable and easy-to-use strapping tool is required.

In stock

Enquiry Form

Contact us Please contact us for wholesale pricing or freight discounts for larger orders.
Contact us
View full details

The ITIPack, Italian made range of tools are imported and distributed by MPSPACK, known for their high durability and low maintenance ITIpack tools are the lowest cost of ownership tools on the market for high volume users.

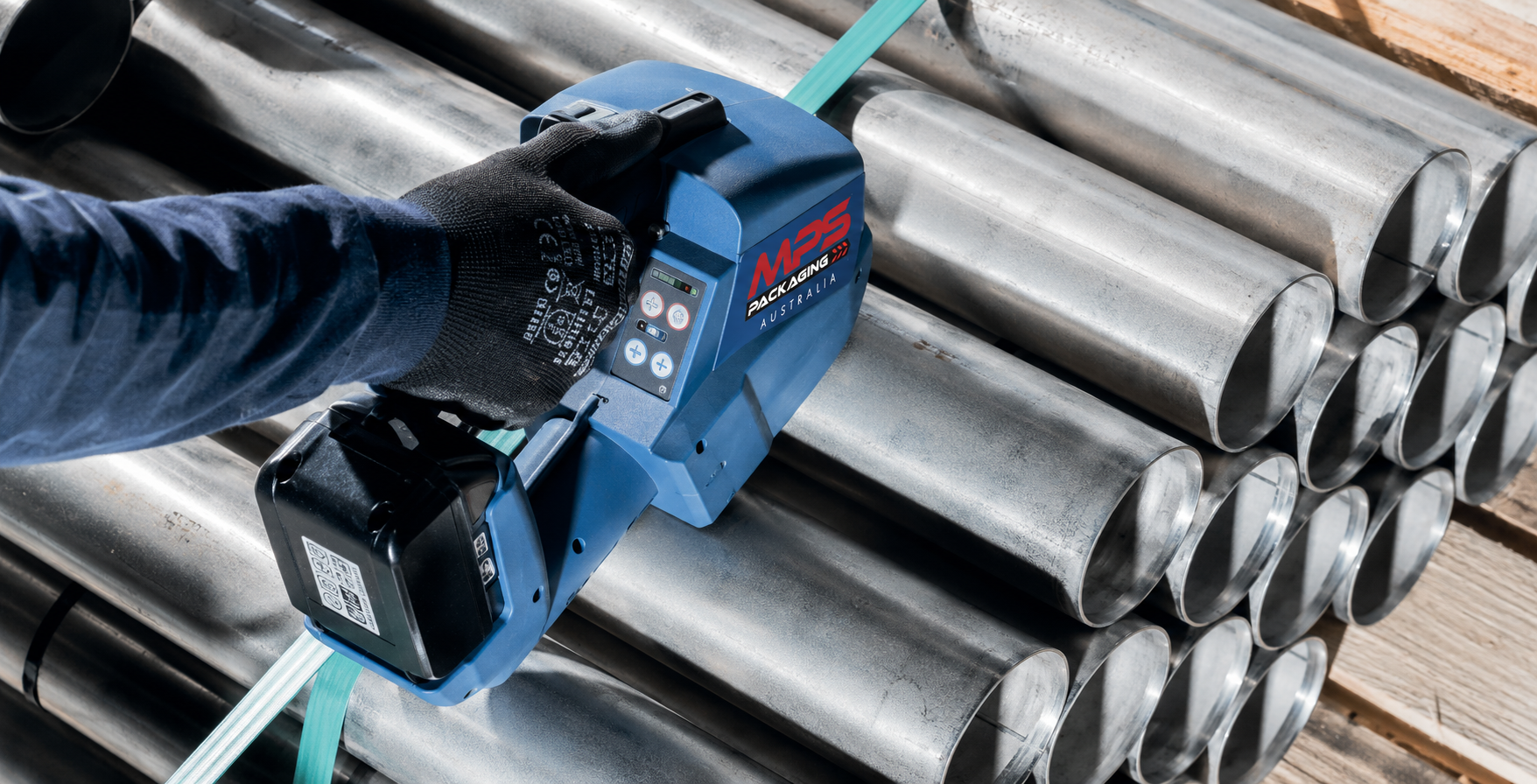

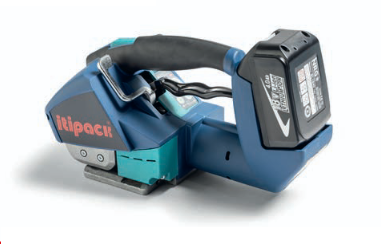

The ITI-20 Battery Powered Strapping Tool is a reliable and proven cordless strapping tool designed for 13mm and 16mm PET and PP strapping. Manufactured in Italy by ITIPACK, the ITI-20 combines tensioning, friction welding and strap cutting into one portable tool, making it an excellent choice for warehouses, manufacturing facilities, distribution centres and general pallet strapping applications.

Designed as a medium-to-low tension battery strapping tool, the ITI-20 delivers an adjustable tension force from 600N up to 2200N (approximately 60–220kg). This makes it particularly well suited to cartons, palletised goods, food and beverage products, glass and ceramics, fruit and vegetables, general manufacturing and other applications where consistent plastic strapping is required.

Rather than using separate tensioners, sealers and metal seals, the ITI-20 completes the strapping process with a single tool. The operator tensions the strap around the load before the tool friction welds the overlapping PET or PP strap together and cuts the excess strap, producing a strong and consistent joint without requiring a separate seal.

A Proven Italian Battery Strapping Tool

The ITI-20 is one of ITIPACK's best-known battery powered plastic strapping tools and has been used worldwide across a wide variety of industries.

Its popularity comes from its relatively simple design. Rather than loading the tool with unnecessary features, the ITI-20 provides the essential functions required for everyday PET and PP strapping in a compact and robust package.

At approximately 4kg including the battery, the ITI-20 is light enough for portable use around a warehouse or production facility while still providing up to 2200N of tension.

Adjustable Tension up to 2200N

Different products require different levels of strap tension. A lightweight carton does not require the same tension as a solid palletised load, which is why adjustable tension is important.

The ITI-20 provides a tension range of approximately 600N to 2200N, allowing the operator to select an appropriate tension for the product being secured.

This makes the ITI-20 particularly useful for lighter and medium-duty applications where excessive tension could crush or damage the product.

For very heavy-duty PET strapping applications requiring substantially higher tension, a larger battery strapping tool may be more appropriate. Such as the ITI-21 or ITI-23.

Friction Weld Technology – No Metal Seals Required

One of the biggest advantages of a battery powered PET strapping tool is that no separate metal seal is required.

After tensioning, the ITI-20 uses high-speed friction between the two overlapping layers of plastic strap. This generates enough heat to soften the surfaces of the PET or PP strap. The layers are pressed together and rapidly cool to create the finished joint.

This process is commonly known as friction welding.

The manufacturer specifies joint strength at approximately 75% of the breaking strength of the strap, although actual joint efficiency varies depending on the type, dimensions and quality of the strapping being used.

Removing metal seals from the process can reduce consumable costs while also making the strapping process considerably faster than using a traditional manual tensioner and sealer.

Suitable for 13mm & 16mm PET and PP Strapping

The ITI-20 is designed for use with:

  • 13mm PET strapping
  • 16mm PET strapping
  • 13mm PP strapping
  • 16mm PP strapping
  • Strap thicknesses from approximately 0.5mm to 1.05mm

This versatility makes the ITI-20 a good general-purpose tool for businesses using different grades of plastic strapping.

The tool can also be changed between compatible 13mm and 16mm strap sizes without replacing the strap guides, making it particularly convenient for businesses that use more than one strap width.

TECHNICAL DATA - BATTERY STRAPPING TOOL FOR PLASTIC STRAP WITH FRICTION WELD-XITI-20
LENGTH
290MM
WIDTH
140MM
HEIGHT
165MM
WEIGHT
3.8KG
BATTERY
18V 5AH LI-ION GENUINE MAKITA
TENSION FORCE
600N to 2200N
TENSION SEALING
12mt/m
SEALING
Friction Welding
JOINET STENGTH
and 75% of breaking strenght (VARIABLE ACCORDING TO STRAP TYPE)

ITI20 BENEFITS

  • High-efficiency and long-lasting 5AH Makita Battery
  • Uses friction weld seal technology that guarantees high seal efficiency, without requiring any seal.
  • Simple Manual Operating Mode

The ITI-20 operates in a manual operating mode, giving the operator direct control over the strapping process.

Its straightforward controls make it easy to introduce into an existing packing operation without unnecessarily complicating the strapping process.

For businesses moving from manual hand strapping tools into battery powered equipment, the ITI-20 provides a relatively simple transition while delivering significant improvements in speed and consistency.

Where Can the ITI-20 Be Used?

The ITI-20 is a versatile battery powered strapping tool suitable for a broad range of light and medium-duty strapping applications. It is commonly used for securing palletised cartons, cardboard boxes, bundled products and general pallet loads across warehouses, distribution centres and manufacturing facilities. Its adjustable tension makes it suitable for industries including food and beverage, fruit and vegetable processing, glass and ceramics, building products and general manufacturing where reliable PET or PP strapping is required.

For businesses currently using separate manual tensioners and sealers, upgrading to the ITI-20 can significantly improve packing efficiency. Tensioning, friction welding and cutting are all completed with a single cordless tool, reducing the number of steps required to secure each load. These productivity improvements become particularly noticeable for businesses applying dozens or hundreds of straps each day, while the consistent tension and weld settings can also help produce a more repeatable strapping result between operators.

Aluminium Base plate

The ITIPack range of battery strapping tools use an aluminum base plates. The base plate is lightweight, making the tool easier to handle, but also increasing its robustness. Most other tools use cast steel as for the base plate which is prone to cracking and more brittle than aluminum.

Twinmotor, Direct drive

The standard range of ITI tools use two independent motors to drive the tensioning and welding of the tool. This design does away with many complexities of the tool and expensive parts such as belt wheels, bevel pinion, planetary gears and increased microswitches from its design.

This reduced complexity reduces the maintence requirments and total cost of ownership of the tool.




LED Screen

The Standard range of ITItools battery strapping tools use a highly reliable LED screen which is simple to use, but also reliable to use in harsher environments.

Tension and welding settings are settable through the LCD screen along with displaying its strapping count for maintenance and error messages.

Manual welding lever

The ItIpack manual welding tool is one feature that makes that tools exceptionally reliable. With its reduced complexity, the tool does not require an extra servo motor to function, reducing the cost to you but also greatly reducing maintenance overtime.

Makita Powered

ITIPack tools when purchased through MPS are sold with genuine Makita batteries. Our batteries come with a 24 Month Battery warranty from Makita.

Long life feedwheel

ITIPack tools have proven to be the market leader in feedwheel life. As one of the main wearing parts of the tool, choosing a tool which has longer life parts will greatly reduce the cost of ownership of the tool.

ITIPack tools use a chisel style feedwheel rather than toothed style, this greatly adds to the life off the feedwheel.

Learn More boout ITIPack Tools

Aftersales support

To MPS a strapping tool sale isn't just a once off sale, its going to be over a decade long relationship for aftersales support, maintenance, service and parts.

Inhouse Strapping tool repairs and parts

When it comes to strapping tools, repairs are inevitable. But MPS believe in fast turn around for strapping tool repairs, So we employ inhouse technicians and stock spare parts to get your strapping again soon.

PET Strapping information

View all
  • Heavy-Duty PET Strapping in Action at a Melbourne Steel Manufacturer
    Posted

    Heavy-Duty PET Strapping in Action at a Melbour...

    Recently, we visited a large steel manufacturing and slitting facility in Melbourne where our 19mm Heavy Duty PET  is used daily to secure heavy steel coils. This site handles some of...

    Read More
    Posted

    Heavy-Duty PET Strapping in Action at a Melbour...

    Recently, we visited a large steel manufacturing and slitting facility in Melbourne where our 19mm Heavy Duty PET  is used daily to secure heavy steel coils. This site handles some of...

    Read More
  • Can I Cut Myself on PET Strapping?
    Posted

    Can I Cut Myself on PET Strapping?

    I was reading through Reddit recently, watching a demo of an Ergostrap packaging unit. While most people didn't quite grasp the functionality of the unit or left some confusing comments,...

    Read More
    Posted

    Can I Cut Myself on PET Strapping?

    I was reading through Reddit recently, watching a demo of an Ergostrap packaging unit. While most people didn't quite grasp the functionality of the unit or left some confusing comments,...

    Read More
  • The Myths of Smooth and Embossed Polyester Strapping
    Posted

    The Myths of Smooth and Embossed Polyester Stra...

    When it comes to polyester strapping, a question we're regularly asked is what’s the difference between smooth or embossed strapping? PET strapping differences are more than just width, length, thickness and finish...

    Read More
    Posted

    The Myths of Smooth and Embossed Polyester Stra...

    When it comes to polyester strapping, a question we're regularly asked is what’s the difference between smooth or embossed strapping? PET strapping differences are more than just width, length, thickness and finish...

    Read More
  • Custom Made PET Strapping
    Posted

    Custom Made PET Strapping

    MPS is a volume supplier of PET strapping in Australia. We call on multiple overseas manufacturing facilities so we can ensure you get the PET strap materials you want - in...

    Read More
    Posted

    Custom Made PET Strapping

    MPS is a volume supplier of PET strapping in Australia. We call on multiple overseas manufacturing facilities so we can ensure you get the PET strap materials you want - in...

    Read More
View all

Frequently Asked Questions

Why Choose the ITI-20?

For businesses that don't require the extreme tension capabilities of a heavy-duty PET strapping tool, the ITI-20 provides an excellent balance between weight, performance, simplicity and reliability.

With up to 2200N of adjustable tension, compatibility with both 13mm and 16mm PET and PP strap, friction-weld sealing and a compact Italian-made design, it is a versatile tool for everyday industrial strapping.

The ITI-20 is particularly well suited to businesses looking to move away from manual tensioners and sealers and into a faster, more consistent battery powered strapping system.

Updated 18V ITI-20

The ITI-20 has been a long-running model and has been supplied in different battery configurations over its production life. Earlier ITI-20 tools were supplied with a 14.8V Lithium-Polymer battery, while the latest ITA/ITI-20 generation has moved to a higher-capacity 18V 5Ah Lithium-Ion battery platform.

The updated version retains the proven 600–2200N tension range and 13/16mm PET and PP strap capability while providing a larger-capacity battery for a greater number of strapping cycles between charges.

When purchasing batteries or replacement components for an existing ITI-20, it is therefore important to identify which generation of the tool you have.

Battery Powered Convenience

Because the ITI-20 is completely cordless, the operator is not restricted by compressed-air lines or power leads.

This makes it particularly useful in warehouses where the strapping tool needs to move between different packing stations or where pallets are strapped in different locations throughout the facility.

Battery operation also makes the ITI-20 a practical alternative to pneumatic strapping tools for applications where installing and maintaining a compressed-air supply would be inconvenient.

ITI-20 Technical Specifications

Strapping Type: PET & PP Plastic Strapping
Strap Width: 13mm / 16mm
Strap Thickness: 0.5mm – 1.05mm
Minimum Tension: 600N
Maximum Tension: 2200N
Tensioning Speed: Approximately 12 metres per minute
Sealing Method: Friction Weld
Joint Strength: Up to approximately 75% of strap breaking strength, depending on strap
Operating Mode: Manual
Dimensions: Approximately 290 x 140 x 165mm
Weight: Approximately 3.9kg including battery on the original configuration
Controls: Digital Control Panel
Country of Manufacture: Italy
