MPS Packaging Australia SKU: XS-TP702-59

AUTOMATIC STRAPPING MACHINE TP-702-59

AUTOMATIC STRAPPING MACHINE TP-702-59

The TP-702 is a high-speed, world-class automatic strapping machine designed for 5mm, 6mm, 9mm, and 12mm PP strapping. Featuring industry-standard functions and innovative, user-friendly designs, it delivers exceptional performance, maximum speed, easy maintenance, and a highly cost-effective strapping solution.

Regular price $55,000.00
Sale price $55,000.00 Regular price
Sale Sold out
Tax included.
Contact us Please contact us for wholesale pricing or freight discounts for larger orders.
Contact us
View full details

Advantages

  • Compatible with 5mm, 6mm, 9mm and 12mm PP Strapping.
  • Durable and compact mechanical strapping head.
  • Rotatable control panel with LCD display.
  • Easy access strap guides (patented)
  • Convenient waist-high automatic strap feeding.
  • Quick and effortless waist-high coil change (patented)
  • Automatic strap ejector for seamless operation.
  • High-speed performance of up to 65 cycles per minute.

Key Features of TP-702

  • Sensor-Controlled Heater – Ensures fast, consistent, and high-efficiency sealing.
  • Low Voltage System – All DC motors and the heater operate at a reduced 24V for enhanced safety.
  • Strap End Ejector – Automatically removes the strap end from the feed inlet, simplifying cleaning and coil replacement.
  • Front Foot Bar Switch – Ergonomic design allows easy operation with a standard foot bar switch.
  • Dispenser Release Switch – User-friendly design enables effortless strap pulling for waist-high auto strap feeding.
  • Adjustable Table Height – Customizable between 820mm and 920mm for optimal ergonomics.
  • Turnable Control Panel – The LCD-equipped control panel is conveniently positioned for easy front and rear access.
  • Auto Strap Ejector – Automatically clears looped straps if the machine is accidentally activated without a package.

Options

  • Photo-eye switch
  • Rear foot bar switch
  • Foot pedal switch
  • Lower adjustable table height (770 mm - 820 mm)
Technical Data
Capacity
Up to 65 cycles/minute
Strap Width
5mm
6mm or 9mm
Tension Range
1-32 Kg
Weight
158 Kg
Electrical Requirements
and 110V
220C
230V
240V 50/80Hz 1PH

Loop Ejector

  • Auto loop ejector as standard
  • greatly reduces jamming on failed straps.
  • removes need to unjam manual
  • Removed need to refeed machine after jam
  • Saves multiples minuites per failed strap vs machines without loop ejector.

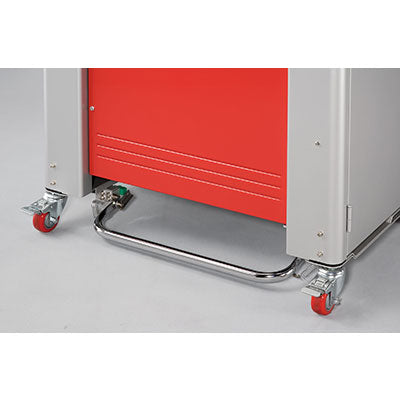

Foot bar sealing

  • Seal with large fixed foot bar
  • Much easier to sue than foot pedal
  • bar is across entire width
  • Easy for multiple users for left and right foot operation
