MPS Packaging Australia SKU: PPI5

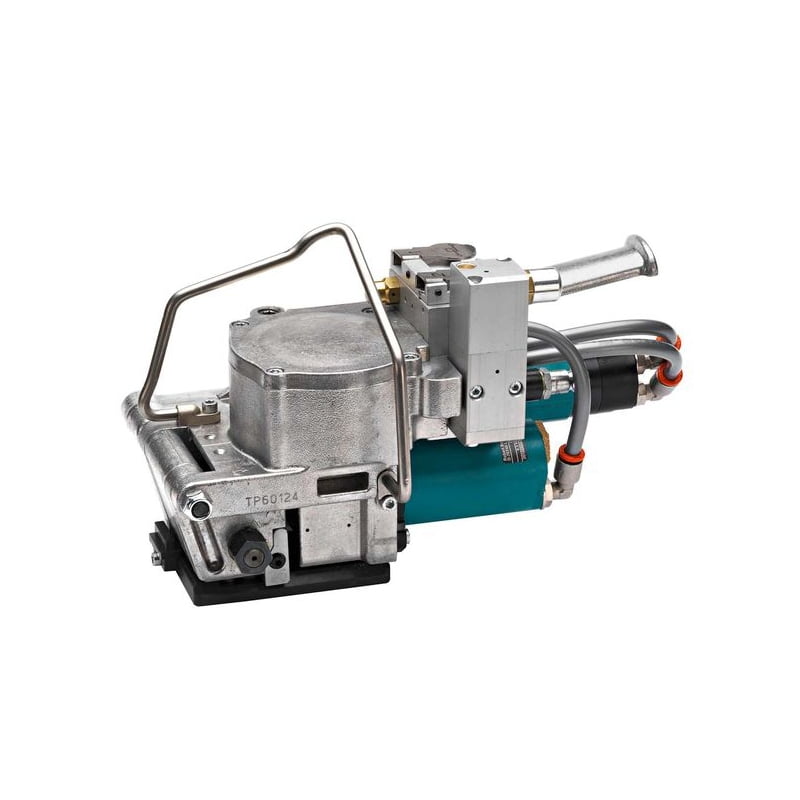

TP-500 Pneumatic Strapping tool

Pneumatic tools are robust and durable with a steel housing, they're the perfect tool for strapping in high production lines where reliability is important.

Product variants

Enquiry Form

View full details

The pneumatically operated TP hand-held tools from TITAN are particularly robust, reliable and resistant to external influences such as moisture, dirt and heat.

Thanks to its powerful pneumatic motors, the TP 500 achieves a tensioning force of up to 5,000 N at a strap thickness of up to 19 mm.

The mechanical display of the cooling time provides more comfort in harsh conditions. It is also reversible, which means that it is easy to remove the tool from the finished strapping.

TP 500 is perfectly suited for planar packages with sealless joint.

You can integrate the TP series optimally into the existing periphery. For a smooth changeover to PET strap.

Strap/Joint

Type of strap: Plastic strap
Strap: PET Strap
width: 0.63" (LT version only)0.63" ; 3/4 " (HT version)Strap thickness 0.039 - 0.050"

Kind of seal: Friction-weld joint

Technical Info

Tension

5000n

Drive

Pneumatic

Tension speed

19.7ft/min

Air

max 6.5 bar

weight

and 5.08kg
