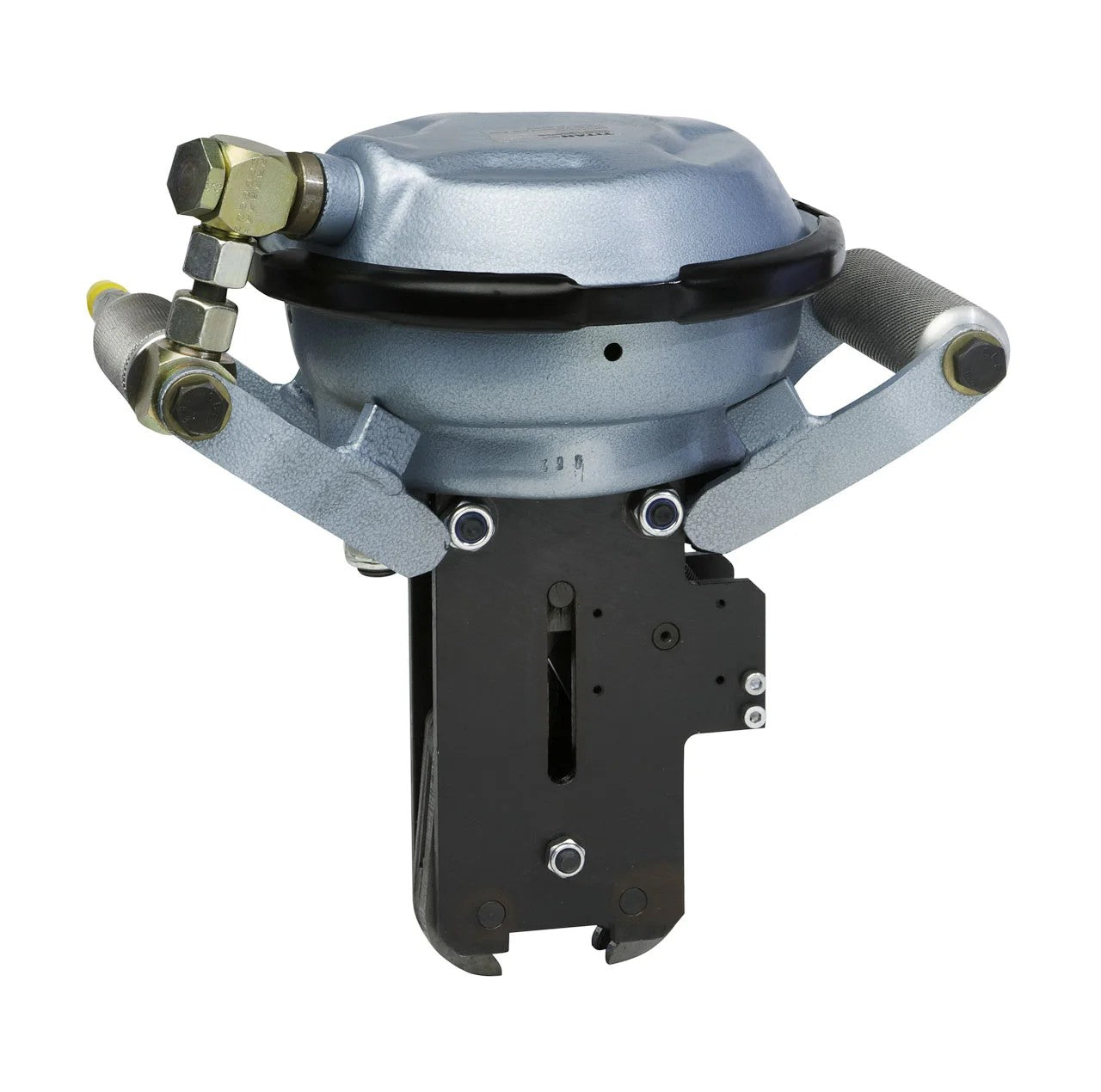

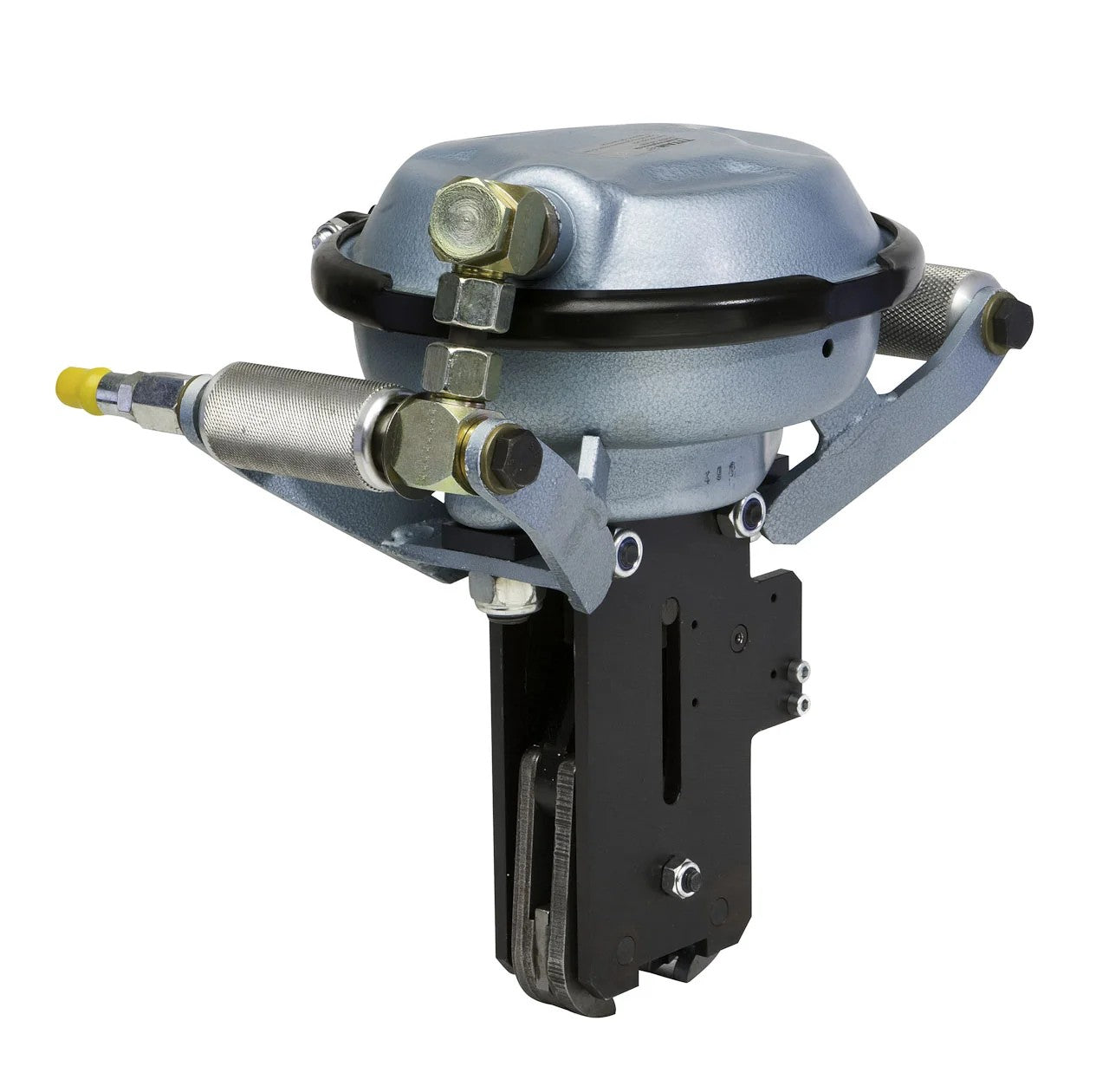

TITAN SCR-PNEUMATIC SEALER

TITAN SCR-PNEUMATIC SEALER

The TITAN SCR, a pneumatic handheld tool dedicated to binding steel straps using crimp seals, operates seamlessly alongside the tensioner PLC.



Enquiry Form

Contact us Please contact us for wholesale pricing or freight discounts for larger orders.
Contact us
View full details

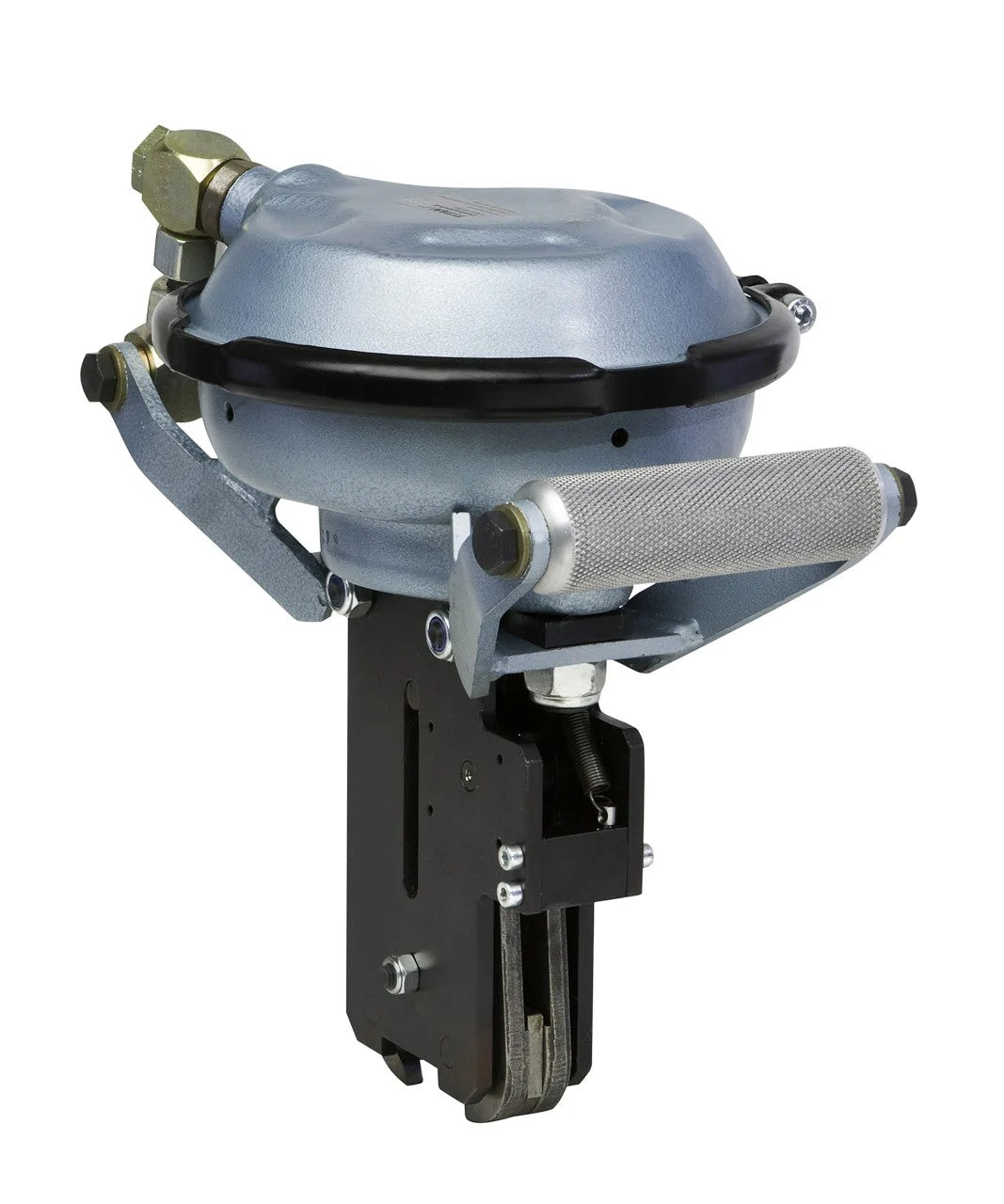

TITAN PNEUMATIC SEALER

The TITAN SCR, a pneumatic handheld tool dedicated to binding steel straps using crimp seals, operates seamlessly alongside the tensioner PLC. As such, the SCR is meticulously crafted to accommodate strap thicknesses ranging from 32 mm 0.8 mm to 32 x 1.45 mm, and it squarely fits within the category of sealers intended for Lifting & Lashing applications.


TITAN SCR

The standout attribute of this tool lies in its capability to effectuate crimp seal connections with a singular crimping action. These crimp seals not only facilitate shock absorption but also permit slight movement of the strap within the seal. This distinct feature proves particularly pivotal in scenarios like maritime and rail freight transportation, where any strapping irregularity could lead to severe repercussions.

SCR ADVANTAGES

  • Sealer for Lifting and Lashing
  • Dependable for heavy goods transport

TITAN SCR TECHNICAL FEATURES

  • Type of strap - Steel Strap
    Strap width - 32mm
  • Kind of seal - Crimp joint (single notch)
  • Sealing strength (depending on strap quality, strap dimensions) - up to 85 – 95% of the strap breaking load





TITAN SCR TECHNICAL DATA
Kind of drive (Sealing)
Pneumatic
Dimensions
300x370x360mm (LxWxH) 11.8×14.6×13.8” (LxWxH)
Weight
10KG
Air pressure
and Air pressure

Download

TITAN SCR BROCHURE Download
TITAN SCR MANUAL Download
