MPS Packaging Australia SKU: ADL-PKD32

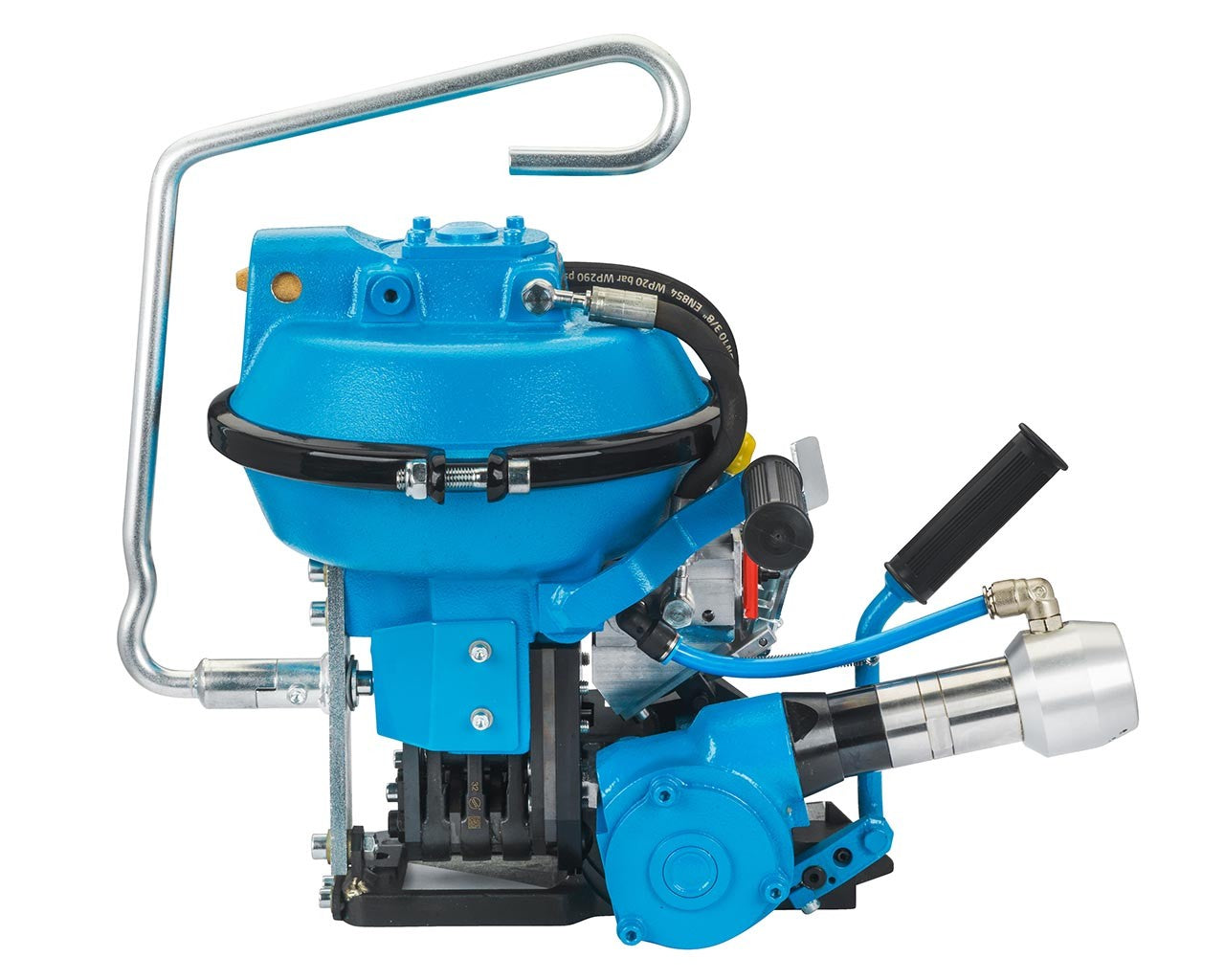

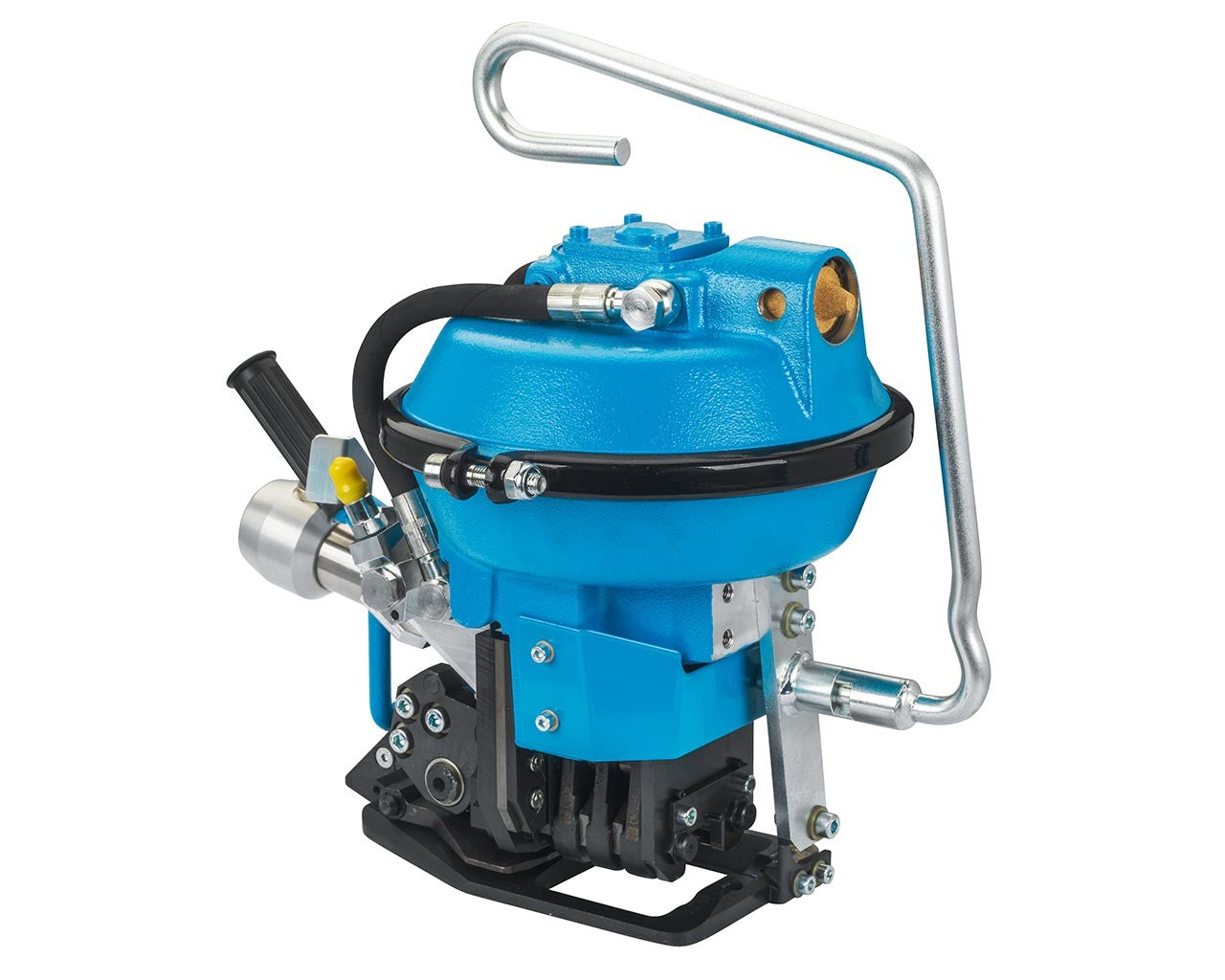

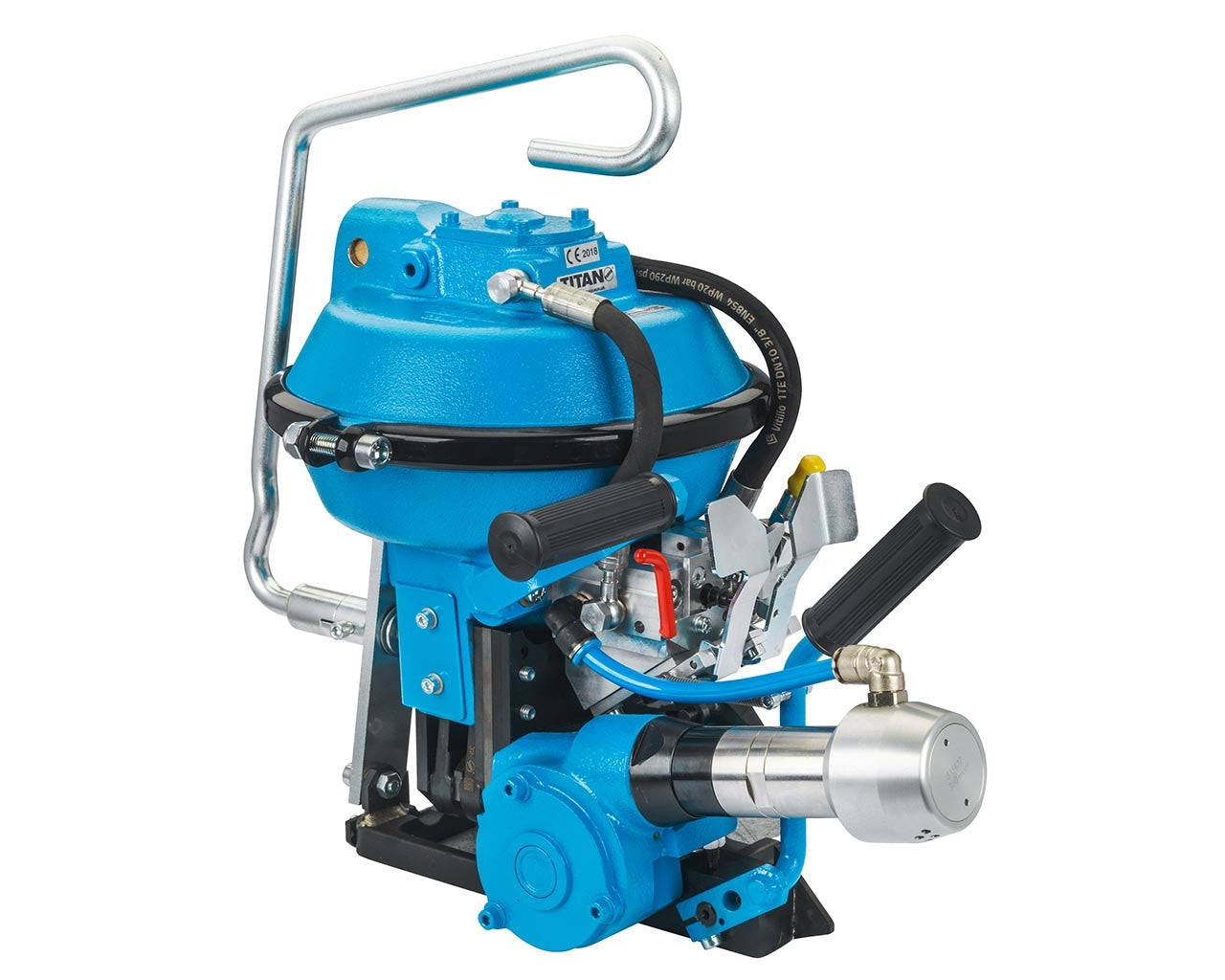

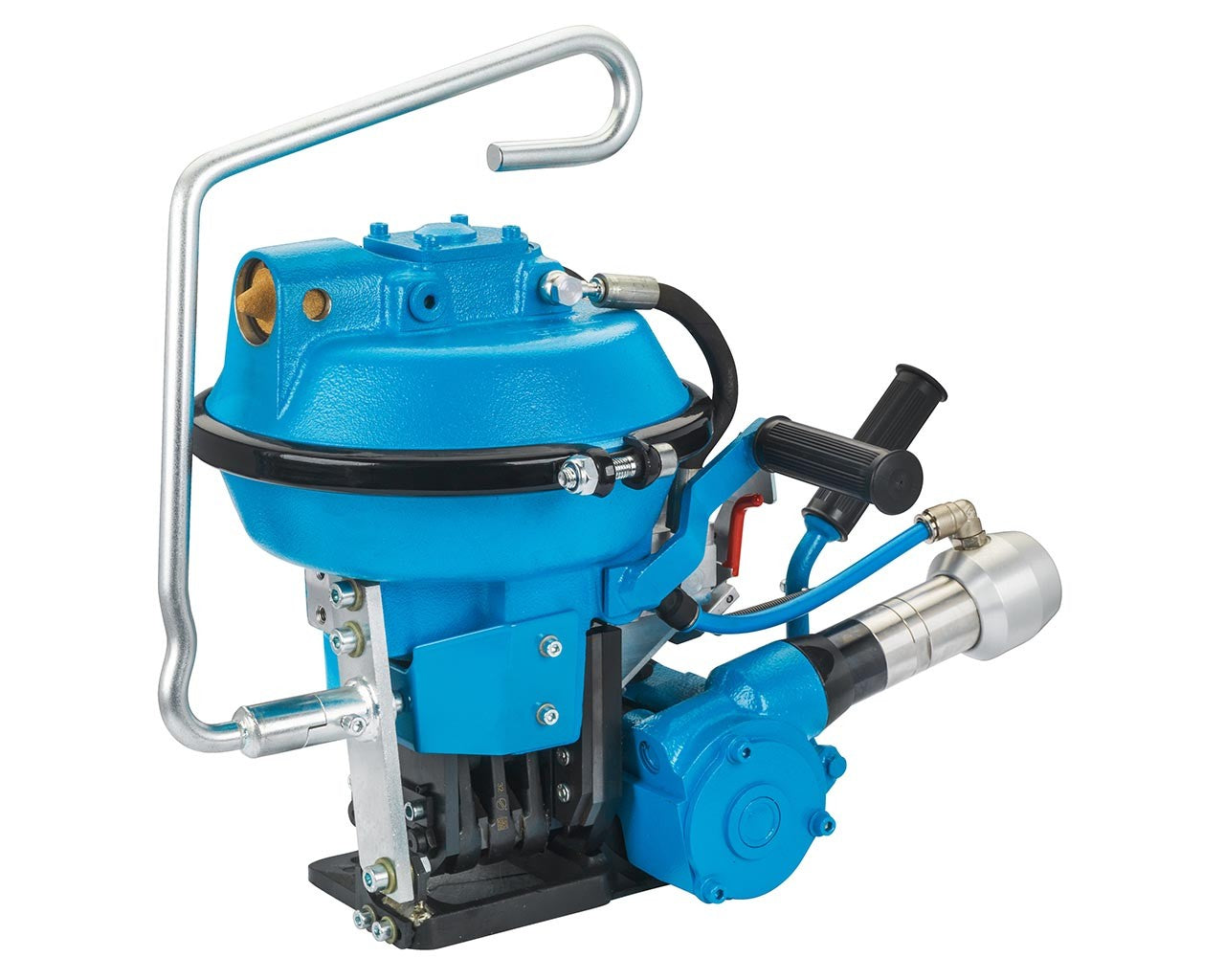

TITAN PNEUMATIC SEALLESS-PKD

TITAN PNEUMATIC SEALLESS-PKD

The innovative safety joining technology prevents the joint from being pushed open. The tensioning force of up to 14,000 N meets even the highest demands of heavy industry.

Enquiry Form

Contact us Please contact us for wholesale pricing or freight discounts for larger orders.
Contact us
View full details

TITAN PKD

Masters heavy-duty strapping applications with pneumatic ease
We are talking about heavy-duty strapping applications when processing strapping ranging between 19 and 32 mm strap thickness.
Without any doubt, in this segment the reliability of the joint and the cost savings are of particularly high importance. That’s why the experts at TITAN have developed the PKD for flat packages.
The innovative safety joining technology prevents the joint from being pushed open. The tensioning force of up to 14,000 N meets even the highest demands of heavy industry.
It has proven its worth in this field and shows the joint performance of tensioning force, safety and reliability.

ADVANTAGES

  • for strapping of heavy packages like sectional steel, packages of bricks, paper, wood, etc.

TITAN PKD TECHNICAL FEATURES

  • Type of strap - Steel Strap
    Strap width - 19, 25, 32mm, 32mm (Serie 2)
  • strap thickness - 0.80 -1.00mm
  • Kind of seal - Sealless joint
  • Sealing strength (depending on strap quality, strap dimensions) - Approx. 80% of the strap breaking load

TITAN PKD TECHNICAL DATA
Kind of drive (Tensioning)
Pneumatic
Tension force
Up to 14,000 N
Kind of drive (Sealing)
Pneumatic
Strap feeding speed
0.08 m/s 0.26 ft/s
Dimensions
460x300x350mm (LxWxH) 18.1×11.8×13.8” (LxWxH)
Weight
25.4KG
Air Pressure
Max. 6.5 bar flow pressure
Air consumption (During tensioning)
0.6m3 / Min
Cross-section
and G 3/8”
