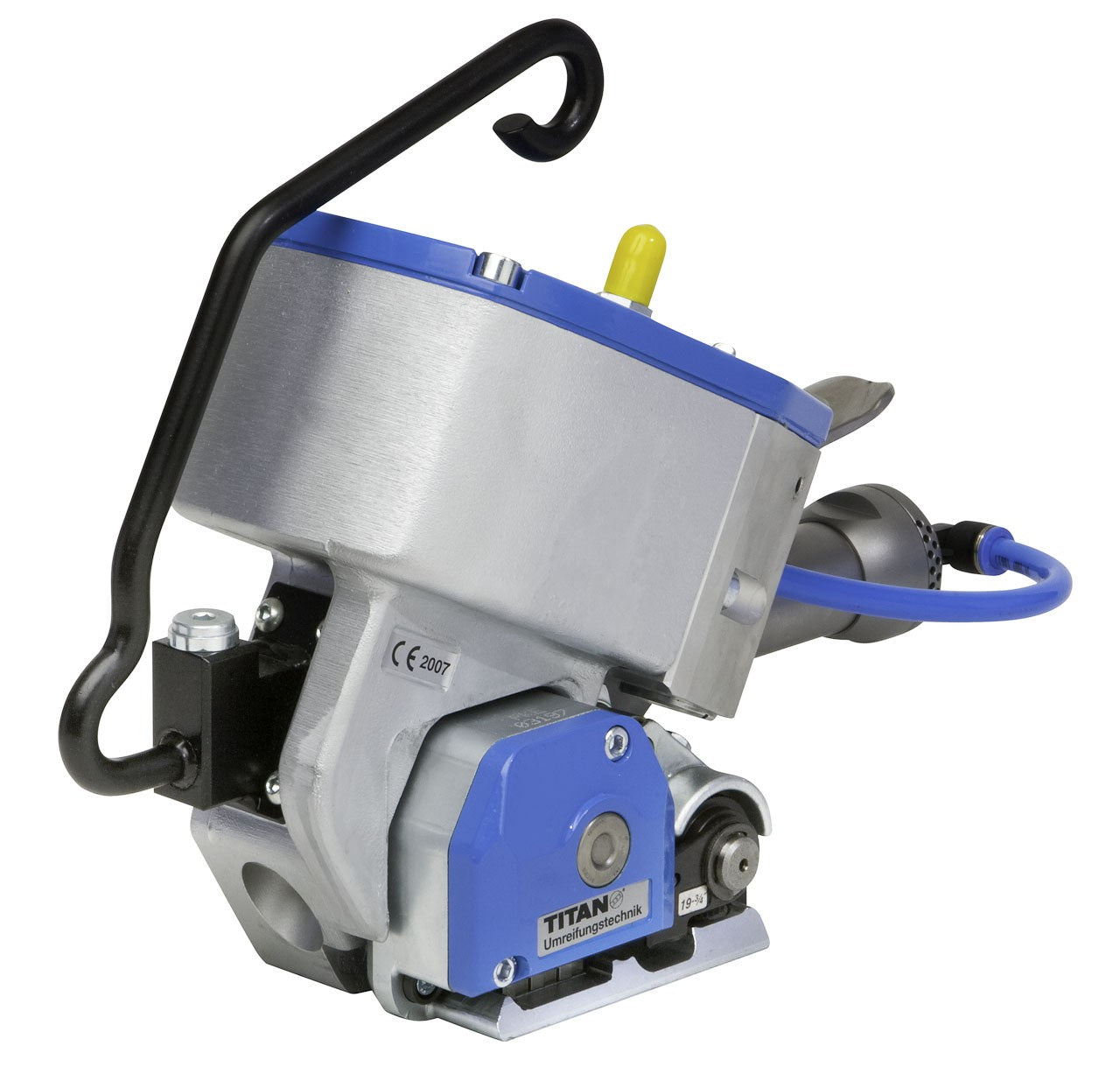

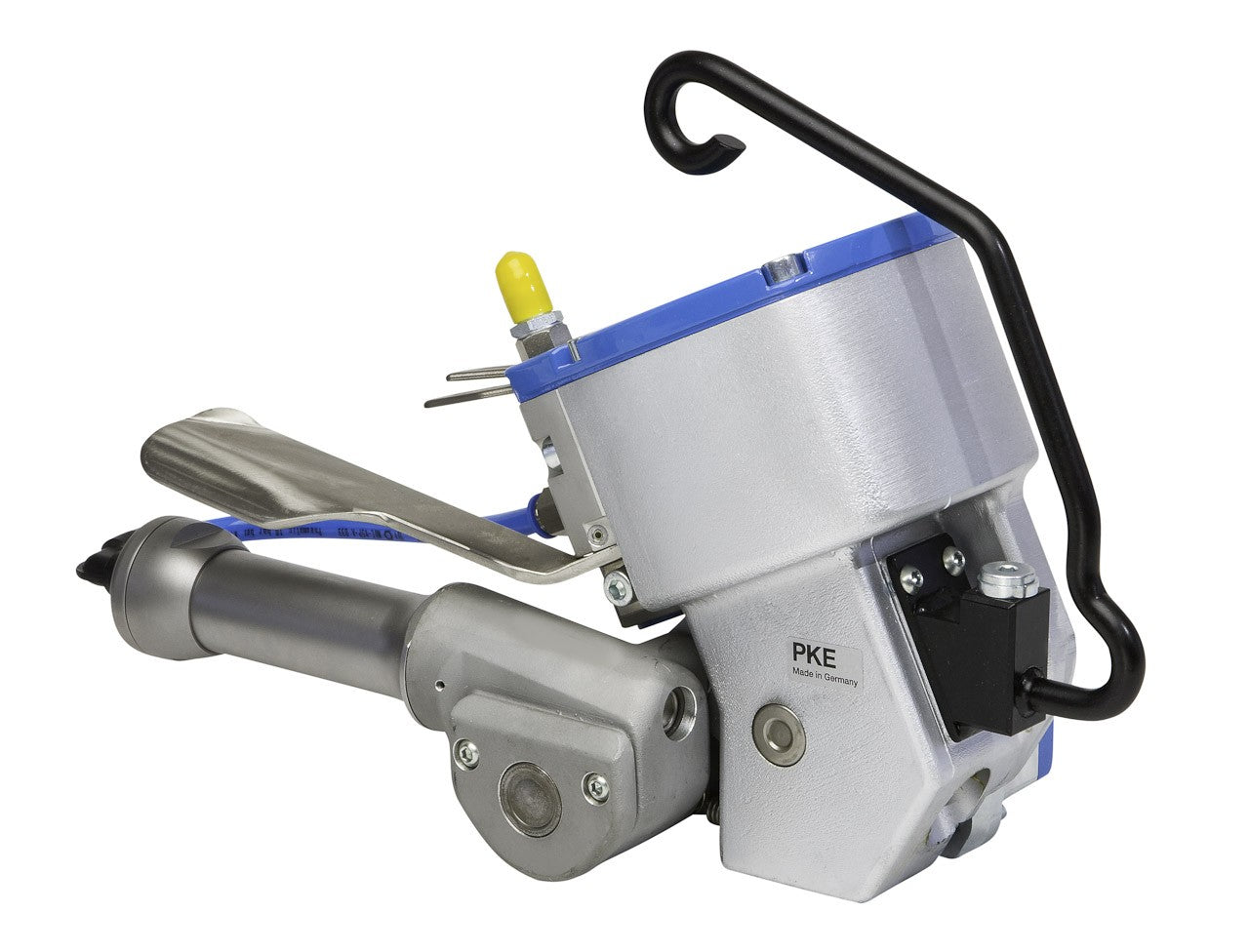

TITAN PKE PNEUMATIC STRAPPING TOOL

TITAN PKE PNEUMATIC STRAPPING TOOL

The fully pneumatic hand-held tool PKE from TITAN allows all-round easy use.

Enquiry Form

Contact us Please contact us for wholesale pricing or freight discounts for larger orders.
Contact us
View full details

TITAN PKE

Fully pneumatic hand-held means that both tensioning and joining are done pneumatically and no high effort is needed on the part of the operator. This makes it the ideal stationary device for high strapping rates and allows all-round easy use.
It is possible to join steel straps of 13, 16 and 19 mm preferably on flat packages with PKE using a tensioning force of up to 7,000 N without seals.

ADVANTAGES

  • Strapping of flat packages (e.g. palletized goods) for stationary use.
    Easy to use with minimal operator effort.

TITAN PKE TECHNICAL FEATURES

  • Type of strap - Steel Strap
    Strap width - 13mm, 16mm, 19mm
  • Kind of seal - Sealless-joint
  • Sealing strength (depending on strap quality, strap dimensions) - up to approx. 75% of the strap breaking load

TITAN PKE TECHNICAL DATA
Kind of drive (tensioning)
Pneumatic
Tension force
Up to 7000N
Kind of drive (Sealing)
Pneumatic
Dimensions
392x150x270mm (LxWxH) 15.4 x 5.9 x 10.6″ (L x W x H)
Weight
11.5KG
Air pressure
Min. 5 bar flow pressure max. 6 bar flow pressure
Air consumption (during tensioning)
and 21.18 ft³ / min.

Download

TITAN PKE DATA SHEET Download
TITAN PKE MANUAL Download
