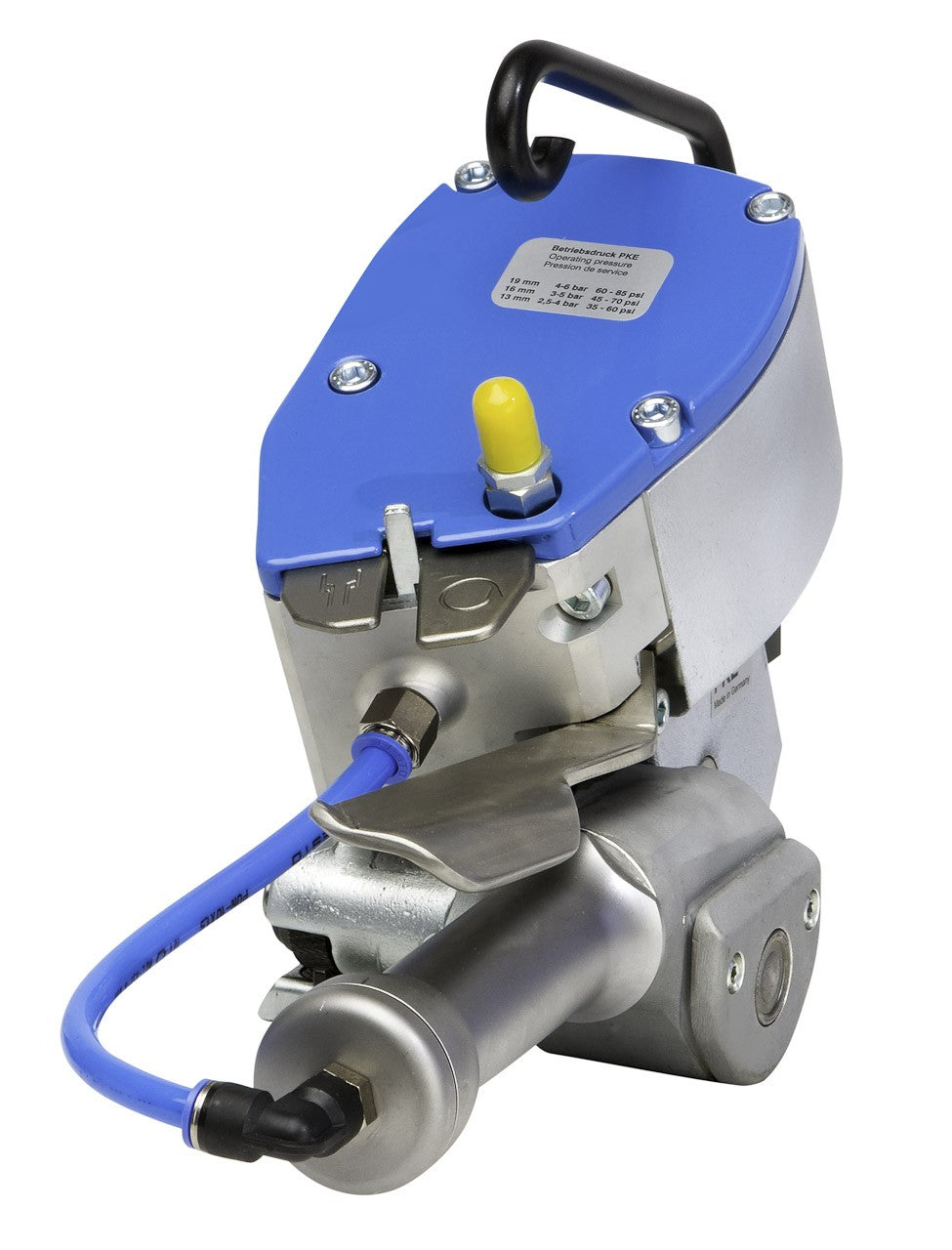

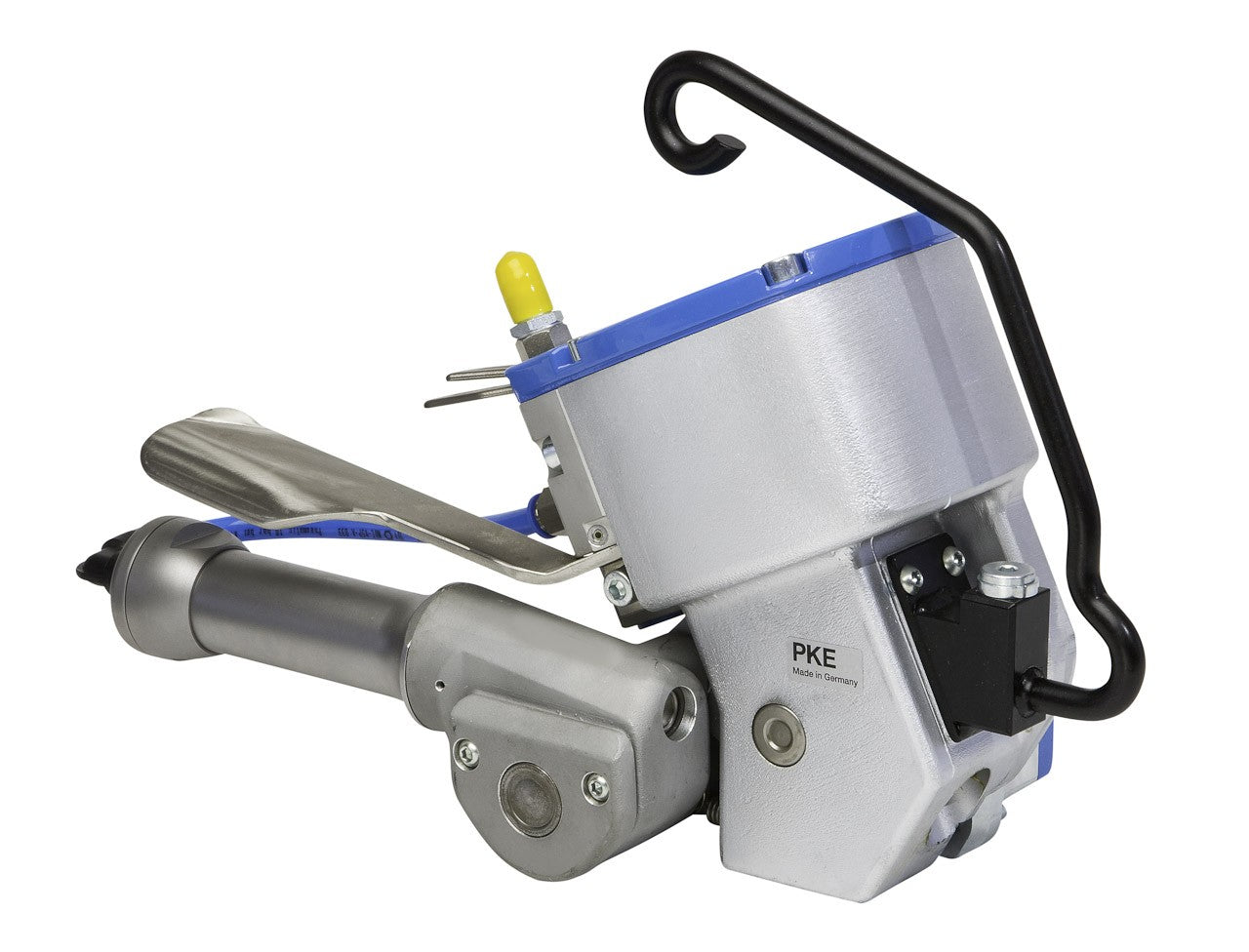

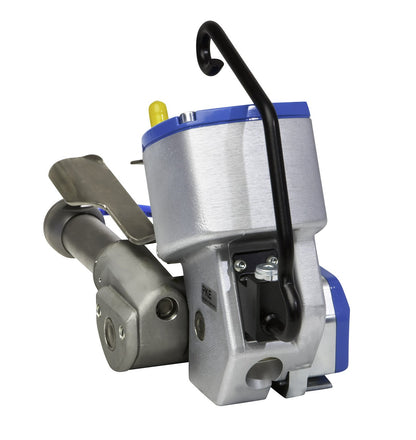

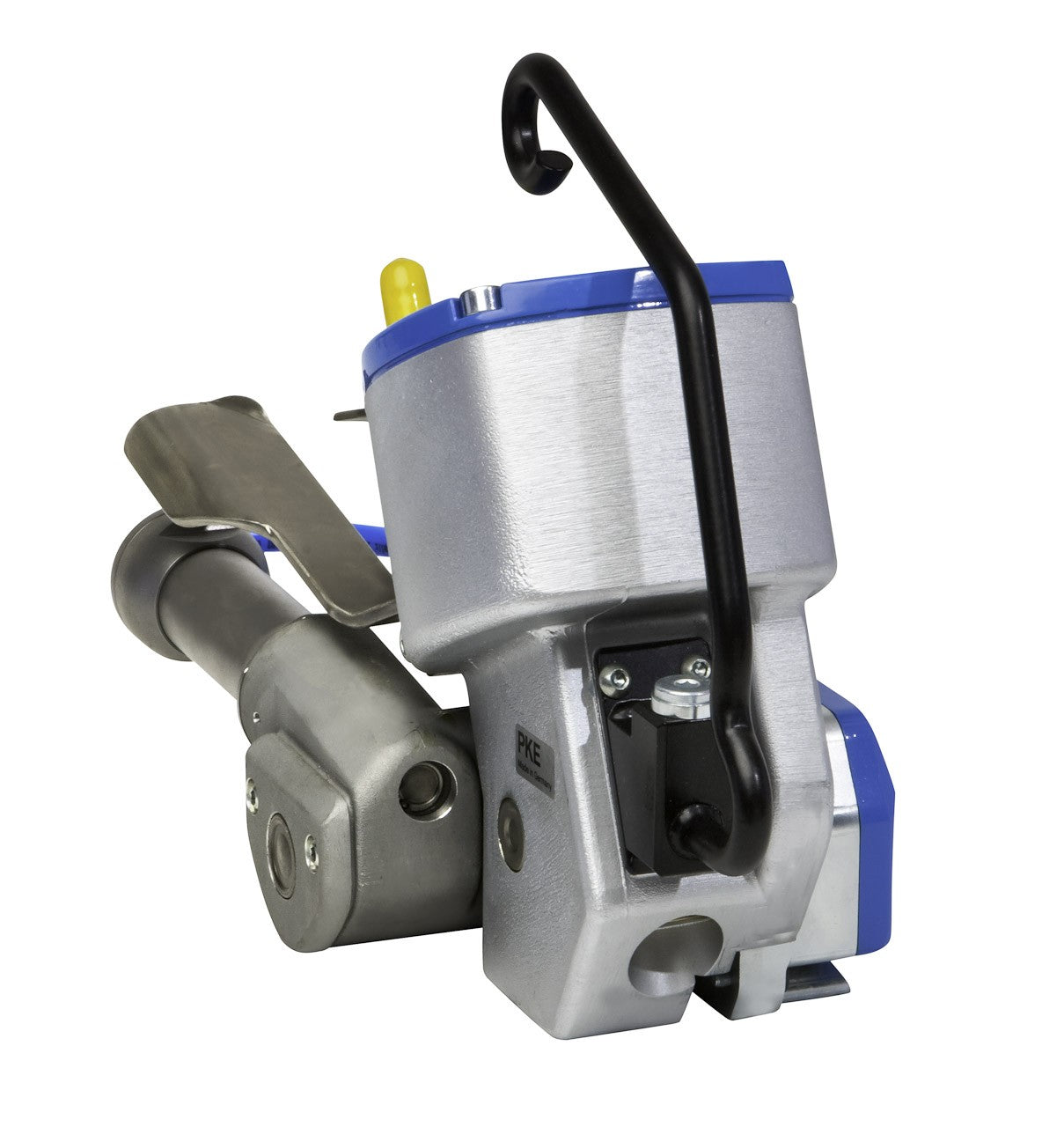

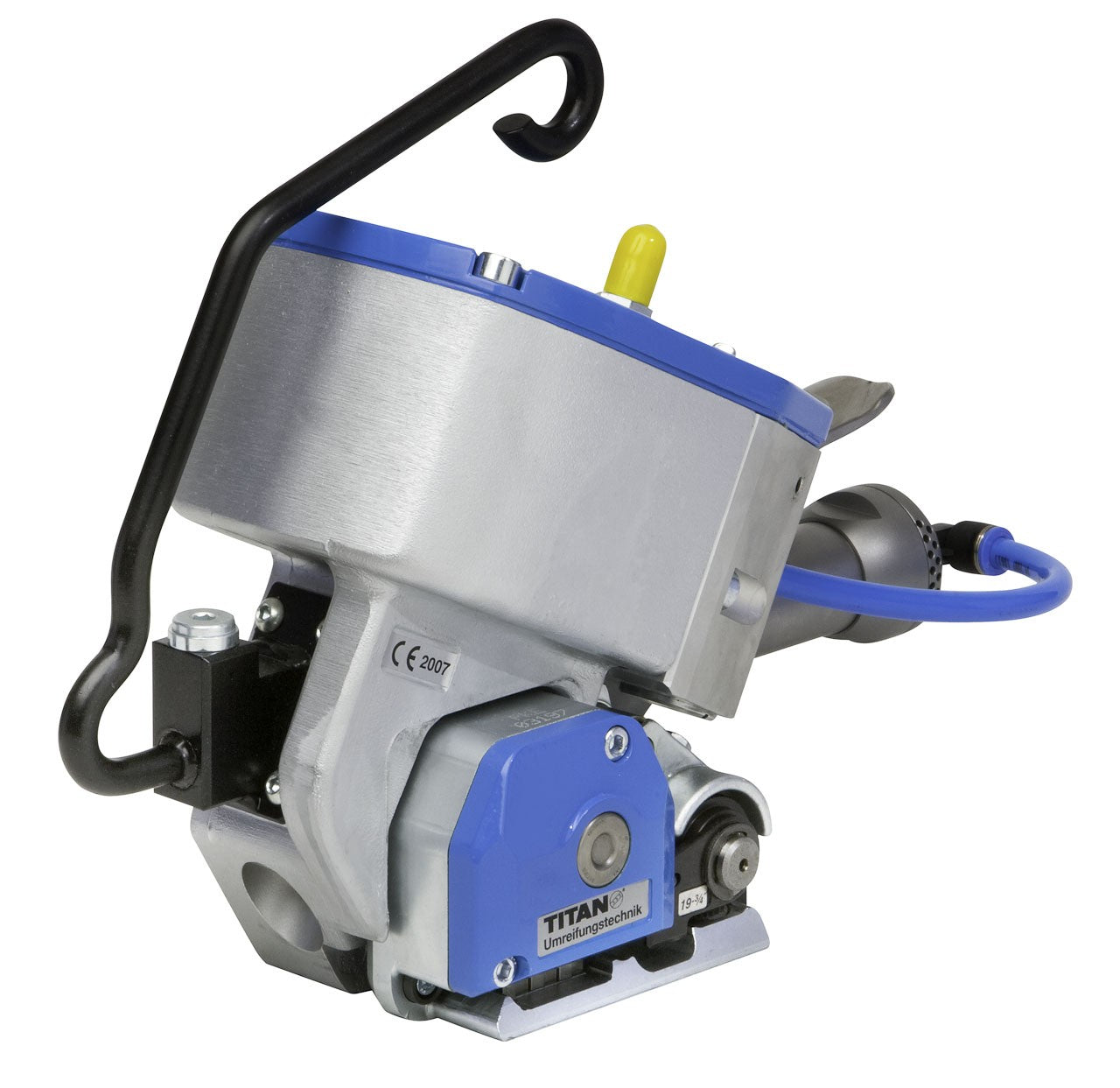

TITAN PKE-HD PNEUMATIC STRAPPING TOOL

TITAN PKE-HD PNEUMATIC STRAPPING TOOL

Titan Pneumatic Strapping tool PKE-HD specialises in straps of 19mm width with a fully pneumatic function delivering high and uniform strap tension, ensuring the highest reliability.

Enquiry Form

Contact us Please contact us for wholesale pricing or freight discounts for larger orders.
Contact us
View full details

TITAN PKE-HD

Introducing the PKE-HD, TITAN introduces an unparalleled hand-held tool designed for both standard and high-performance straps, with dimensions extending up to 19 x 0.8 mm. This tool stands unmatched in the market.
As the larger sibling to the PKE and a close relative to the HKE-HD, the PKE-HD seamlessly combines the pivotal attributes of the E-Series with a comfortable, fully pneumatic operation, focusing specifically on accommodating 19 mm width straps. This specialisation ensures its effectiveness even in challenging scenarios such as securing sheet metal packages. The sealless joint, employing three notches as pioneered by TITAN, firmly unites what rightfully belongs together.

ADVANTAGES

  • High and uniform strap tension ensures the highest reliability.

TITAN PKE-HD TECHNICAL FEATURES

  • Type of strap - Steel Strap
    Strap width - 19mm
  • Strap thickness - 0.61 -0.78mm
  • Kind of seal - Sealless joint
  • Sealing strength (depending on strap quality, strap dimensions) - up to approx. 75% of the strap breaking load
TITAN PKE-HD TECHNICAL DATA
Kind of drive (Tensioning)
Pneumatic
Tension force
Up to 7,000 N
Kind of drive (Sealing)
Pneumatic
Strap feeding speed
0.15 m/s 0.5 ft/s
Dimensions
391x163x270mm (LxWxH) 15.4 x 6.4 x 10.6″ (L x W x H)
Weight
11.4KG
Air Pressure
Max. 6 bar flow pressure
Air consumption (During tensioning)
and 21.18 ft³ / min.

Download

TITAN PKE-HD MANUAL Download
TITAN PKE-HD DATA SHEET Download
