MPS Packaging Australia SKU: ADL188

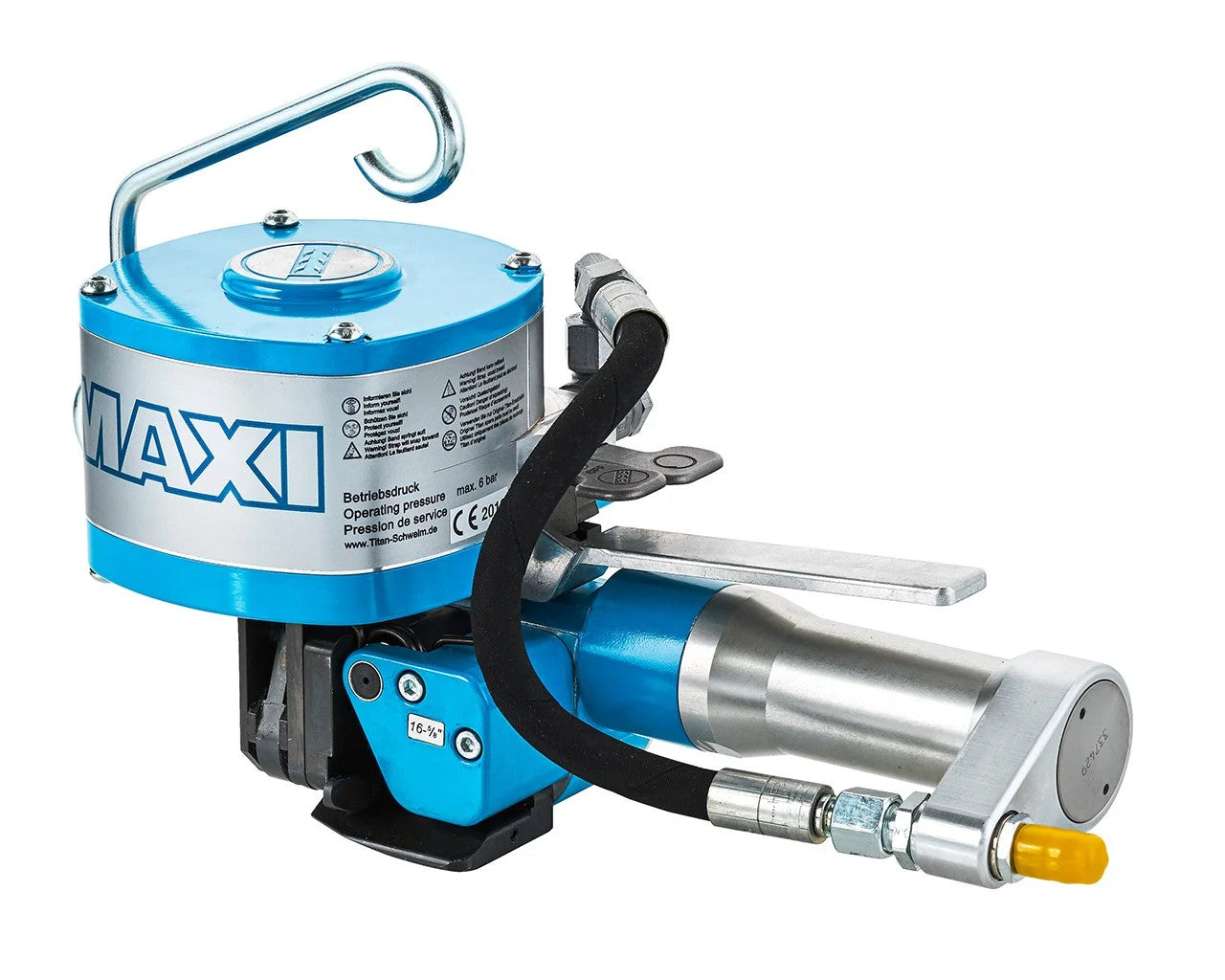

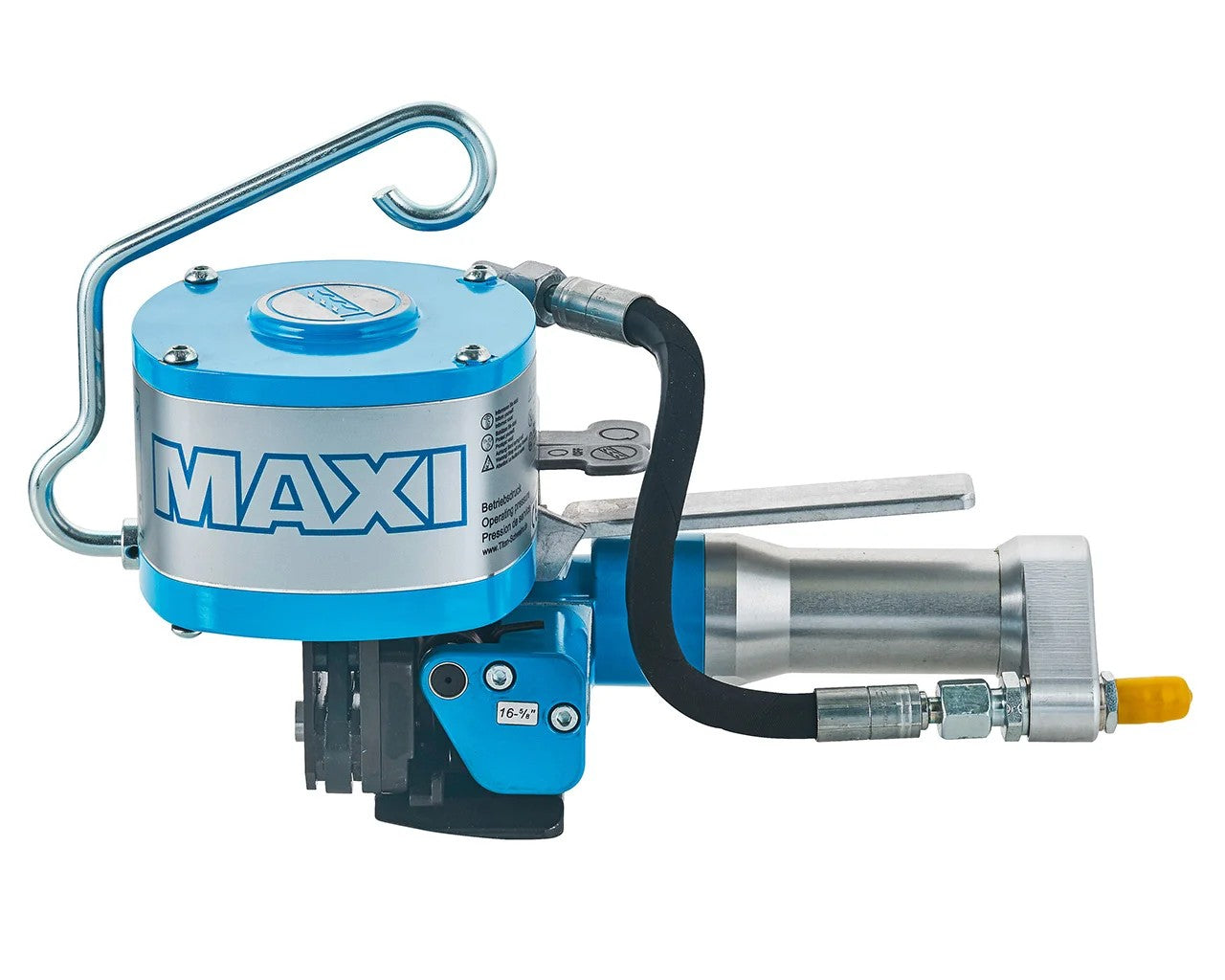

TITAN MAXI-LAH PNEUMATIC STRAPPING TOOL

TITAN MAXI-LAH PNEUMATIC STRAPPING TOOL

Titan Maxi-Lah pneumatic strapping tool combines a pneumatically generated tensioning force of up to 4.000 N with optimum handling characteristics and intuitive operation



Enquiry Form

Contact us Please contact us for wholesale pricing or freight discounts for larger orders.
Contact us
View full details

PNEUMATIC STRAPPING TOOL

Experience unparalleled flexibility even within confined spaces with the MAXI-LAH. Building upon the foundation of the MAXI model, this device seamlessly integrates a pneumatically generated tensioning force, capable of reaching up to 4,000 N, with exceptional handling attributes, intuitive controls, and an ergonomic design.

MAXI-LAH

Its operation remains unobtrusive as it doesn’t require disruptive hoses; only the peripheral connection is visible externally. Joining is accomplished using a seal and notch mechanism. The MAXI-LAH effortlessly accommodates strap widths of 13 mm, 16 mm, and 19 mm. Remarkably lightweight at just 4.2 kg, it stands as a true featherweight within its category. The standout feature of the MAXI-LAH lies in its rear-mounted air connection, ensuring that the standard handling advantages persist even in unique circumstances.

LAH TECHNICAL FEATURES

  • Type of strap - Steel Strap
    Strap width - 13mm, 16mm, 19mm
  • Type of seal - Seal-joint (double notch)
  • Sealing strength (depending on strap quality, strap dimensions) - up to approx. 50% of the strap breaking load

TITAN-LAH TECHNICAL DATA
Tensioning Drive & Sealing
Pneumatic
Tension force
Max. 4000 N (adjustable)
Seal type
RS 13; 16; 19
Dimensions
320x145x221mm (LxWxH) 12.6X5.7X8.7” (LxWxH)
Weight
4.5KG
Strap feeding speed
0.11 m/s 0.36 ft/s
Air pressure
and max. 4.0 bar flow pressure (for 1/2 ” strap) max. 5.0 bar flow pressure (for 5/8 ” strap) max. 6.0 bar flow pressure (for 3/4 ” strap)

MAXI-LAH ADVANTAGES

  • Lightweight – Only 4.2kg
  • Intuitive operation
  • Ergonomic design

Download

TITAN MAXI-LAH BROCHURE Download
TITAN MAXI-LAH MANUAL Download
