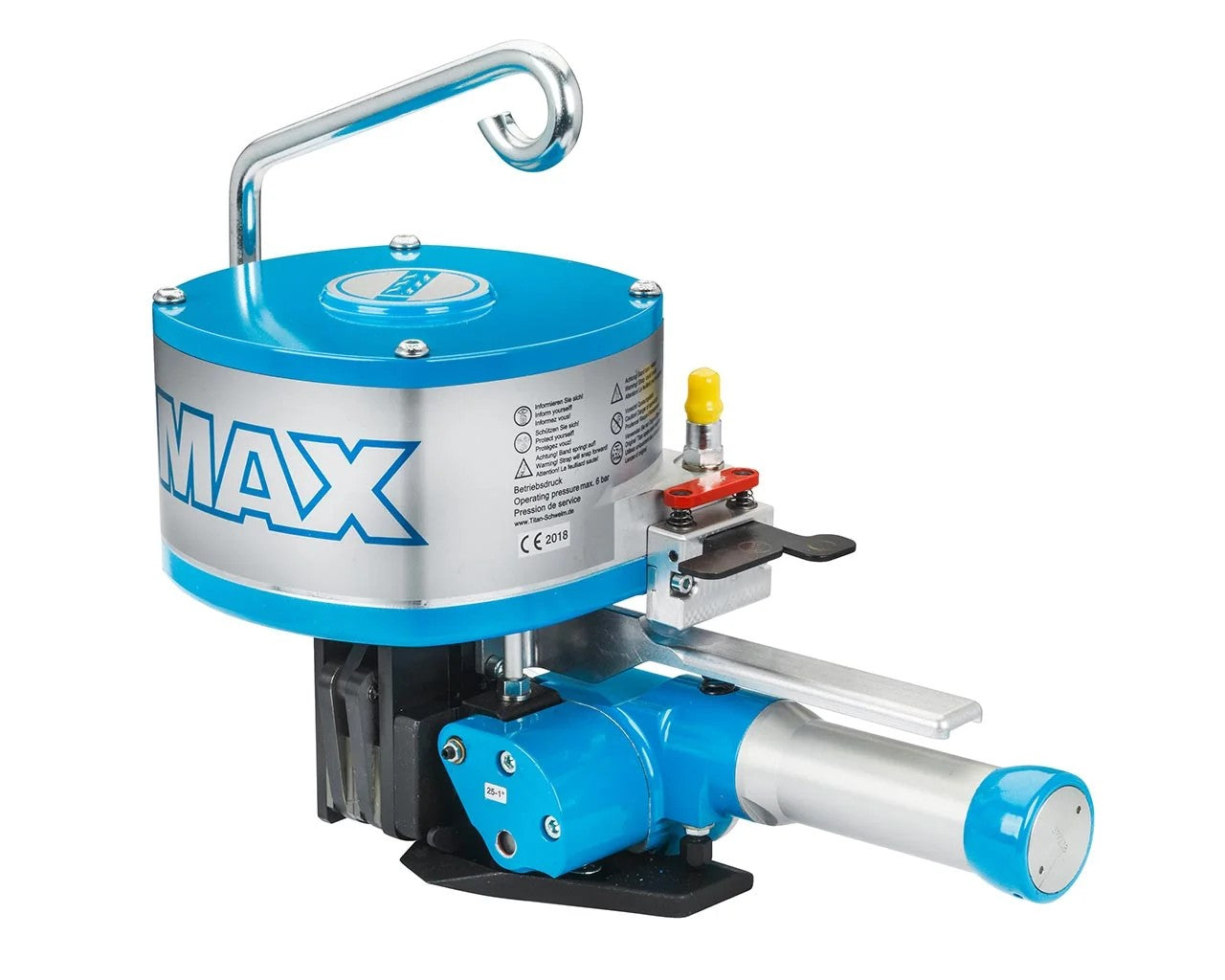

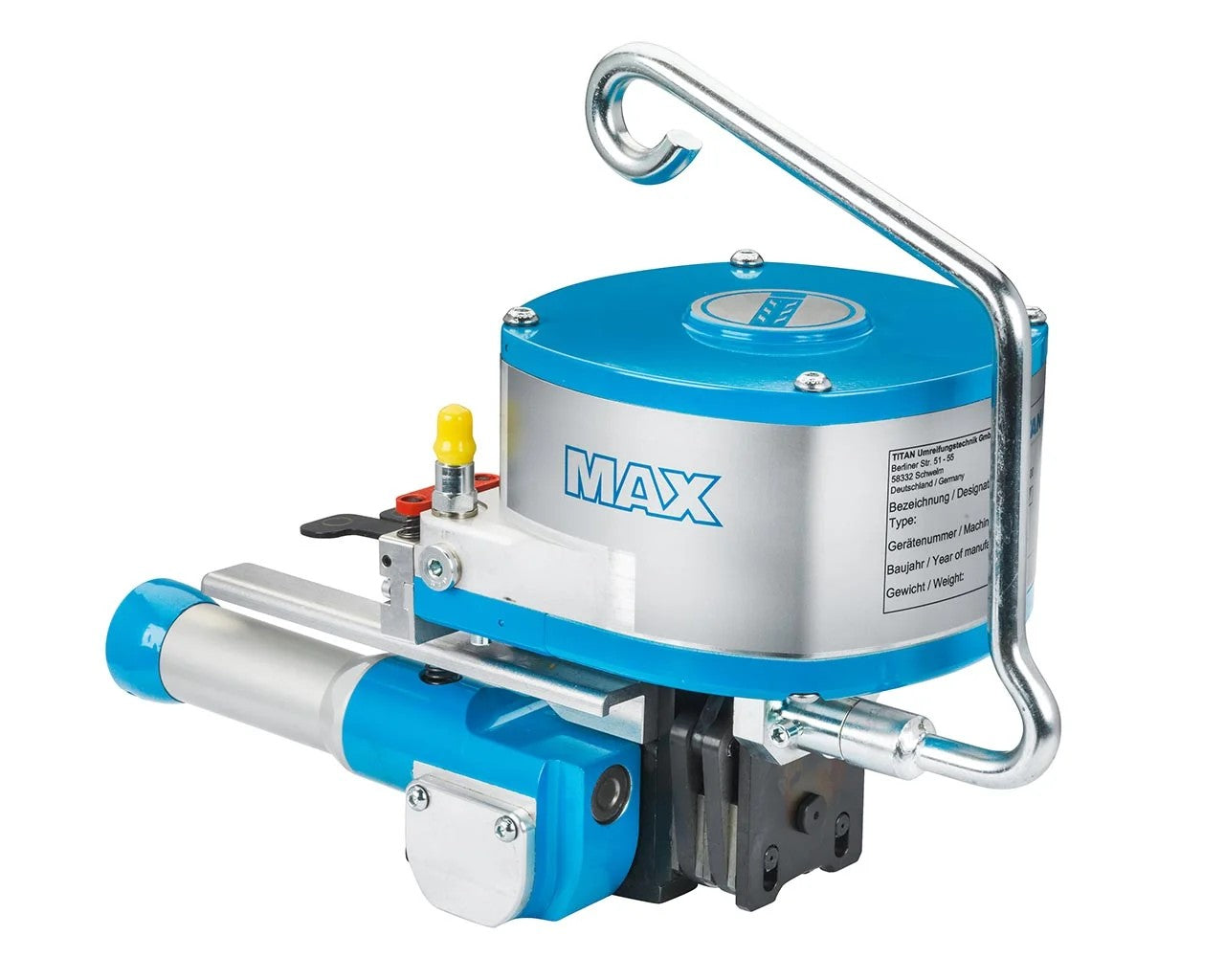

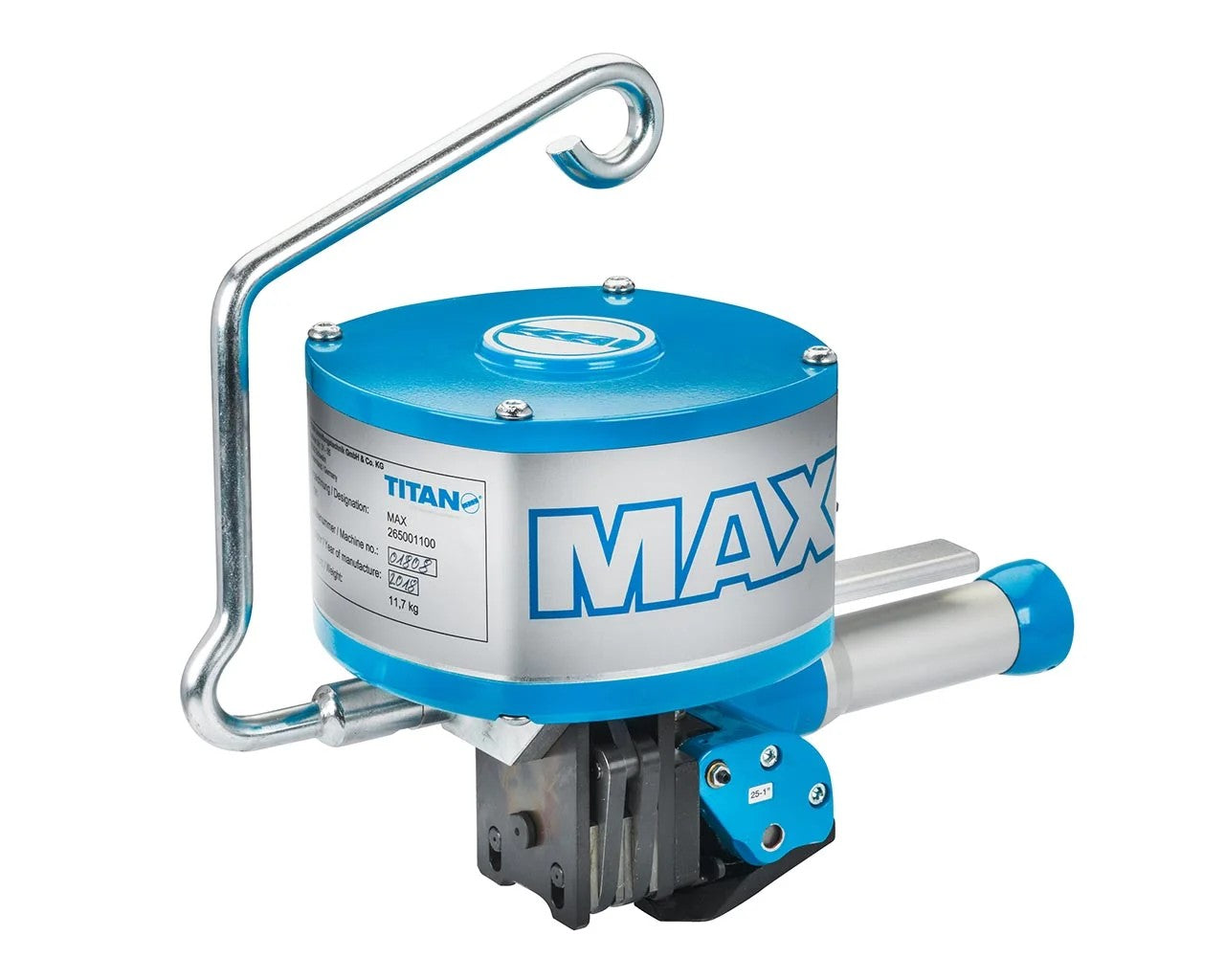

TITAN MAX PNEUMATIC STRAPPING TOOL

TITAN MAX PNEUMATIC STRAPPING TOOL

Designed for steel straps up to 32 mm in width, secured via a double-notch seal, the MAX exemplifies its performance class with a weight of approximately 11 kg.

$11,000.00
$11,000.00
Sale Sold out
Tax included.
Contact us Please contact us for wholesale pricing or freight discounts for larger orders.
Contact us
View full details

PNEUMATIC STRAPPING TOOL

The TITAN MAX pneumatic strapping tool’s performance metrics speak for themselves: Harnessing pneumatic motors, the MAX model generates an immense tensioning force of up to 8,000 N. This tension remains consistently held, courtesy of an incorporated return stop mechanism after the joining process.

TITAN MAX

Designed for steel straps up to 32 mm in width, secured via a double-notch seal, the MAX exemplifies its performance class with a weight of approximately 11 kg. This makes MAX an ideal lightweight companion for robust applications like assembling pipes and wires, working with slit coils, and managing larger coils.

These tasks demand a tool that is both lightweight and potent, while also being capable of seamlessly operating reliably even in challenging environmental conditions. MAX rises to this challenge with confidence: Its design and technology are testaments to its prowess and reliability.

MAX TECHNICAL FEATURES

  • Type of strap - Steel Strap
  • Strap width - 19mm, 25mm, 32mm
  • Type of seal - Seal-joint (double notch)
  • Sealing strength(depending on strap quality, strap dimensions) - Up to approx. 75% of the strap breaking load

TITAN MAX TECHNICAL DATA
Tensioning Drive & Sealing
Pneumatic
Tension force
max. 8,000 N (adjustable)
Seal Type
RSK 19; 25; 32
Kind of drive (sealing)
Pneumatic
Dimensions
450x195x300mm (LxWxH) 17.7X7.7X11.8” (LxWxH)
Weight
11.7KG
Strap feeding speed
0.11 m/s 0.36 ft/s
Air pressure
Min. 5 bar flow pressure Max. 6 bar flow pressure
Air consumption (During tensioning)
and 11 Nl / s

TITAN MAX ADVANTAGES

  • Strapping of  Small round and flat packages
  • 8000N of tension
