MPS Packaging Australia SKU: ADL2012

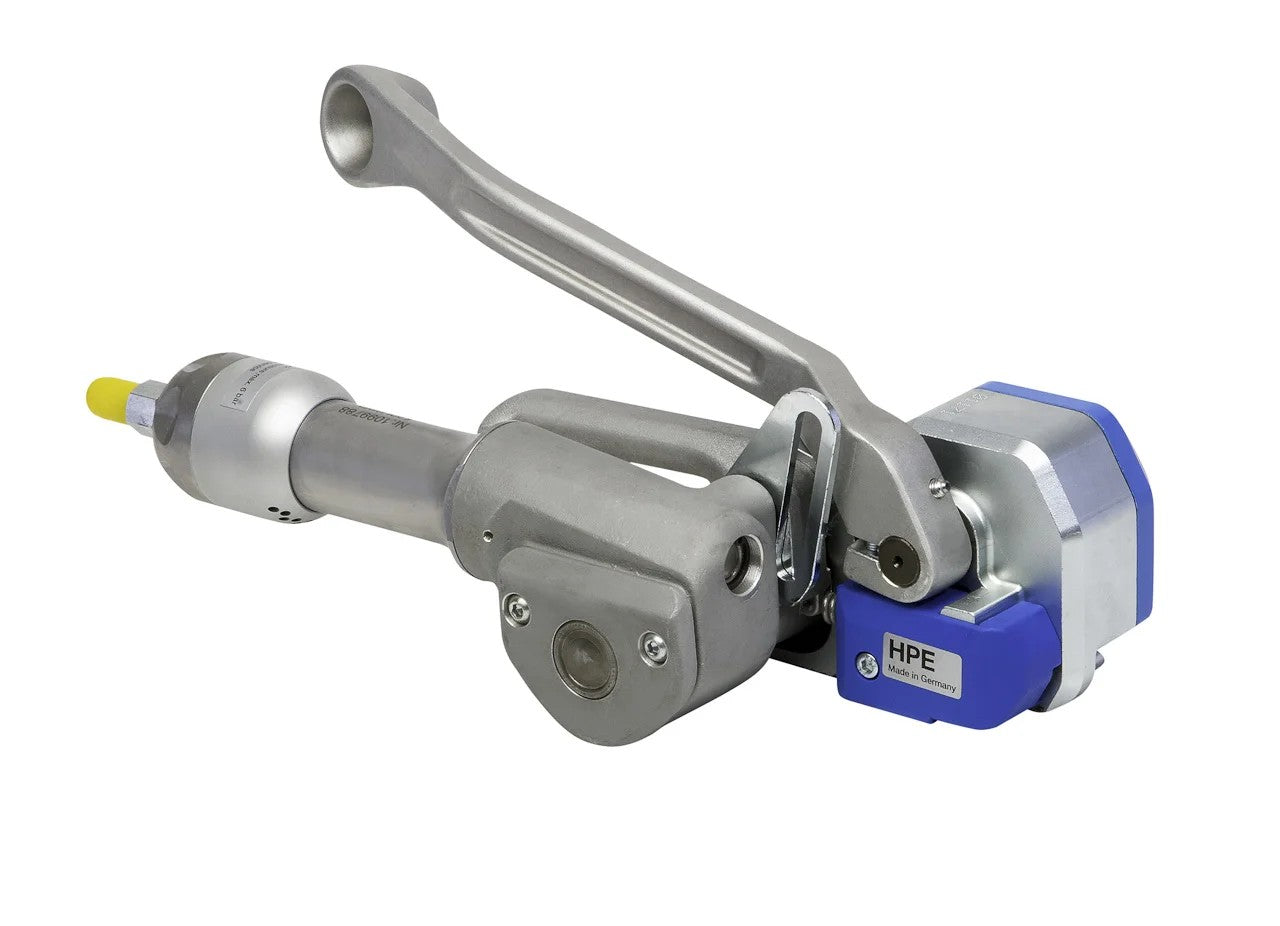

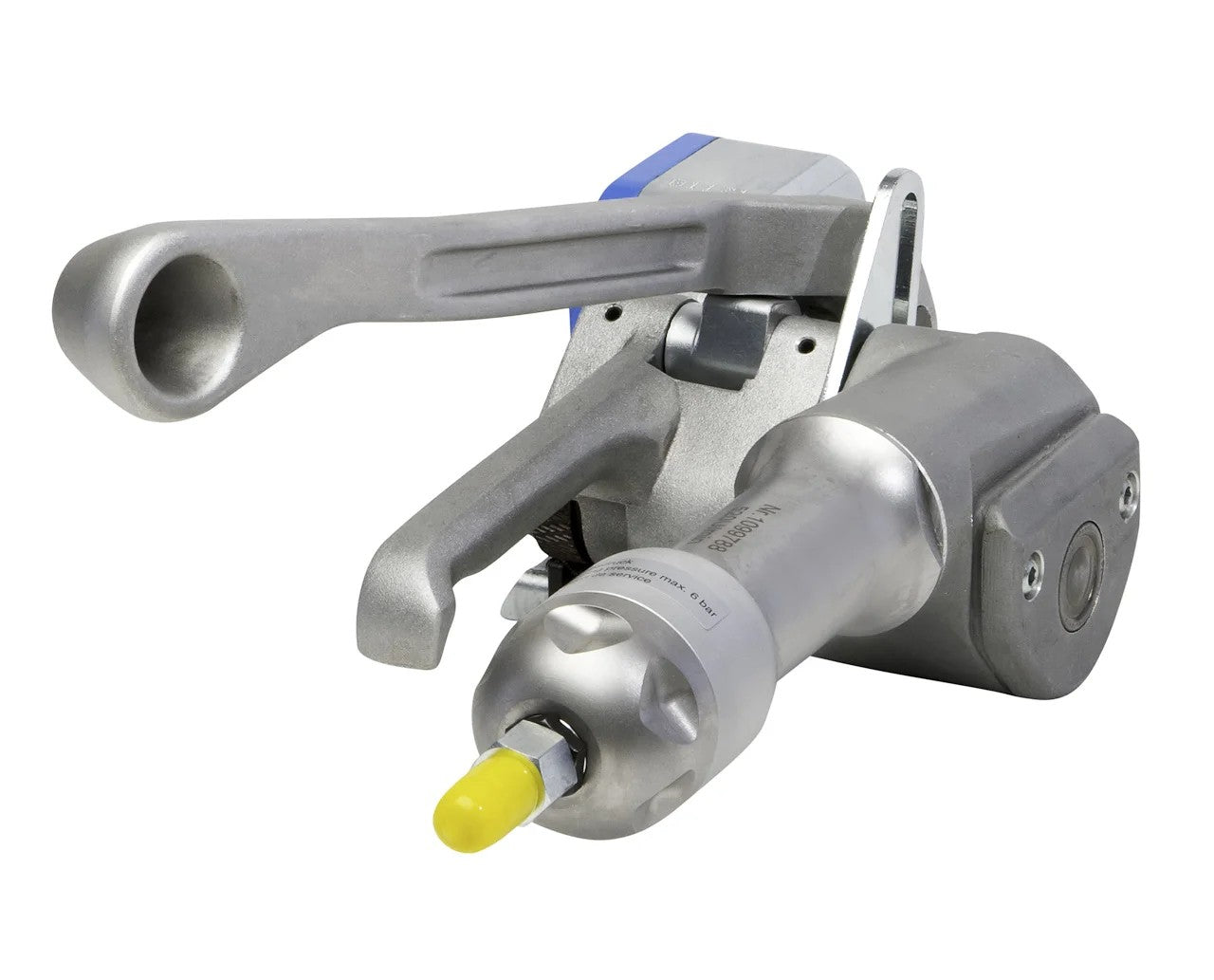

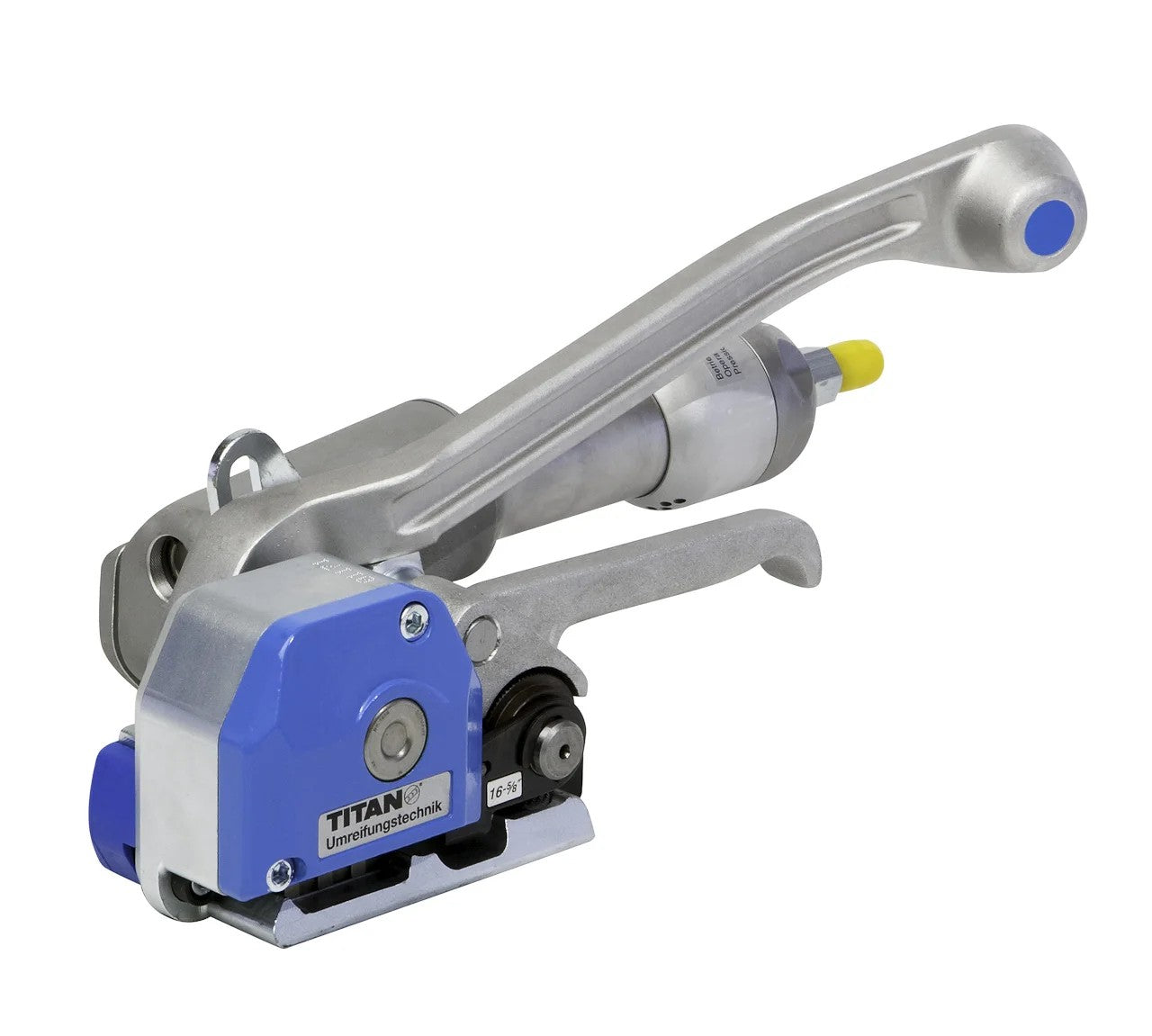

TITAN HPE-L COMBINED STRAPPING TOOL

TITAN HPE-L COMBINED STRAPPING TOOL

The HPE-L is a pneumatic tension unit, with manual sealless joint for those looking for fast effortless tension on a compact unit.

$11,000.00
$11,000.00
Sale Sold out
Tax included.
Contact us Please contact us for wholesale pricing or freight discounts for larger orders.
Contact us
View full details

TITAN COMBINED TOOL

Every strapping procedure comprises a pair of distinct phases: tensioning and joining. The HPE-L model seamlessly integrates human strength with pneumatic functionality for executing both of these phases. The device employs pneumatic force to achieve strap tension of up to 7,000 N, whereas the joining process remains under manual control.


HPE-L TECHNICAL FEATURES

  • Type of strap - Steel strap
  • Strap width - 13mm, 16mm, 19mm
  • Kind of seal - Sealless-joint
  • Sealing strength (depending on strap quality, strap dimensions) - Up to approx. 75% of the strap breaking load

HPE-L TECHNICAL DATA
Kind of drive (tensioning)
Pneumatic
Tension force
Up to 7000N
Kind of drive (Sealing)
Manually
Dimensions
600x610x618mm (LxWxH) 23.6×24.0x24.3″(LxWxH)
Weight
5.5KG
Air pressure
Max. 6 bar flow pressure
Air consumption (During tensioning)
and 12.7 ft³ / min

TITAN HPE-L ADVANTAGES

  • Saves valuable energy when working with flat packages
  • User-friendly with a high tensioning force

TIAN HPE-L

The HPE-L not only inherits the benefits of the HKE model but also enhances them through improved user-friendliness and the consistent application of high tensioning force facilitated by pneumatic propulsion. This innovative approach conserves valuable energy, particularly when dealing with flat packages.

Download

TITAN HPE-L BROCHURE Download
TITAN HPE-L MANUAL Download
