TITAN DCR-PNEUMATIC SEALER

TITAN DCR-PNEUMATIC SEALER

The Titan Pneumatic Sealer DCR stands as the quintessential handheld tool catering to the most demanding joining needs within the Lifting & Lashing domain.

Enquiry Form

Contact us Please contact us for wholesale pricing or freight discounts for larger orders.
Contact us
View full details

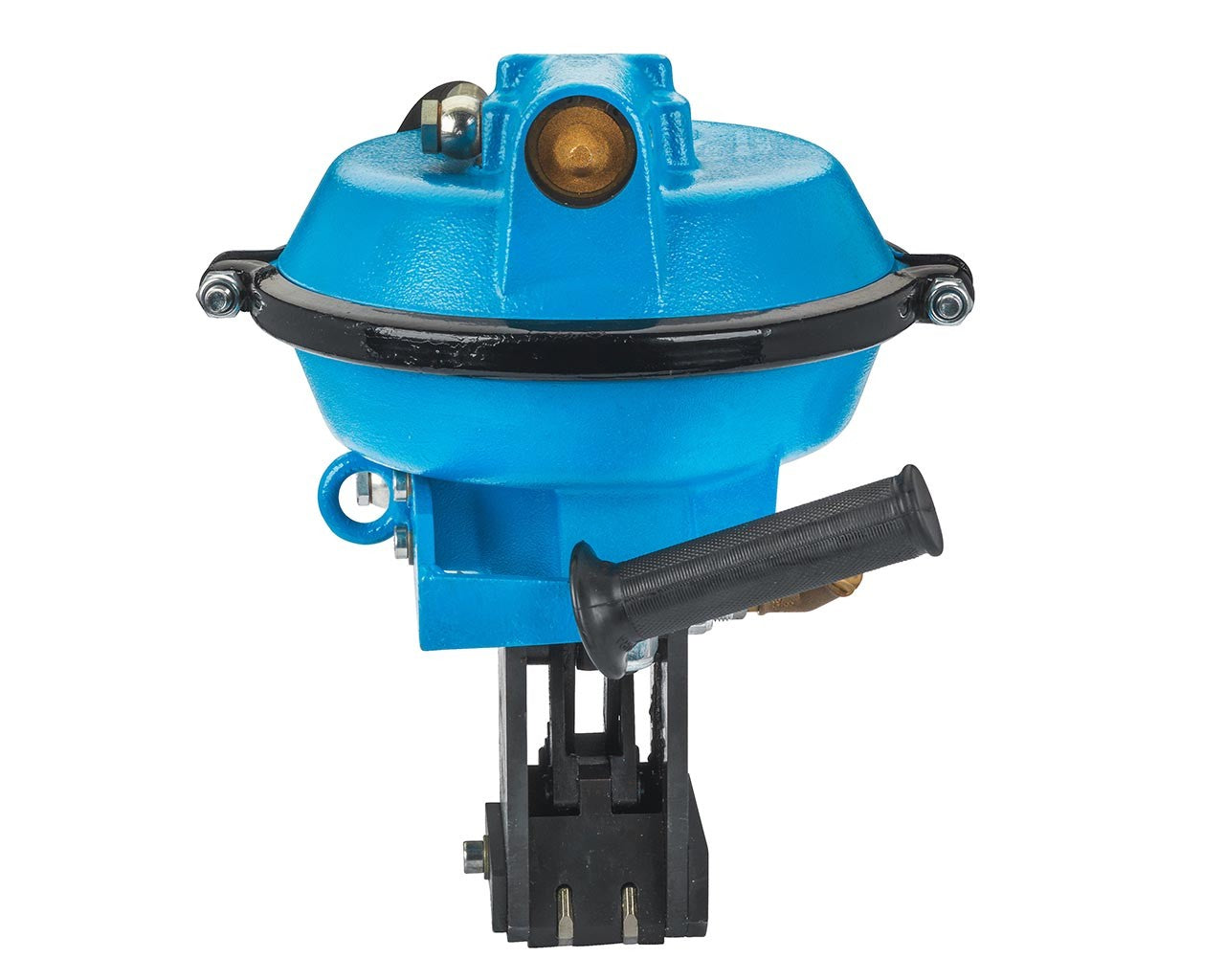

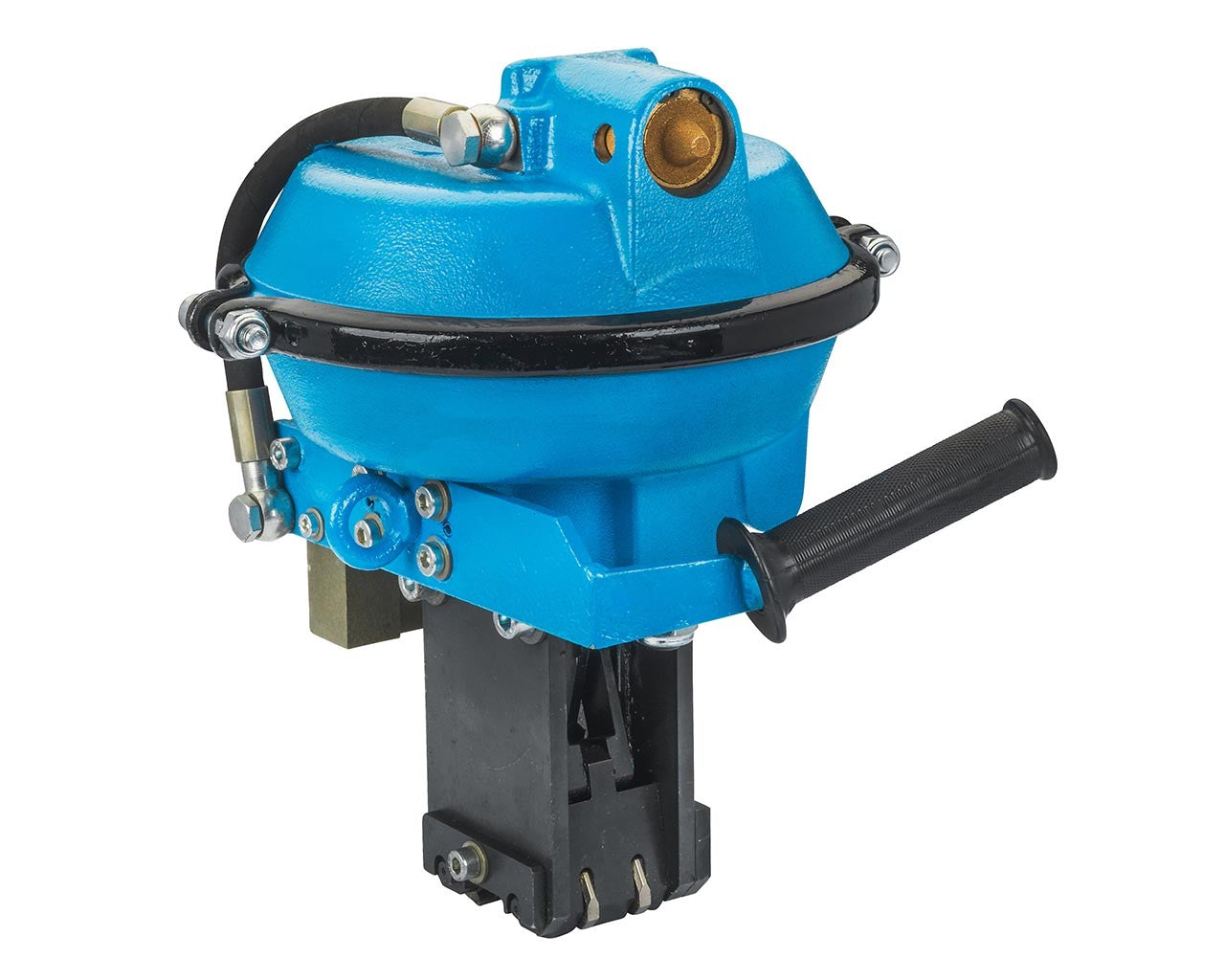

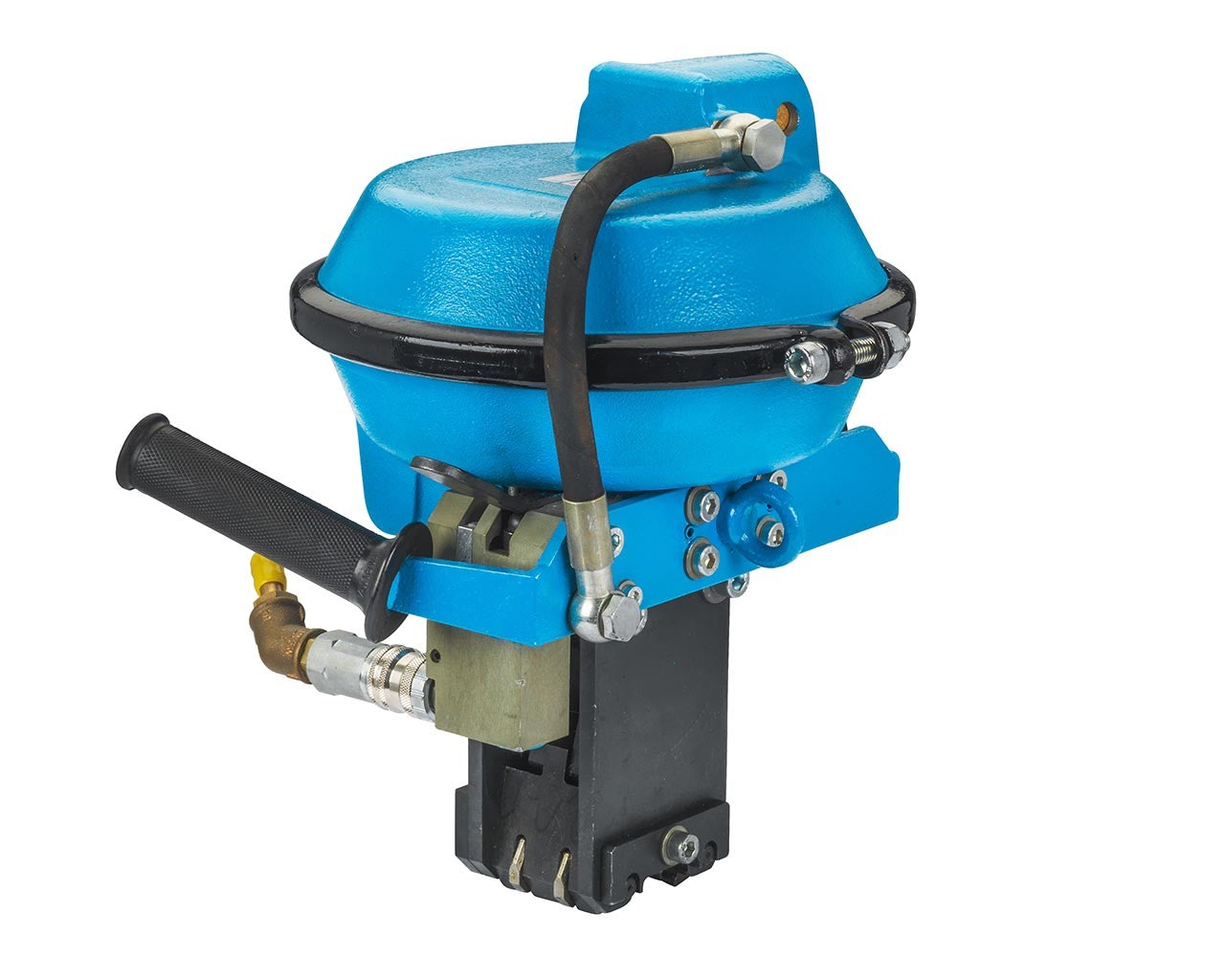

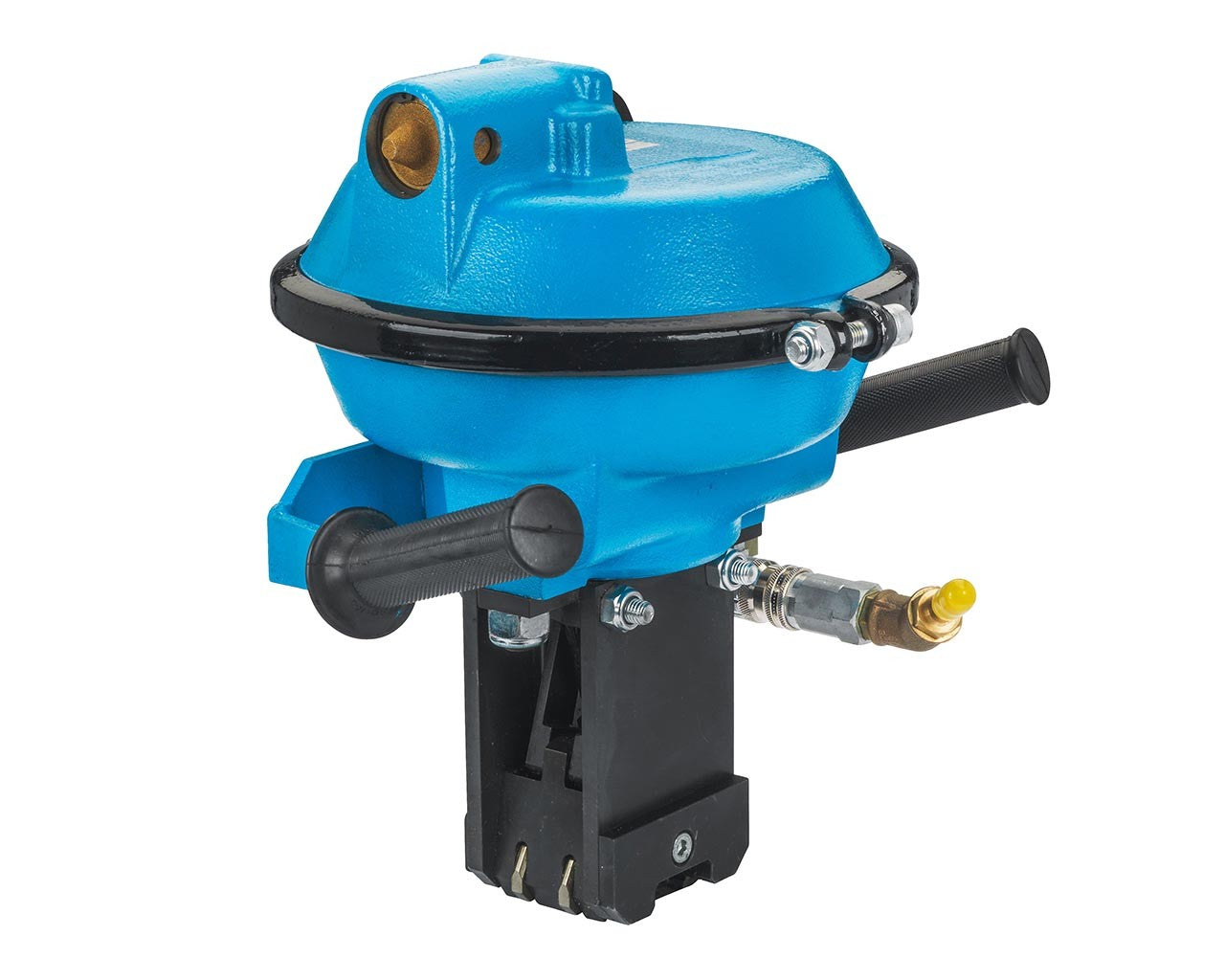

TITAN PNEUMATIC SEALER

The Titan Pneumatic Sealer DCR stands as the quintessential handheld tool catering to the most demanding joining needs within the Lifting & Lashing domain.

Its distinctive advantage lies in the streamlined and potent double crimping mechanism, which not only accelerates the joining process but also guarantees remarkable end strapping reliability.

TITAN DCR

The procedure unfolds in two stages: Initially, steel straps with dimensions ranging from 32 x 0.8 mm to 32 x 1.45 mm undergo tensioning via the TITAN tensioner PLC. Subsequently, the DCR sealer comes into play, utilizing the established double-crimping technique

TITAN DCR ADVANTAGES

  • Lashing & Lifting: Excellent for load securing for rail and sea transport

TITAN DCR TECHNICAL FEATURES

  • Type of strap - Steel Strap
  • Strap width - 32mm
  • Strap thickness - 0.80 - 1.45mm
  • Kind of seal - Crimp-joint (double notch)
  • Sealing strength (depending on strap quality, strap dimensions) - up to 85 –
    95% of the strap breaking load
TITAN DCR TECHNICAL DATA
Kind of drive (Sealing)
Pneumatic
Seal Type
NCR
Weight
11KG
Air pressure
and Max. 7 bar flow pressure

Download

https://cdn.shopify.com/s/files/1/0561/0510/7518/files/dcr-data-sheet.pdf?v=1760328928 Download
