ATLANTA STRETCH SKU: XF-3110L

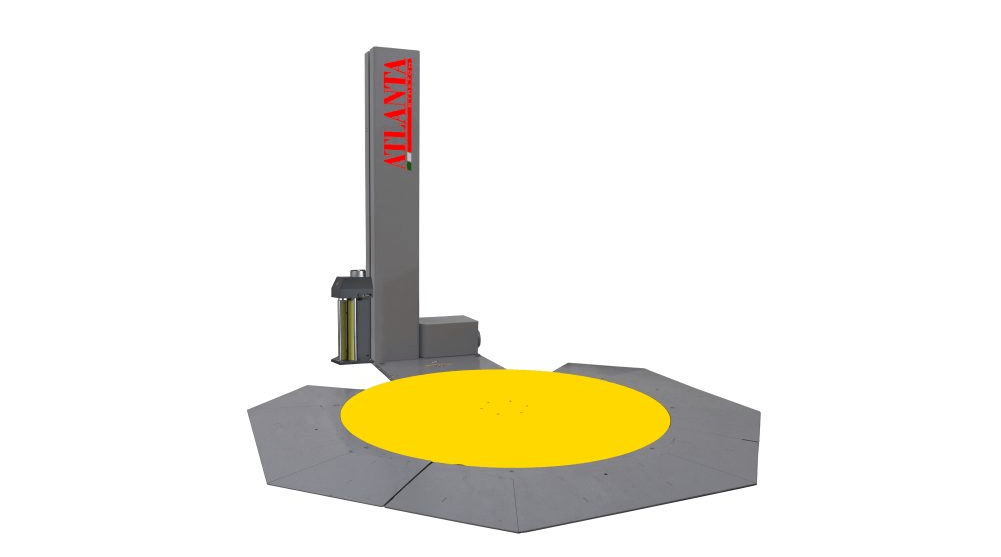

Synthesi – Low Profile pallet wrapper

Synthesi – Low Profile pallet wrapper

The Synthesi low profile, its a cost effective low profile pallet wrapper, made for warehouses with low space for longer ramps and use pallet jacks. The Synthesi features a friction Brake carriage but can be upgraded to other carriages on request.

$17,600.00
$17,600.00
Sale Sold out
Tax included.

Low stock: 1 left

View full details

Atlanta Stretch Pallet wrappers

MPS sell pallet wrappers from international brand and Italian manufacturer ATLANTA STRETCH. ATLANTA STRETCH pallet wrappers are used throughout the world and known for their robustness, low maintenance and low cost of ownership.

MPS buy direct and sell direct, offering end users an unbeatable price for a high quality Italian made pallet wrappers.

Low Profile pallet wrapper

  • The Synthesi is a low cost, but durable pallet wrapper
  • Equipped with FM carriage (Friction)
  • Save space on longer ramps
  • Durable push button panel interface
  • High quality low profile bearings
  • Enclosed mast design
  • Carraige at side of machine to wrap low on pallets

Low profile pallet wrapper Video

  • Video shows Synthesi in black/ grey, new models will be teal and slate grey
  • Video shows FM friction Carriage (Standard carriage unless otherwise quoted)

Machine info

  • Automatic 1 Button Push start
  • Friction Brake. 0-100% Stretch.
  • Automatic pallet Height detection
  • 3 Fully adjustable Auto programs, Plus manual mode of operation.
  • 18 adjustable parameters, see below for complete list.
  • 1250kg Capacity
  • 2450mm Wrapping height
  • 1650mm diameter turntable for Australian and export pallets.
  • Made in Italy by Atlanta Stretch.
  • Built with Siemens electrical components.

Cycle options

  • Double cycle (Upwards / Downwards)
  • Single cycle (Only upwards or only downwards)
  •  Top sheet cycle
  • Wrapping cycle with altimeter (Photocell Off)
  • Wrapping cycle with pre-set starting and stopping height
  • 3 + 1 selectable wrapping programs
  • Wrapping cycle with manual drive by push-buttons of the carriage Up / Down
  • Push-buttons for manual function

The Synthesi as standard has a friction mechanical Brake

  • Brake system by means of tension roller
  • Manually adjustable from carriage
  • Film reel specs Max. outside diameter Ø 250 mm – Height = 500 mm
  • Core Ø76mm
  • Mounted on opposite side to the control panel to keep users clear of it during operation.
  • Turntable Ø 1650 mm
  • Max. load weight: 1200Kg
  • Wrapping height (Pallet included) 2450mm
  • Base-frame turntable height 25mm
  • Load height sensing photocell and altimeter –
  • Acceleration / Deceleration ramps controlled by frequency changer
  • Spool carriage upwards/downwards speeds controlled by frequency changer
  •  Safety carriage foot protection
  •  Beeper at cycle start and phase stopping at cycle end
  • Emergency mushroom & reset push-button
  • Enclosed mast design with chain drive.
Synthesi - Low profile Technical info
Total installed power
0,75 KW – 1,00 KW
Standard input voltage
230V mono-phase – 50/60 Hhz 10AMP
Outlet
and AU standard plug

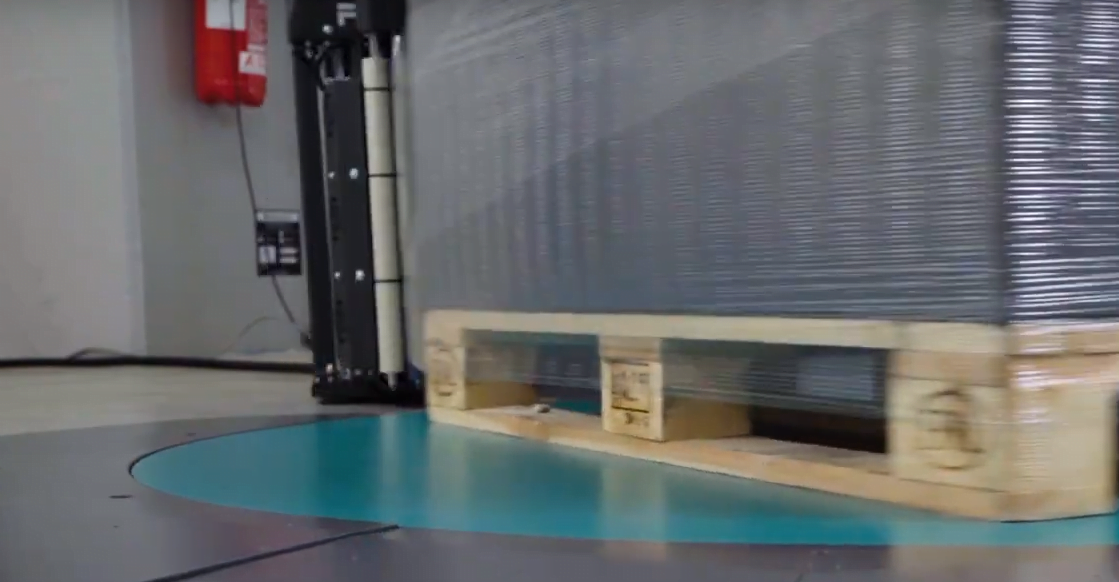

Low wrapping

ATLANTA STRETCH low profile wrappers are engineered from the start to be the highest quality low profile pallet wrapper on the market, that starts with the design and engineering.

  • The Atlanta carriage is mounted at the side of the machine, this allows the carriage to get lower than all other models on the market.
  • Side mounted carriage does not compromise on safety, still features anti foot crush plate.

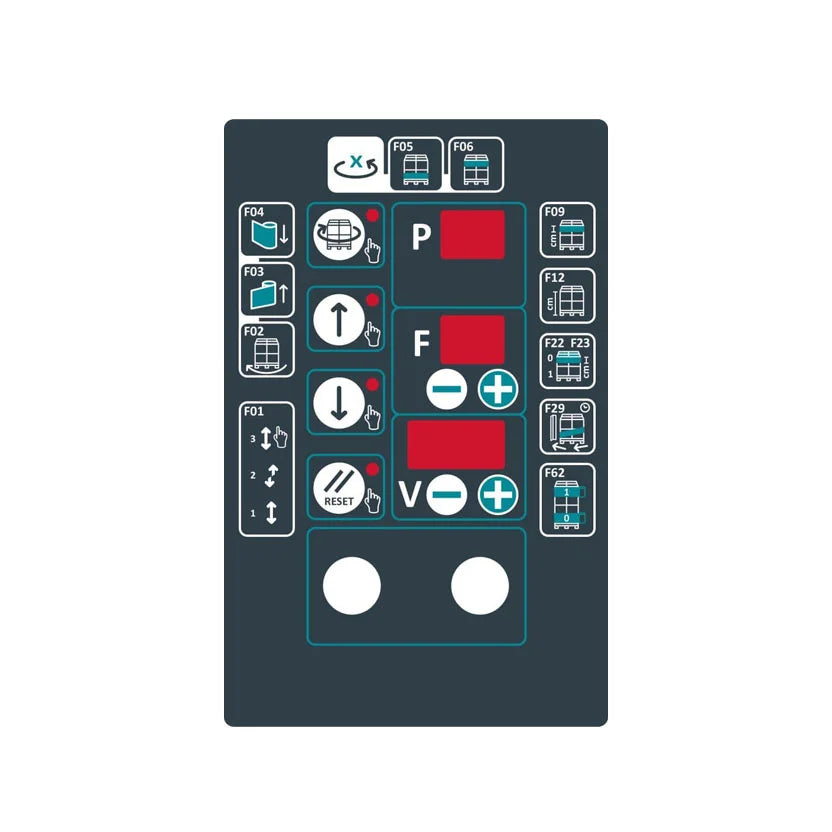

Synthesi Panel

Synthesi Features durable panel and push buttons

  • Bottom pallet wrapping rounds from 1 to 10
  • Top pallet wrapping rounds from 1 to 10 Rotation speed adjustable from 5 to 12 rpm
  • Spool carriage speed upwards and downwards independently adjustable
  • Spool carriage speed upwards speed from 1,3 up to 5,4 m/min
  • Spool carriage speed downwards speed from 1,3 up to 5,4 m/min
  • All function parameters settable on display
  • Photocell sensing delay

Use of industrial Components

Industrial design & Components

Atlanta stretch build machines with ease of replacement parts in mind. where possible they use commercially available industrial components. Current machines use Siemens inverters and the power supply and buttons are all generic.

High quality belt drive

Belt drive

The Synthesi features a market leading belt drive. Because low profile wrappers are built with a solid base, they are prone to vibration. As the pallet moves, especially on uneven concrete the whole wrapper moves. The belt drive allows the unit to absorb vibration and maintenance cost.

An added feature of the belt is it will not rust, Low profile wrappers are commonly used in food environments, where they are washed down. This can lead to to more frequent replacement of chains or extreme cost to replace rusted or broken clogs on gear drive.

Generic components for high ware buttons

Industrial buttons

The Synthesi makes use of industrial buttons for the high use start, stop, enabling, main isolation power and emergency stop. The buttons are quick and easy to replace if they ware out or break and easily obtainable from your local electronics supplier.

ATLANTA STRETCH use highly available commercial industrial components, making ATLANTA STRETCH machines the lowest cost of ownership machines on the market.

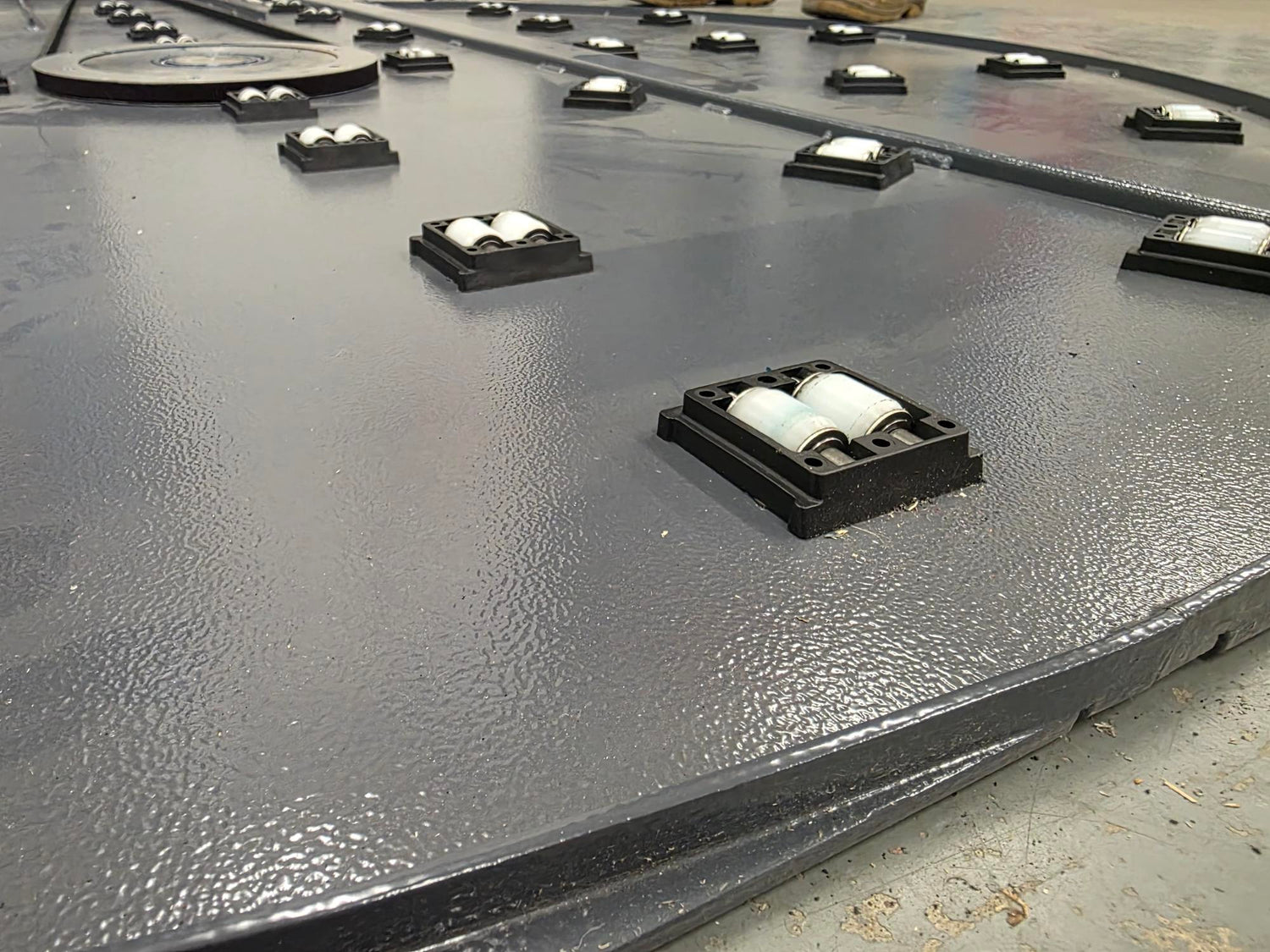

Heavy duty Bearings

Low profile bearings

Not all low profile wrappers are built evenly, another features which separates ATLANTA stretch low profile wrappers are its duel bearings. The bearings feature a plastic outer which is self lubricating. the bearings are slow not prone to clogging up with grease and debris because of their design.

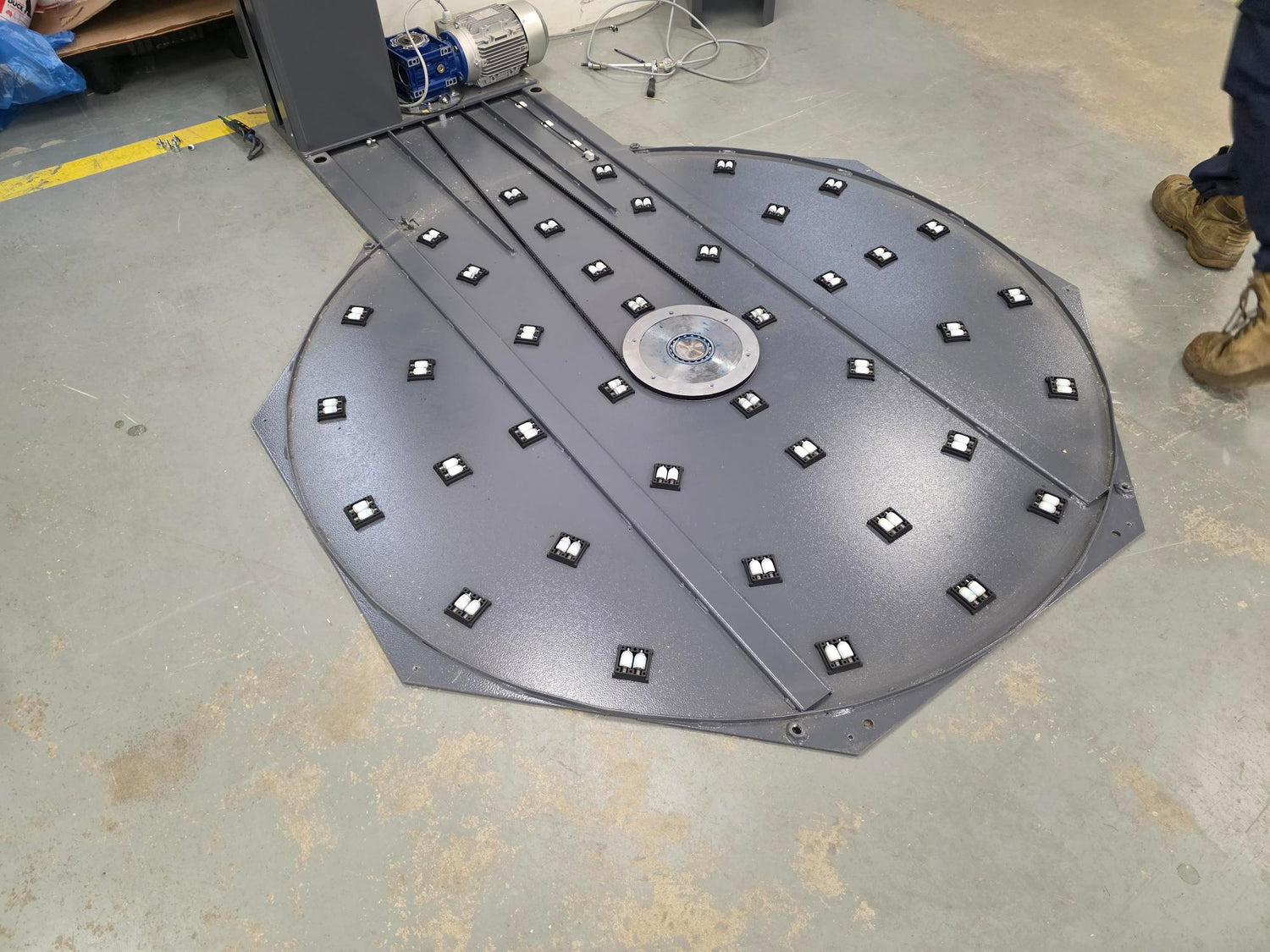

The wrapper featured here is been serviced after 1 year of use, it may as well be new.

safe for all

Fully enclosed mast design

Atlanta stretch build machines with a fully enclosed mast design, this means that all components for the carriage to operate are inside the mast, the upper and lower limit switches, the chain, cable loom, microswitches and the main bearings of the flange are all internal.

This internal design design means there is less chance of components failing due to dust or moisture, they cant be knocked and people cant get their fingers in there.

See our pallet wrapper showroom

Dedicated pallet wrapper showroom

If you want to compare models up close, that's no problem, we have a dedicated showroom where we have a range of models setup for comparison,
