ATLANTA STRETCH SKU: XF-N3A

Neos – Pallet Wrapping Robot PRS With Ayra XF-N3A

Neos – Pallet Wrapping Robot PRS With Ayra XF-N3A

Neos pallet wrapping robot, Italian made, equipped with the Arya automatic attach system.

Enquiry Form

Made In Italy This product is made in Italy.
Forklift You will need a forklift to unload this
MPS Imported and distributed by MPS
Install and training included Install and training included in Melbourne, Sydney, Brisbane and Adelaide.
Contact us Please contact us for wholesale pricing or freight discounts for larger orders.
Contact us
View full details

The Neos pallet wrapping robot is a high end robot built by Atlanta stretch in Italy, featuring, HMI Panel, Powered prestretch head unit, safety stop bumper and operation light tower the Neos is a cut ahead of the competition.

This Neos is equipped with the Ayra auto attach and cut off system. Atlanta stretch is the only manufacturer capable of producing an automatic robot.

No need for an oversized machine or turntable, it can wrap anything or square or rectangular shape.

Feature Summery.

  • PRS carriage, Stretch 1m to 3M
  • Automatic pallet Height detection

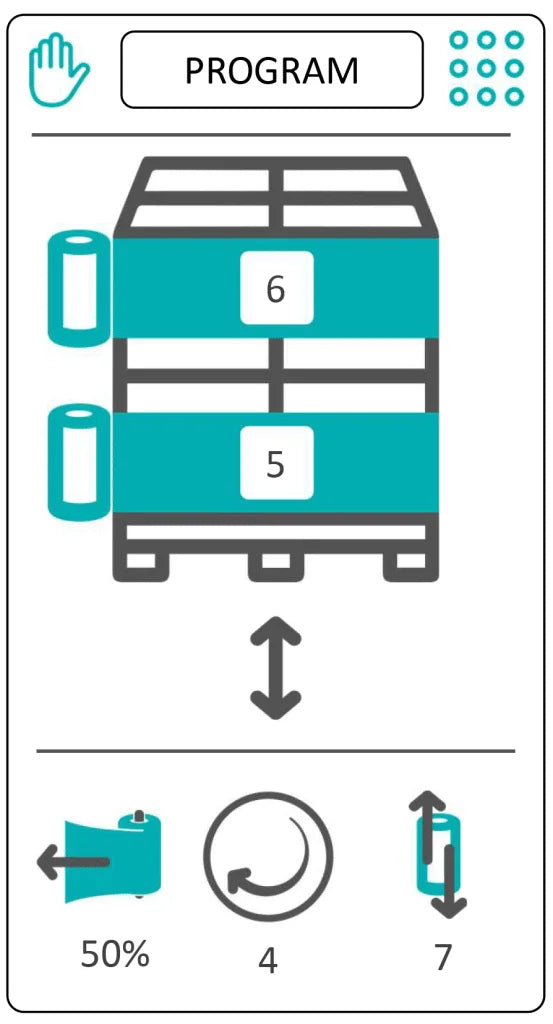

  • Full color Touchscreen LCD interface.
  • 99 Fully adjustable Auto programs
  • Over 30 adjustable parameters, see below for complete list.
  • wrap unlimited size and weight goods.
  • 2500mm Wrapping height (TBC)
  • 1650mm diameter turntable for Australian and export pallets.
  • Made in Italy by Atlanta Stretch.

PARAMETERS ADJUSTABLE FROM CONTROL PANEL:

  • Bottom pallet wrapping rounds from 1 to 10
  • Top pallet wrapping rounds from 1 to 10
  • Rotation speed adjustable from 5 to 12 rpm
  • Spool carriage speed upwards and downwards independently adjustable
  • Spool carriage speed upwards speed from 1,3 up to 5,4 m/min
  • Spool carriage speed downwards speed from 1,3 up to 5,4 m/min
  • All function parameters settable on display
  • Photocell sensing delay
  • All function parameters settable on display
  • Weight of film used (Option on PRS – PS)
  • Key block

The ayra Automatic system

The Ayra system, blows pallet wrapping onto the pallet, for automatic attachment of film, the auto cut then cuts it off after wrapping the pallet.

The ayra system is all electric and uses 6 fans to blow wrapping from the robot to the pallet. Eliminating time to attach wrapping to the pallet.

  • Nr. 2 AGM batteries 12 V – 120 Ah serial connected (Sealed & without maintenance)
  • Autonomy 160 pallets per charge – charging time: 8 -10 hours
  • Integrated high frequency battery charger with led-control
  • Wrapping height “Machine with MAST (Pallet included) 2450MM
  • Load height sensing photocell
  • Adjustable change coil, carriage service height
  • Beeper at cycle start and phase stopping at cycle end
  • Emergency mushroom button according to CE Norms
  • Flashing light during movement of machine
TECHNICAL FEATURES NEOS:
Total installed power
0,75 KW – 1,00 KW (with carriage PRS / PS
Standard input voltage
230V mono-phase – 50/60 Hhz 10AMP
Outlet
and AU standard plug

BASIC CYCLES SELECTABLE FROM CONTROL PANEL:

  • 99 wrapping programs created by the operator
  • F01 – 1 – Double cycle (Upwards/Downwards)
  • F01 – 2 – Single cycle (Only upwards or only downwards)
  • F10 – F11 – Wrapping cycle with start and stop height pre-programmed
  • F12 – Wrapping cycle with altimeter (Photocell Off)
  • F21 – Wrapping cycle for pallets with large dimensions
  • F22 / F23 – Top sheet cycle
  • F29 – Softstart cycle to apply manually corner protectors
  • F30 – F31 – Wrapping cycle with reinforcement and settable number of wraps
  • Softstart cycle to reduce film tear on sharp pallet angles
  • Wrapping cycle with manual or motorized roping system (If optional installed)

PRS – Power Roller Stretch

–Capable of stretching wrap to predefined rations, 150%, 200% and 250% giving users excellent wrapping efficiency. (x2.5 – 3.5 yield)

if you’re a higher volume user wrapping over 30 pallets per day, the Neos Pallet wrapping robot with its advanced PRS stretch wrap from 1m to 3.5m for 250% prestretch. This could potentially save you thousands per year on wrapping costs. The Advanced PRS powered prestretch system can save you thousands by stretching 1m of wrap to 3,5m,
