MPS Packaging Australia SKU: XS-TP601A

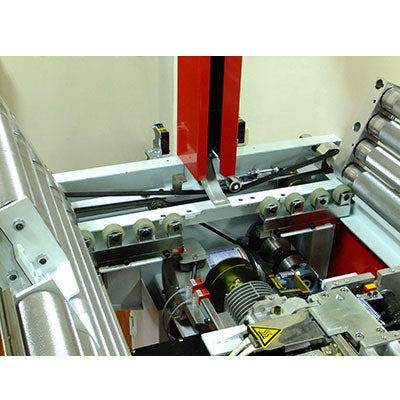

FULLY AUTOMATIC STRAPPING MACHINE WITH ROLLER DRIVEN TABLE TP-601A

FULLY AUTOMATIC STRAPPING MACHINE WITH ROLLER DRIVEN TABLE TP-601A

Tauris Transit TP-601A is a fully automatic strapping machine with roller-driven table. It is a simple to use and highly reliable strapping machine for general purpose applications.

Enquiry Form

Notify Me When Available
Contact us Please contact us for wholesale pricing or freight discounts for larger orders.
Contact us
View full details

Key Features

  • Durable & reliable strapping head
  • Automatic Strap feeding
  • Electronic tension control
  • Auto strap ejector to prevent misfeeds and minimize downtime
  • Belt transmission
  • Hinged top plates for easy access
  • Conveyor speed: 30 m/min
  • Versatile strapping modes – Single, Double, Continuous, or Transit Mode
  • Up & Downstream interlock with complete plug connection.
  • Easy bundle flow direction change
  • Strap end ejector

Available Options

  • Siemens PLC
  • Adjustable conveyor speed (18–42 meters/min)
  • Safety guards for enhanced protection and workplace safety
  • Foot pedal switch for convenient hands-free operation
Technical Data
Strap Width
8 mm
9mm
or 12 mm
Tension Range
7 - 70 kg (requires safety devices to meet CE regulations)
Capacity
Up to 18 packages/minute (60Hz)
Cycle speed
Up to 29 cycles/minute
Table Height
820 mm
Weight
335 kg
Electrical Requirements
and 220V
380V
400V
415V 50/60Hz 3PH
