19MM TITAN MAX-L 5500N – PNEUMATIC PUSHER TENSIONER

19MM TITAN MAX-L 5500N – PNEUMATIC PUSHER TENSIONER

The BPT-H32 is here, The swiss made battery steel strapping tensioner uses long 19mm 3436p or 32mm 5436P seals, its designed to replace pneumatic pusher tensioners with its high mobility better balance and lighter weight.

Enquiry Form

Locally sourced on request This product is ordered in and shipped on request.
Contact us Please contact us for wholesale pricing or freight discounts for larger orders.
Contact us
View full details

BPTH APPLICATIONS

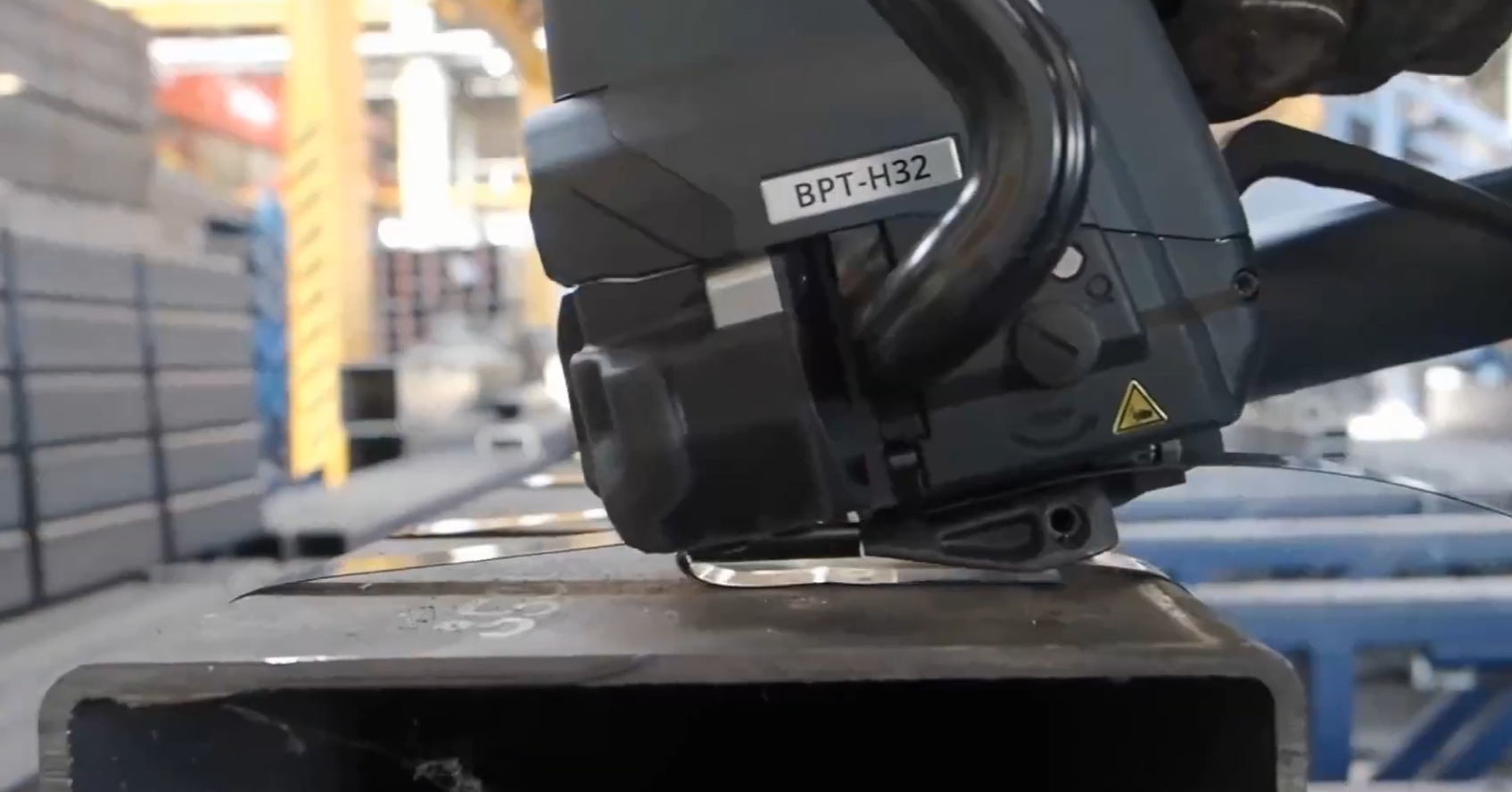

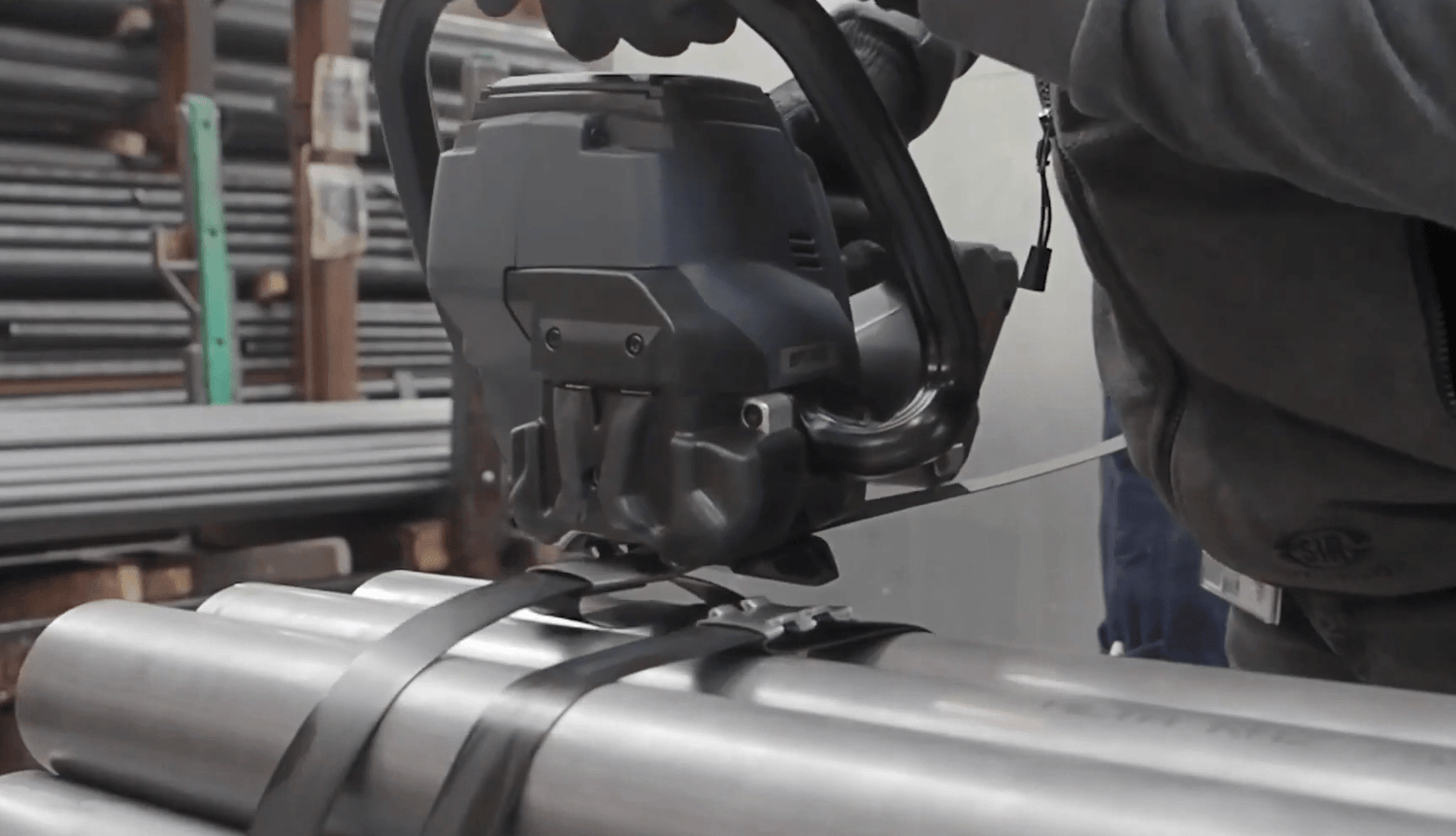

This High powered battery steel strapping tensioner is designed for use on small packs such as engineering bar or coils, small or round products where a normal flat pack tensioner isn’t mountable.


Advantages

  • Bosch 18v battery powered
  • Swiss made Design from proven quality manufacturer.
  • High mobility without hoses or pneumatic system.



BPTH-32 Video Info


This video shows the smaller smaller BPTL-19 and the larger BPTH-32mm.

The BPT-H strapping tool uses Bosch pro core batteries as its power source. The tool is brought in the size specific to the strap been used. Either 19mm or 32mm.

Highlights

Innovative
For outstanding reliability
Industry proven high quality tool
Protective and ergonomic design

Intuitive
For easy and fast operation
Digital user interface with touch pad adjustment
Favorite strapping function

Intelligent
For excellent and consistent performance
Real time indication of applied tension force
E-controlled strapping process

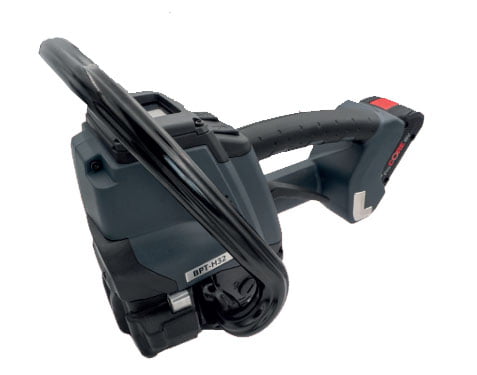

BPT-H Technical info
Operation Mode
auto / semi /manual
Tension force range
2000 - 7500 N
Tension speed
75 mm/s
Weight (incl. 4Ah battery)
8.3 kg
Dimension with bow (L x W x H)
405 x 283 x 270 mm
Seal type
double notch
Charger type
Bosch
Battery type (standard)
Bosch Li-Ion ProCORE 18V 4.0 Ah (8AH optional)
Strap thickness mm (inch)
0,80 - 1,00 (.031 - 0.40)
Strap width
and 19
25
32 mm (Brought as specific width)

Pusher tensioner



The BTH series of strapping tools are pusher tensioners, this means unlike flat pack tensioner which become stuck on smaller items, the pusher tension does not as it mounts and tensions behind the seal by a single strap.

Features and Benefits

Maximizes reliability
No more variation due to fluctuations in the air system – high performance battery and brushless motor technology provides an electronically controlled and reproducible strapping process. Intelligent features
include real time indication of the strapping status and visual and acoustic signals.

Simplifies operation
The BPT tools have an intuitive touchscreen user interface and allow a quick and comfortable adjustment of the strapping parameters depending on the package and even offer select-able manual, semi or fully automatic operation modes and a favorite setting.

Increases Efficiency
Upto 500 cycles per battery charge allow seamless and continuous operation with full mobility throughout the plant, not restricted by the reach of air hoses or air quality.

Mobile and reliable industrial performance
The BPT tool allows reproducible strapping applications with unlimited
mobility and without the tripping hazards and limitations of air
systems.

Download

Product Brochure -Overseas Download
