Automatic Pallet Wrapping Machine -Mytho Auto – Version XF6013

Automatic Pallet Wrapping Machine -Mytho Auto – Version XF6013

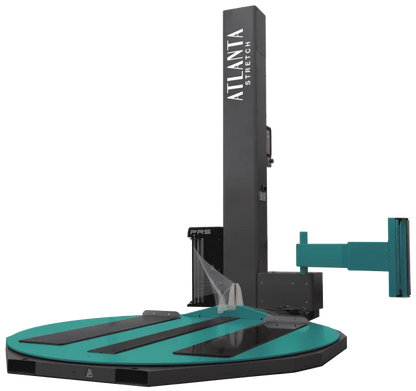

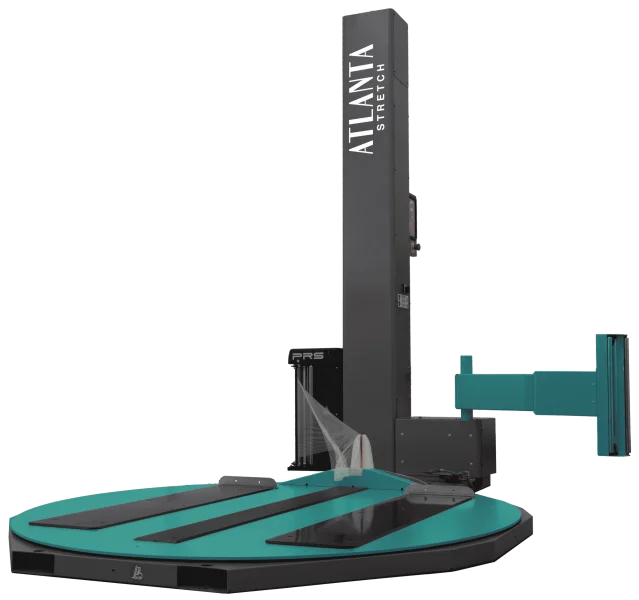

The Atlanta Stretch Mytho Automatic Pallet Wrapping Machine is our premium model, designed for high-volume warehouses that need maximum efficiency. Simply place a pallet on the turntable, press a button on the remote, and walk away. The Mytho will automatically wrap the pallet, leaving the film securely attached and the load ready for removal when you return. Each unit comes with two remote controls.

$38,500.00
$38,500.00
Sale Sold out
Tax included.
Made In Italy This product is made in Italy.
Forklift You will need a forklift to unload this
MPS Imported and distributed by MPS
Ships free to these Citys Price Includes, delivery to Melbourne, Sydney, Brisbane and Adelaide.
Install and training included Install and training included in Melbourne, Sydney, Brisbane and Adelaide.
Contact us Please contact us for wholesale pricing or freight discounts for larger orders.
Contact us
View full details

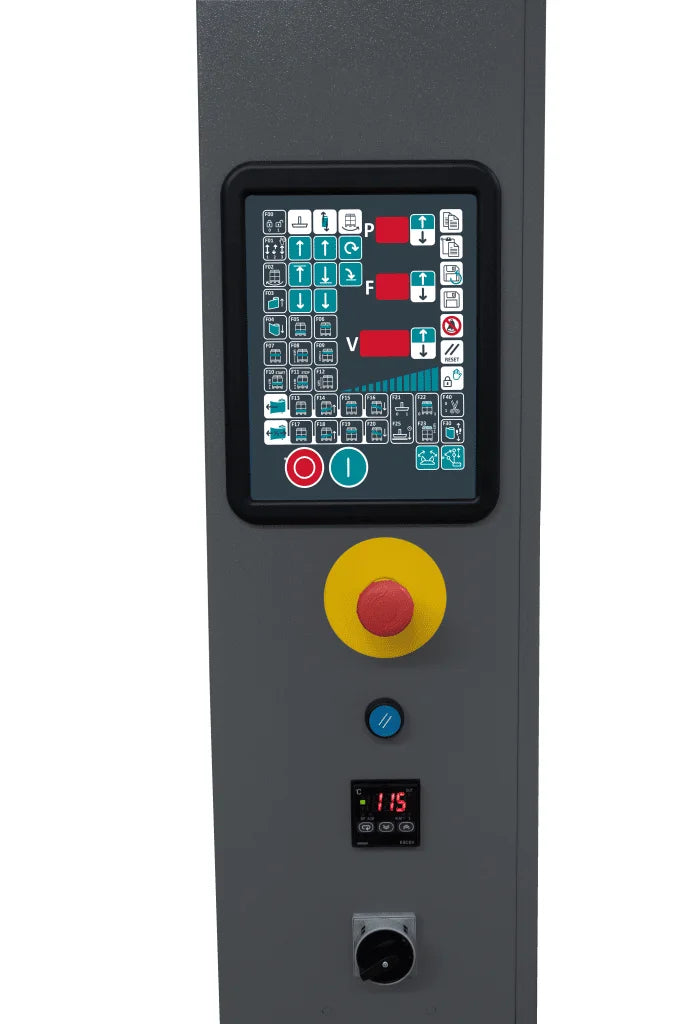

PARAMETERS ADJUSTABLE FROM CONTROL PANEL:

  • Bottom pallet wrapping rounds from 1 to 10
  • Top pallet wrapping rounds from 1 to 10
  • Rotation speed adjustable from 5 to 12 rpm
  • Spool carriage speed upwards and downwards independently adjustable
  • Spool carriage speed upwards speed from 1,3 up to 5,4 m/min
  • Spool carriage speed downwards speed from 1,3 up to 5,4 m/min
  • All function parameters settable on display
  • Photocell sensing delay
  • All function parameters settable on display
  • Weight of film used (Option on PRS – PS)
  • Key block

BASIC CYCLES SELECTABLE FROM CONTROL PANEL:

  • Double cycle (Upwards / Downwards)
  • Single cycle (Only upwards or only downwards)
  • Top sheet cycle
  • Wrapping cycle with altimeter (Photocell Off)
  • Wrapping cycle with start and stop height pre-programmed
  • Wrapping cycle with reinforcement and settable number of wraps
  • Wrapping cycle with step rising of spool carriage
  • Manual wrapping programme
  •  Push-buttons for manual functions

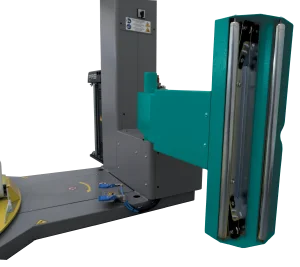

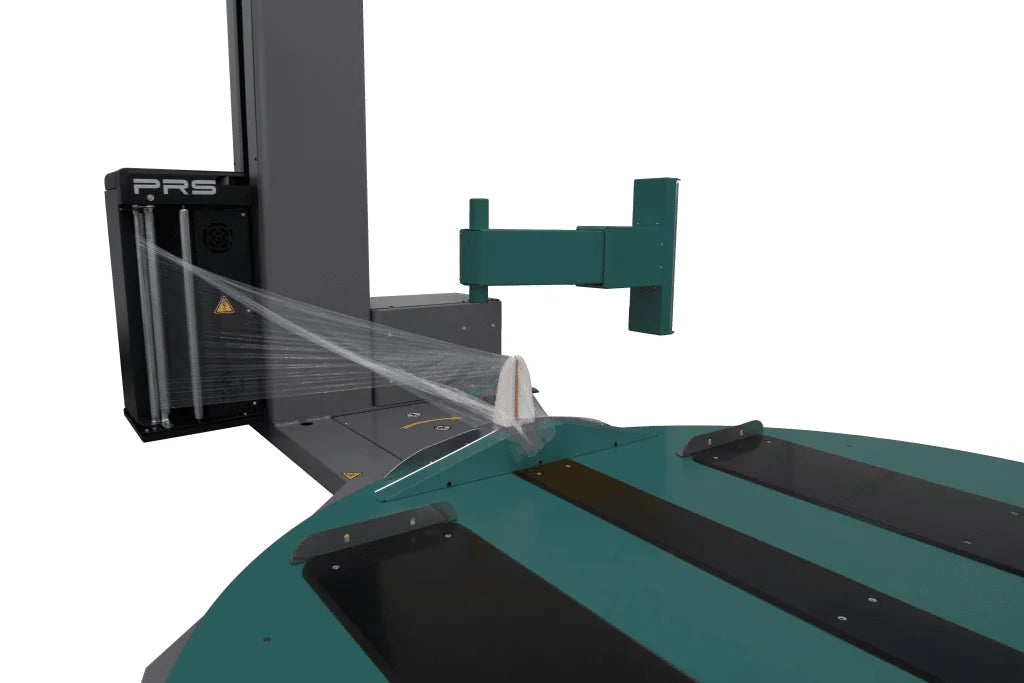

FILM CARRIAGE OPTIONS:

The Mytho auto, XF-6013 version is equipped with a PRS film carriage. Capable of stretching wrap from 1m to 3.5m

TECHNICAL FEATURES:

  • Turntable Ø 1800 mm
  • Max. load weight: 2000 Kg
  • Wrapping height (Pallet included) 2500 mm
  • Base-frame turntable height 75mm
  • Load height sensing photocell and altimeter
  • Acceleration / Deceleration ramps controlled by frequency changer
  • Spool carriage upwards/downwards speeds controlled by frequency changer
  •  Safety carriage foot protection
  •  Beeper at cycle start and phase stopping at cycle end
  • Emergency mushroom & reset push-button according to latest CE Norms
  • Safe enclosed mast design with chain drive.
Power Requirements
Total installed power
1,00 KW (with carriage PRS/PS)
Standard input voltage
230V mono-phase - 50/60 Hhz 10AMP
Outlet
AU Standard plug
Pneumatic Pressure
and 6 bar

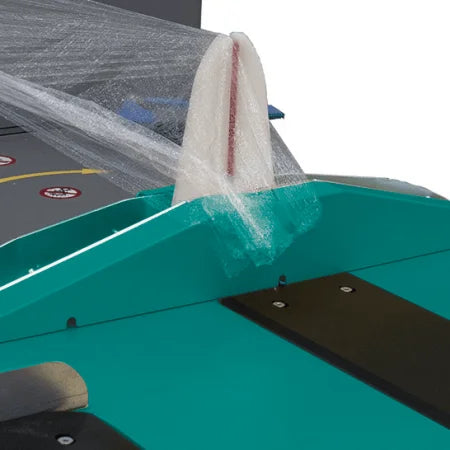

Sealing Head

The Mytho Auto can be equipped with 2 options for sealing heads, the standard foam pad option and the heat seal welding head for operators looking to have a "no dag" solution to wrapping.

ADVANTAGES:

  • Remote control
  • Italian Made by Atlanta Stretch
  • High Yield PRS carriage 1m of wrap makes 3.5m
  • Advanced Interface
  • 240v, 6 Bar plug and Play

Frequently Asked Questions

Where and who by is this machine built?

Our pallet wrapping machines are built in Italy by Atlanta Stretch. MPS Australia is the direct importer for Atlanta stretch and seller of machines to end users. This allows customers to have an Atlanta stretch machine and spare parts at the best possible price.

Do I need any special power requirements to run this Machine?

No, the machine will fit into any standard 230/240v AU plug. 10Amp Plug.
You will also need a 6 bar of pneumatic pressure to run the Mytho auto.
