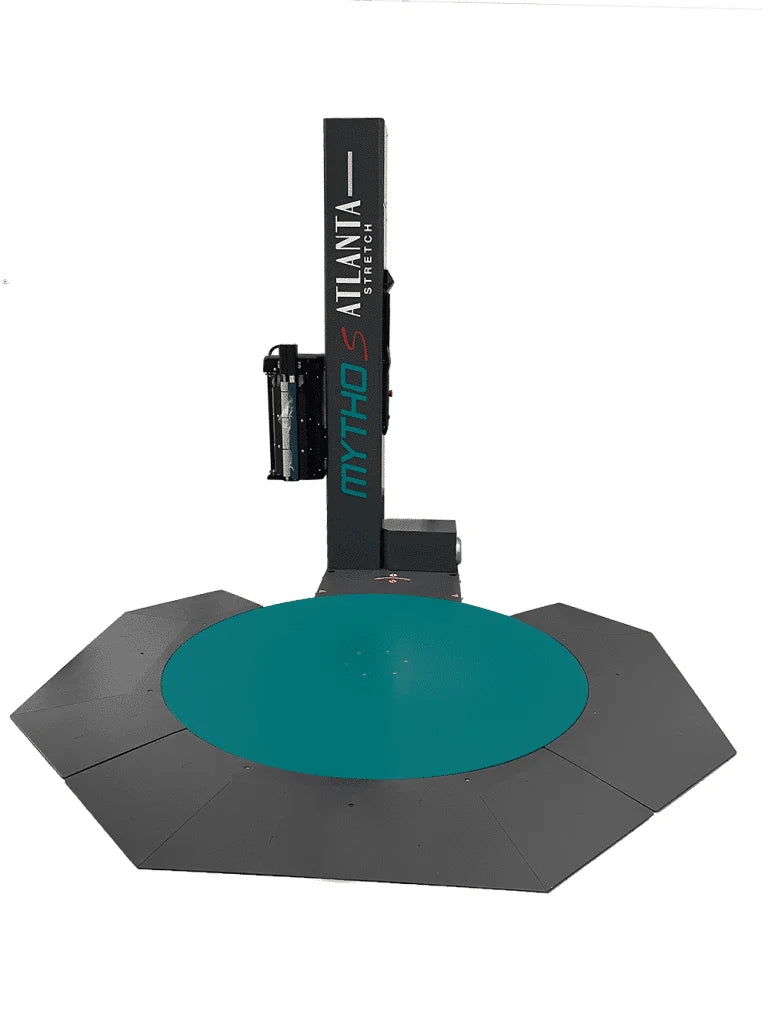

Mytho S AYRA PRS Low – Automatic Low Profile pallet wrapper

Mytho S AYRA PRS Low – Automatic Low Profile pallet wrapper

The Mytho S low profile is the market leader in low profile pallet wrapper in quality and engineering, equipped with ATLANTA STRETCHES HMI panel and the 250% PRS or 350% PS carriages, the Mytho S low is unmatched in stretch wrap yield capabilities.

The Mytho S can be equipped with the ATLANTA Stretch Ayra system, making it the only low profile pallet wrapper in the world with automatic functions.
$28,600.00
$28,600.00
Sale Sold out
Tax included.

In stock

View full details

Atlanta Stretch Pallet wrappers

MPS sell pallet wrappers from international brand and Italian manufacturer ATLANTA STRETCH. ATLANTA STRETCH pallet wrappers are used throughout the world and known for their robustness, low maintenance and low cost of ownership.

MPS buy direct and sell direct, offering end users an unbeatable price for a high quality Italian made pallet wrappers.

  • The Mytho S ayra low profile is the gold standard of low profile pallet wrappers. The Atlanta stretch are the only manufacturer in the world capable of producing a low profile pallet wrapper with automatic attach and cut functions. Our XF-5113SLA configuration comes standard with.
  • Black eye sensor
  • Light tower
  • HMI Panel
  • Ayra Automatic attach and cut system

This makes the XF-5113SLA, the most advanced and equipped low profile machine on the market.

ATLANTA STRETCHs network capable industry 4.0 screen makes changing settings on the Mytho S easy. The screen in intuitive, fast to use and responsive. If users want to just wrap they can click the Big green physical start button under the panel.

SAVE THOUSANDS ON WRAPPING COST

If you’re a higher volume user wrapping over 30 pallets per day, the Mytho S pallet wrapping machine equipped with the PRS stretches wrap from 1m to 3.5m for 250% prestretch. This could potentially save you thousands per year on wrapping costs. The Advanced PRS powered prestretch system can save you thousands by stretching 1m of wrap to 3.5m.

Feature Summery.

  • PRS carriage, Stretch 1m to 3M
  • Automatic pallet Height detection
  • Auto film cutting (Bolt on option, not included in price unless stated)
  • Full color Touchscreen LCD interface.
  • 99 Fully adjustable Auto programs, Plus manual mode of operation.
  • Over 30 adjustable parameters, see below for complete list.
  • 2000kg Capacity
  • 2450mm Wrapping height
  • 1650mm diameter turntable for Australian and export pallets.
  • Made in Italy by Atlanta Stretch.
  • Built with  Siemens inverters and omron electrics.

PARAMETERS ADJUSTABLE FROM CONTROL PANEL:

  • Bottom pallet wrapping rounds from 1 to 10
  • Top pallet wrapping rounds from 1 to 10
  • Rotation speed adjustable from 5 to 12 rpm
  • Spool carriage speed upwards and downwards independently adjustable
  • Spool carriage speed upwards speed from 1,3 up to 5,4 m/min
  • Spool carriage speed downwards speed from 1,3 up to 5,4 m/min
  • All function parameters settable on display
  • Photocell sensing delay
  • All function parameters settable on display
  • Weight of film used (Option on PRS – PS)
  • Key block

  • Turntable Ø 1650 mm
  • Max. load weight: 1200Kg
  • Wrapping height (Pallet included) 2450mm
  • Base-frame turntable height 25mm
  • Load height sensing photocell and altimeter – BLACK PHOTO EYE SENSOR
  • Acceleration / Deceleration ramps controlled by frequency changer
  • Spool carriage upwards/downwards speeds controlled by frequency changer
  •  Safety carriage foot protection
  •  Beeper at cycle start and phase stopping at cycle end
  • Emergency mushroom & reset push-button according to latest CE Norms
  • Safe enclosed mast design with chain drive.
TECHNICAL FEATURES:
Total installed power
0,75 KW – 1,00 KW (with carriage PRS / PS)
Standard input voltage
230V mono-phase – 50/60 Hhz 10AMP
Outlet
and AU standard plug

BASIC CYCLES SELECTABLE FROM CONTROL PANEL:

  • Double cycle (Upwards / Downwards)
  • Single cycle (Only upwards or only downwards)
  • Top sheet cycle
  • Wrapping cycle with altimeter (Photocell Off)
  • Wrapping cycle with start and stop height pre-programmed
  • Wrapping cycle with reinforcement and settable number of wraps
  • Wrapping cycle with step rising of spool carriage
  • Slow softstart for applying corner protectors
  • Step cycle mode for wrapping reinforcement and settable number of reinforcement wraps.
  • Manual wrapping program
  •  Push-buttons for manual functions
  • The Mytho S Low carriage is mounted to the side of the turntable, this allows the carriage to get extra low. Allowing your goods to be wrapped lower than any front mounted carriage can achieve.
  • The side mounted carriage also keeps the valuable carriage safer to the side of the machine.
  • Fully vertical carriage (Vs tilted), gives even tension on the rollers, no neck down of film and promotes even ware on carriage roller and bearings.
  • Side mount carriage allows for short machine length and smaller machine footprint vs front mounted carriage. The Mytho S low is only 2300mm Long.

The Atlanta ramp is 400mm long with a turntable height of 25mm, Making its angle 3.57 degrees, this makes any product easy to push up the ramps, especially when compared to shorter ramps with an angle of over 5 degrees.

High quality bearings, Atlanta stretch bearings are high quality and robust. And due to our diligence when placing or advising a low profile machine, we have never had to replace a turntable bearing.

The Atlanta Pallet wrapper is 25mm high, thats only 1mm taller than the Australian 10 cent piece!

Use of industrial Components

Industrial design & Components

Atlanta stretch build machines with ease of replacement parts in mind. where possible they use commercially available industrial components. Current machines use Siemens inverters and the power supply and buttons are all generic.

Added feature

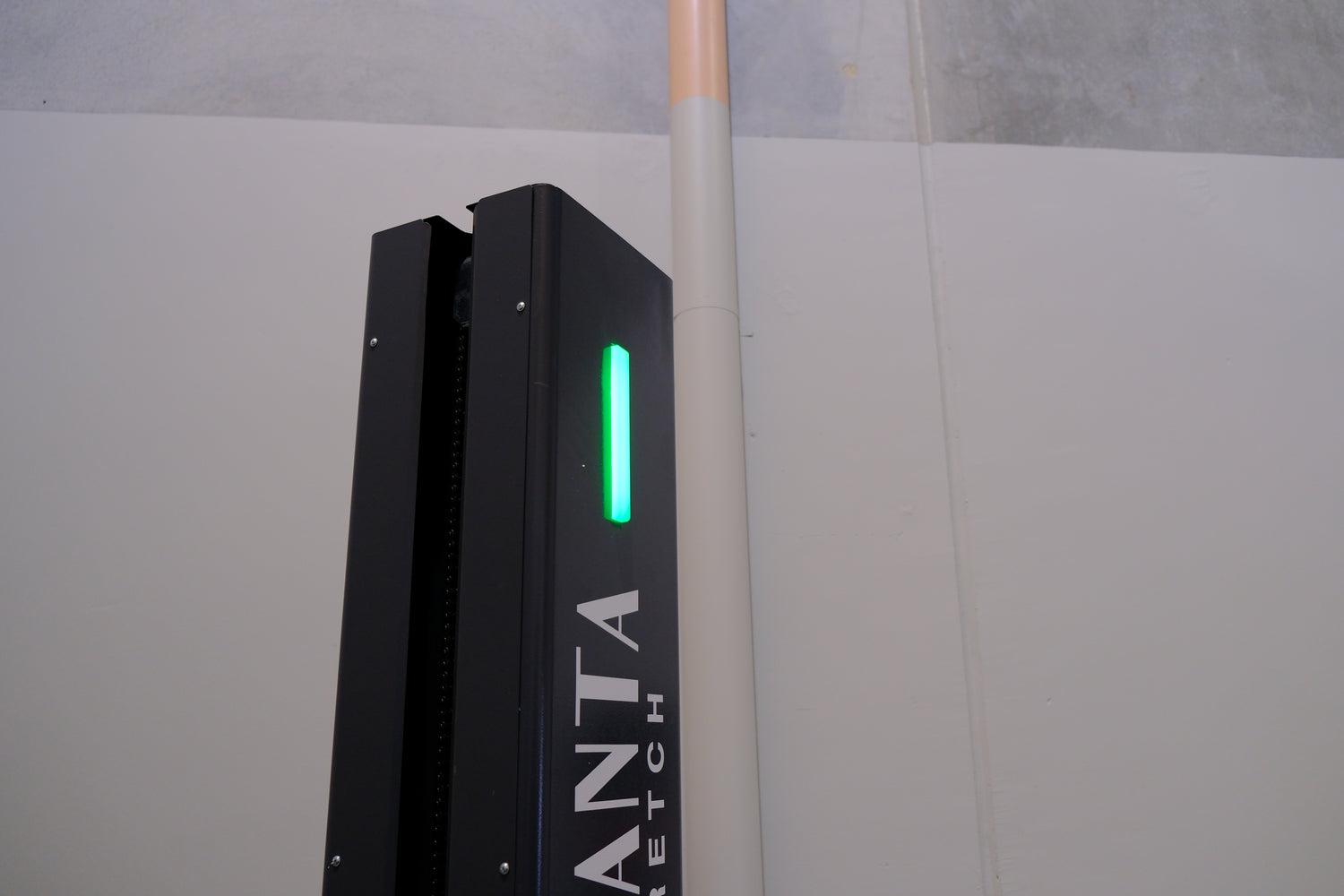

Light tower

The Mytho S range includes a light tower of standard, giving users clear notifications of operational status and any problems from a
distance.

Generic components for high ware buttons

Industrial buttons

The Mytho S model makes use of industrial buttons for the high use start, stop, enabling, main isolator and emergency stop. The buttons are quick and easy to replace if they ware out or break and easily obtainable from your local electronics supplier.

Atlanta stretch dont try to lock you into using their parts and buttons. Their goal is to build a robust machine with low service requirments in mind.

The east to use HMI panel on this image is from the Mytho S model.

Safety feature

Alarm on carriage door

Our machine features a safety alarm on the carriage door, so when the carriage door is open no motors can run to insure the upmost user safety.

Part highlight

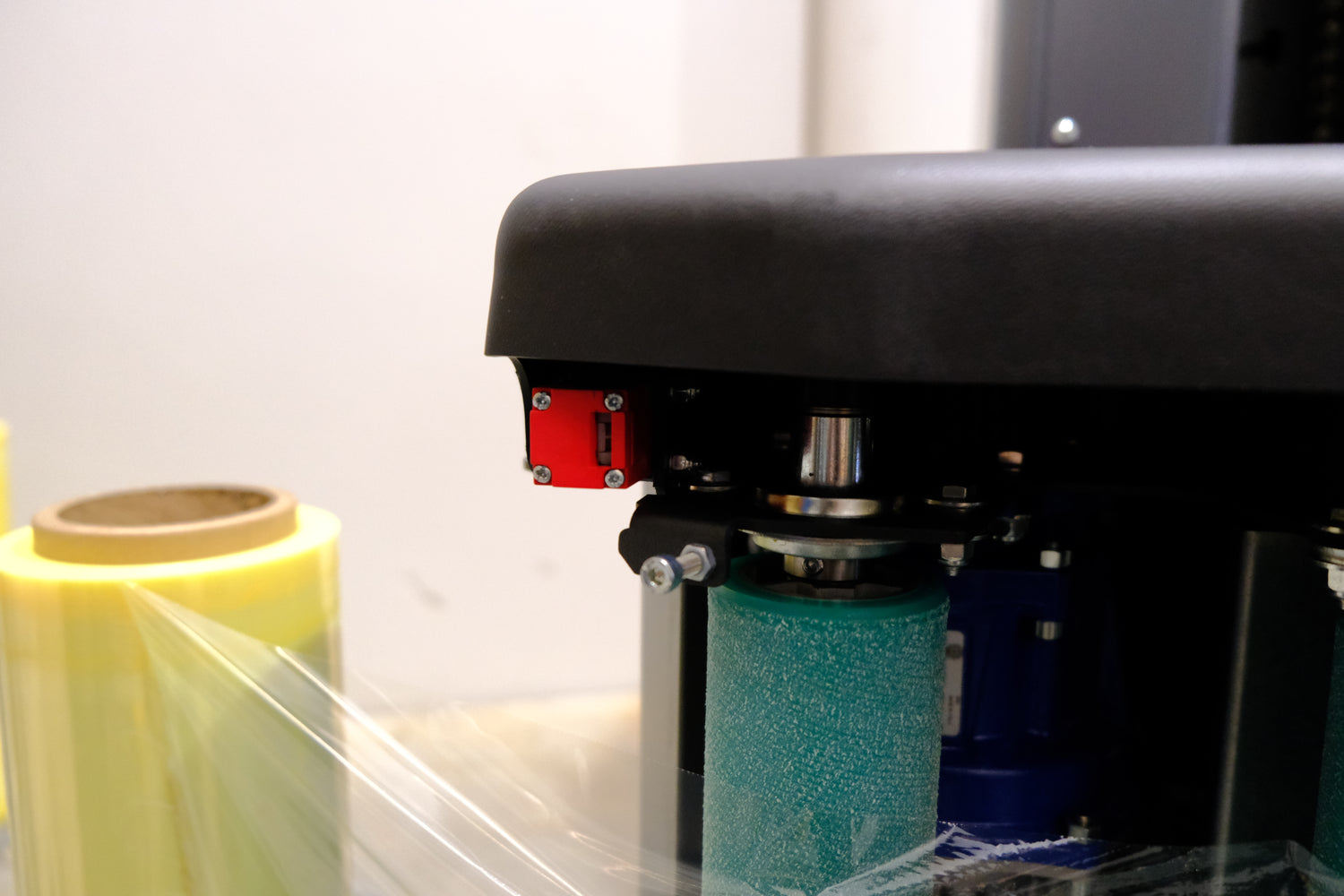

Polyurethane rollers

All ATLANTA STRETCH powered pre-stretch machines use Polyurethane rollers, this ensures long life at optimal grip, and a high resistance to cutting in the event of a stretch wrap jam. Polyurethane rollers are  vastly superior to rubber rollers for this
reason. They rarely if ever will need to be replaced.

safe for all

Fully enclosed mast design

Atlanta stretch build machines with a fully enclosed mast design, this means that all components for the carriage to operate are inside the mast, the upper and lower limit switches, the chain, cable loom, microswitches and the main bearings of the flange are all internal.

This internal design design means there is less chance of components failing due to dust or moisture, they cant be knocked and people cant get their fingers in there.

component comparison

Heavy duty gearbox

The gearbox and motor to the left is from an Atlanta stretch synthesi or Mytho, the flange is mounted to the sealed gearbox using 8 large MX6 bolts. it is then bolted to the base of the machine using M10 bolts.

To the right is a gearbox used in other Italian made machines. The Atalanta Gearbox is mounted with more and larger bolts, reducing service requiments, flange breakages, ongoing motor and flange replacment and sigificantly reduces cost of ownership and downtime.

If you're shopping around for machines we urge you to look at the build quality and components used for machines, weather you buy an Atlanta or not, we want to educate buyers and not have them stuck with an Alfa Romeo of pallet wrappers which might look cool as a weekend ride, but it only works half the time. Whats your daily pallet wrapper going to be?

Component comparison

Heavy duty steel flange

The Left it an ATLANTA steel carriage flange and bearing setup for the mast, its responsible for bearing the weight of the stretchwrap, roll carriage, and force of the strechwrap been stretched also maybe a forklift bump or too.

This carriage flange is used throughout the range from our entry level machine the Eva through to the high end Mytho.

The right is a linear bearing and flange used in some other entry level and midrange models. Ask yourself, how much stretchwrap stretching force can a linear bearing take before you rip it off the rail?

Don't take our word for it, inspect any machine before you buy. but look for these points.

See our pallet wrapper showroom

Dedicated pallet wrapper showroom

If you want to compare models up close, that's no problem, we have a dedicated showroom where we have a range of models setup for comparison,
