MPS Packaging Australia SKU: ADL2015

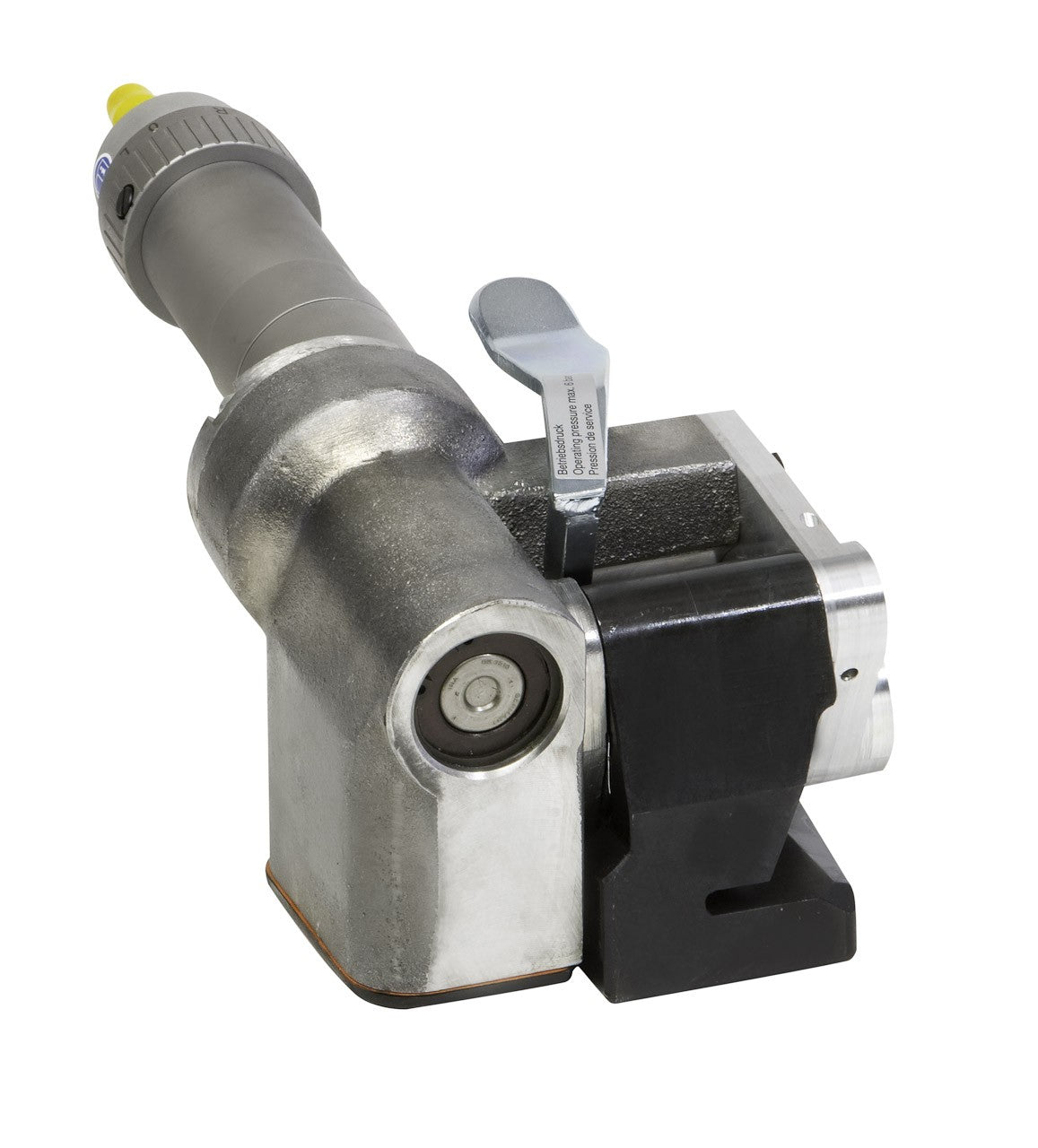

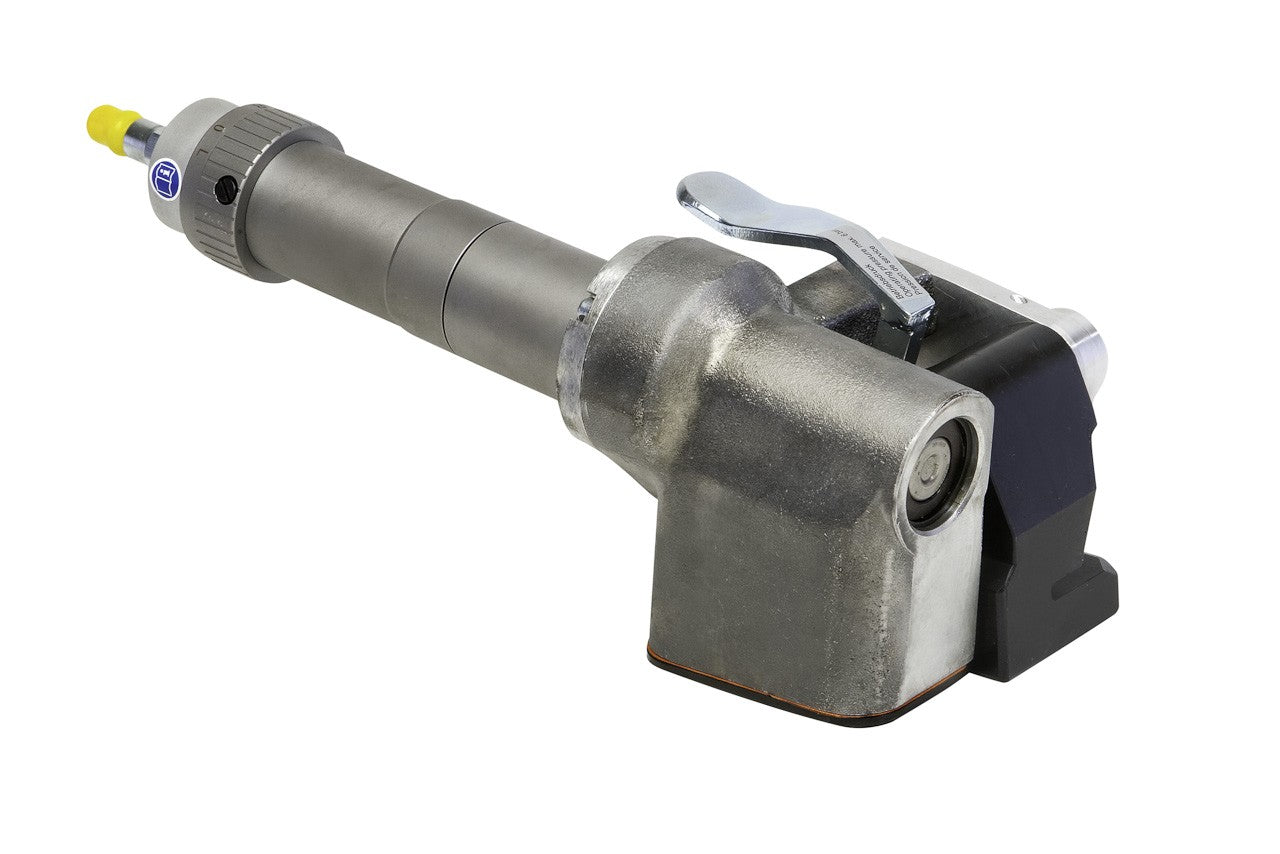

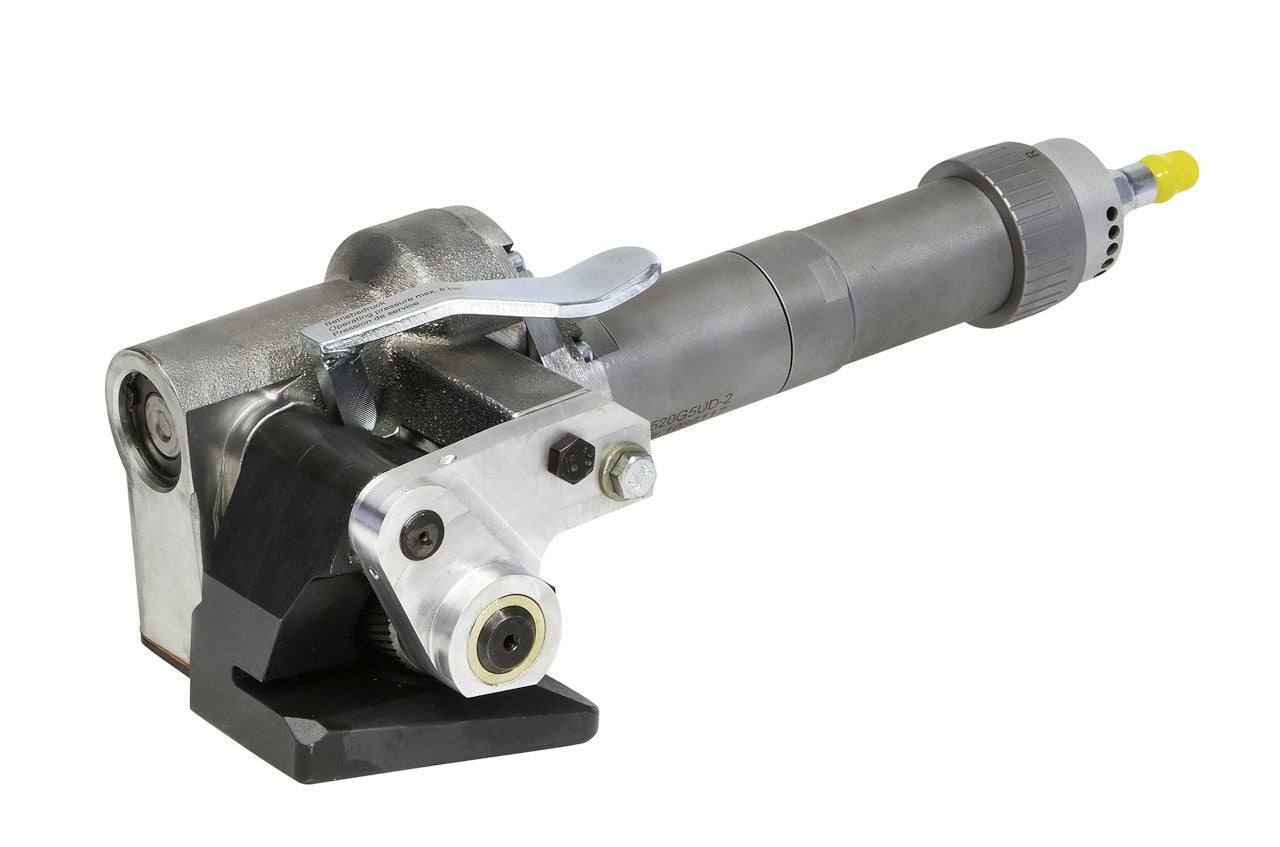

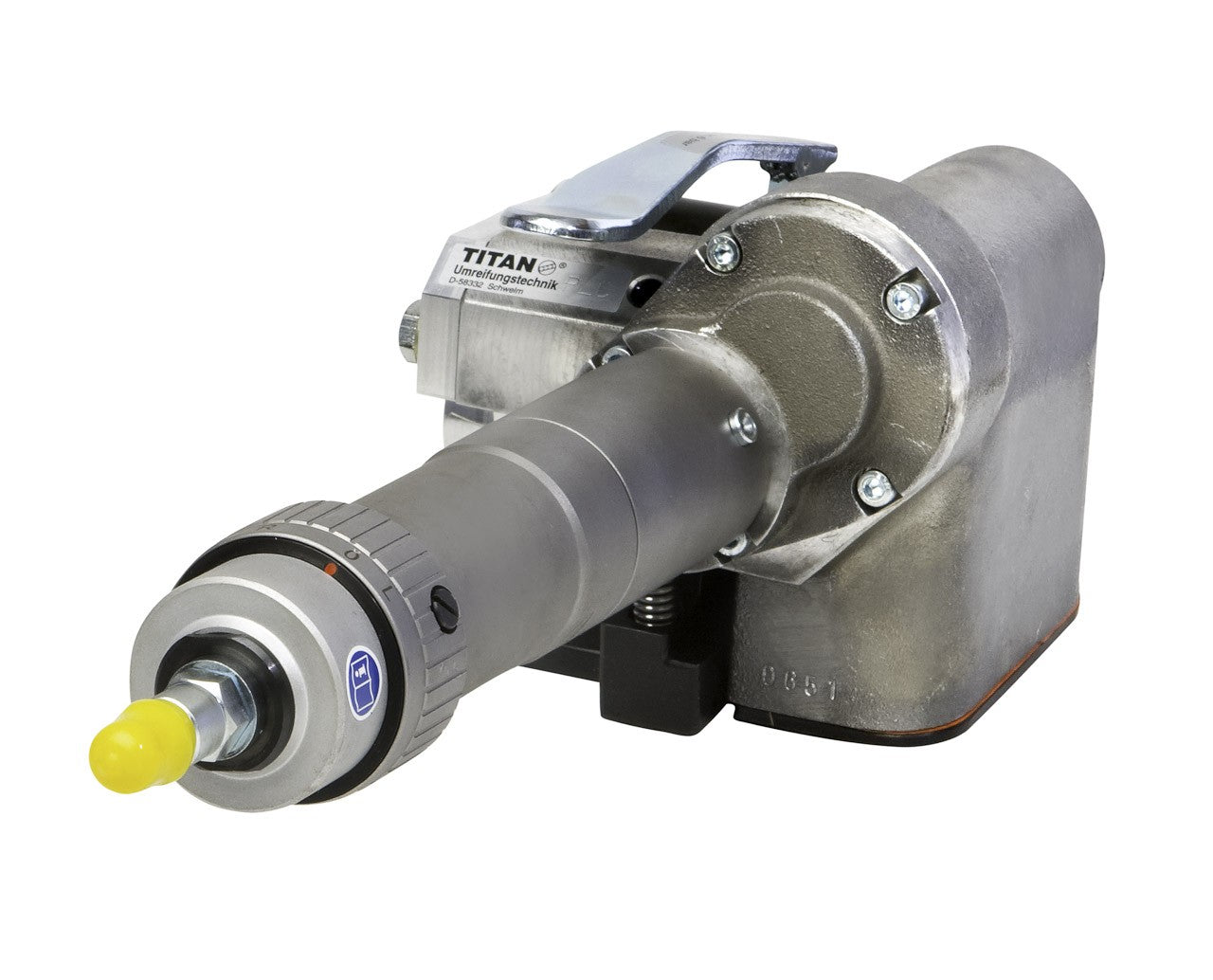

TITAN PLC-PNEUMATIC TENSIONER STRAPPING TOOL

TITAN PLC-PNEUMATIC TENSIONER STRAPPING TOOL

The Titan Pneumatic Tensioner Strapping Tool delivers High force for extreme applications

Enquiry Form

Contact us Please contact us for wholesale pricing or freight discounts for larger orders.
Contact us
View full details

TITAN PLC TENSIONER

The principle of lifting and lashing necessitates highly specific characteristics from both the strap and the strapping tool.

In brief, the straps are employed to hoist loads. Given that the entirety of the loaded cargo’s weight is borne by the strap alone, a substantial strap thickness of 1.45 mm becomes imperative. Consequently, the strapping functions as a slinging apparatus. Conversely, lashing involves fastening the load units together.

PLC PNEUMATIC TENSIONER

Because this procedure holds significant importance in shipping contexts, the tensioner PLC finds utility in securing steel coils within a vessel’s hold. Notably, this mode of load securing demands an exceptional tensioning force, a role for which the PLC proves dependable, capable of delivering up to 20,000 N of force on strap widths of 32 mm.

The PLC exclusively operates as a tensioner, working in tandem with sealers SCR or DCR, which employ crimp seals. These seals permit controlled slippage of the strap within the seal, consequently acting as shock absorbers.

ADVANTAGES

  • High force for extreme applications

TITAN PLC TECHNICAL FEATURES

Type of strap - Steel Strap

Strap Width - 32mm

TITAN PLC TECHNICAL DATA
Kind of drive (tensioning)
Pneumatic
Tension force
20,000N
Kind of drive (Sealing)
Pneumatic
Dimensions
399x120x140mm (LxWxH) 12.6X4.7×5.5” (LxWxH)
Weight
8KG
Air pressure
Max. 6 bar flow pressure
Air consumption (during tensioning)
and 21.18 ft³ / min.

Download

TITAN PLC DATA SHEET Download
TITAN PLC MANUAL Download
