MPS Packaging Australia SKU: XST-726E

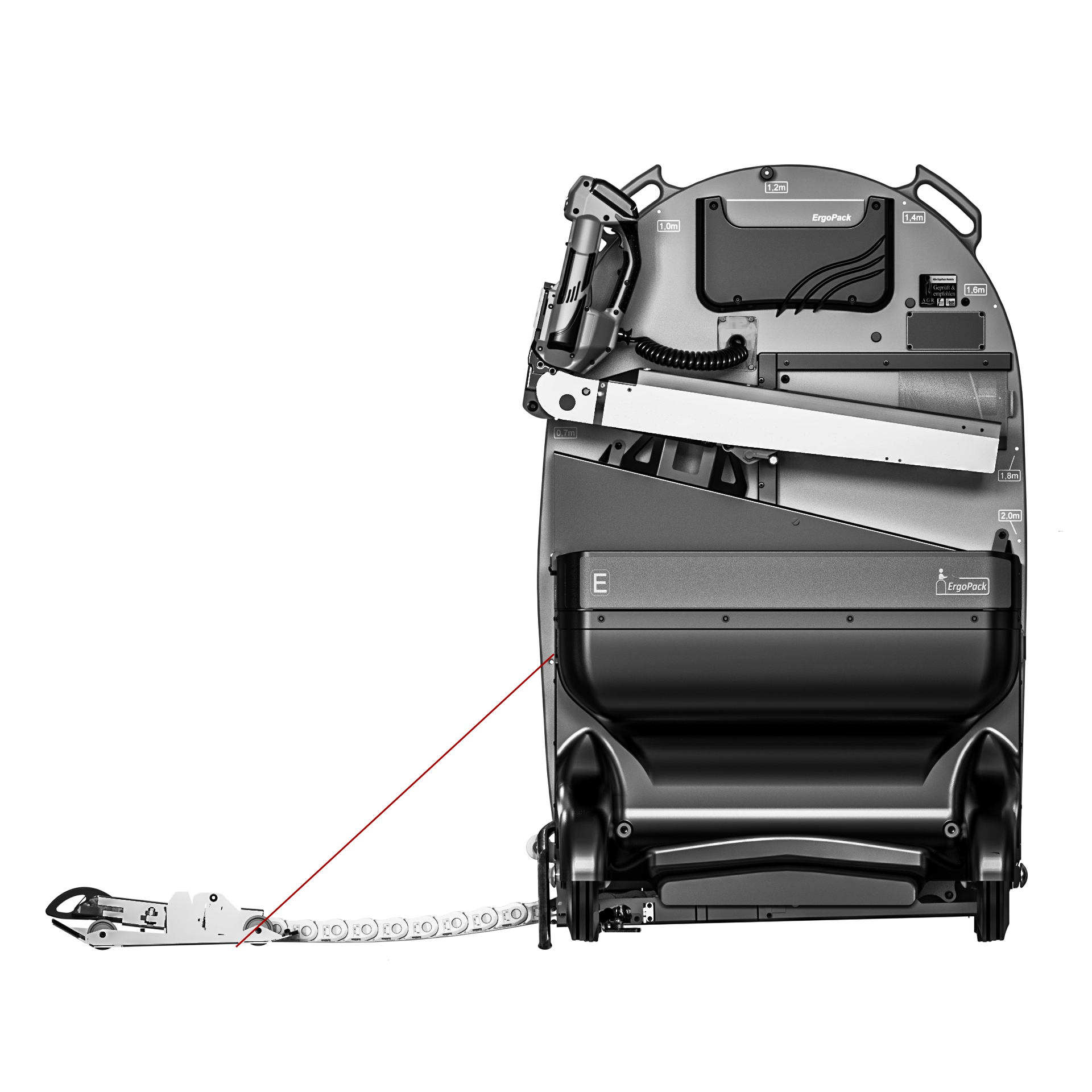

Mobile pallet Strapping Machine - Ergostrap E-Conomy Line

Mobile pallet Strapping Machine - Ergostrap E-Conomy Line

The Ergostrap E-Conomy Line of Mobile pallet strapping machines, straps pallets quickly and effortlessly for users. eliminating unwanted back fatigue while improving strapping speed.

$35,200.00
$35,200.00
Sale Sold out
Tax included.
Contact us Please contact us for wholesale pricing or freight discounts for larger orders.
Contact us
German Made This Product is made in Germany
View full details

The Company

The Ergostrap brand is made by ErgoPack Deutschland GmbH, Ergostrap products secures goods ergonomically, easily and efficiently.

In 25 years Ergopack has sold over 80 thousand units worldwide under the Ergopack and Ergostrap brand.

The Ergostrap brand is the official licenced brand name and for distribution in Australia.

The Distributor

MPS Packaging is the only official licenced distributor for Ergostrap products from Victoria, for distribution nationwide.

The Ergostrap Product is a premium product and distribution of it requires companies with technical knowledge, technical support and customer support.

MPS arn't about selling the Ergostrap unit, we want to sell you the solution to your problems. Our sales team will discuss with you your product and application and perform an onsite demo to ensure suitability.

The Solution

Workplace back and wrist injuries are highly common in the Australian workplace, costing businesses a great deal of time and money each year.

The Ergostrap unit solves this by reduces the need to bend over when strapping a pallet. No bending, low risk of injury, prevent back problems!

The Ergostrap unit also greatly reduces time spent strapping pallets. Most of all companies need two minutes for the strapping process, Ergostrap does it in 40 seconds.

The E-Conomy line

The Ergostrap E-conomy line of mobile pallet strapping machines, is Ergostraps Standard line of ergonomic pallet strapping machines. The E-Conomy line Features

  • Standard Joystick control, used on ergostrap models since 2003
  • Sealed AGM batteries in 24v, for upto 350 cycles per charge
  • Chain lance speed of 40m per minute.

What's included

In 713E / 726E / 745E
  • 24V Sealed AGM batteries
  • Charger
  • Ergostrap tool lift
  • Sealing head tool
  • Control via Joystick

Ergostrap Demo

The Ergostrap mobile pallet strapping unit straps pallet quickly and effeciently, without the need to bend over.

  • The chain lance drives through the pallet feeding the strap with it under and around the pallet.
  • The users grabs the strap
  • retracts the chain lance
  • The strap lifter lifts the bottom the strap
  • The users places the strapping into the sealing head
  • Straps the pallets
  • Jobs done, quickly & ergonomically.
Please note the X-pert Model is used in this demo, end result is the same, only features and upgrades included are different.

Comparison

Watch the speed difference between these 2 strapped pallets. The Ergopack unit does it in half the time.

  • Operator doesn't need to walk around pallet.
  • Operator doesn't need to bend over.
  • Operator doesn't need to manually feed strap under pallet with a manual lance or without a lance.
Please note the X-pert Model is used in this demo, end result is the same, only features and upgrades included are different.

E-Conomy Models

The E-Conomy models from Ergostrap is the standard Ergostrap range, featuring
AGM interface, a standard interface and more mechanical and manual style controls its a highly robust unit.

Model 700 - Dispenser only - Manual crank drive

Model 700E - Dispenser only - Electronic Driver

Model 713E - 1200N Tension force, 9-13mm

Model 76E - 2500N Tension force, 12-16mm

Model 745E- 4500N Tension force, 15-19mm

E-Conomy Models
Power
93W
Battery
2 x12v AGM in series
Voltage
24v
Cycles per Charge
350
Charger
2 x 12V Dual Charger - 2A
Chain speed
and 40m Per min

Indicators - E-Conomy Series

The E-Conomy series features basic indicators for information on status.

  • 3 LEDs indicating charging level sealing window open and cycle counts.

The Strapping head

Using a Swiss built strapping head, customized by Ergostrap the Strapping head is a highly reliable and effective strapping head, featuring its own LCD for:

  • Adjustment of Maximum tension
  • Adjustment of strapping mode
  • Adjustment of welding time
  • Setting strapping modes, between automatic, semi automatic and manual modes.

The strapping head uses a single shaft with a belt drive for the welding head, the belt drive reduces vibration of the tool and overall maintenance costs vs tools without a belt drive.

The Chain Lance

The chain lance is the core of the Ergostrap pallet strapping machine. The lance allows strapping to be quickly put through the base of the pallet and around the goods.

This is done quickly and effortless by the user.

The user controls the chain lance with the joystick at all times.

Mechanical control

The E-conomy line features adjustments by simple mechanical controls and adjustments.

  • Set pallet width manually by using adjustment pin

Comparison of the Ergostrap E-Conomy line vs X-Pert

Ergostrap upgrades

Download

Brochure - German version in English Download
Flyer Download
Manual - X-Pert Line Download
Manual E-Conomy line Download
