MPS Packaging Australia SKU: XST-726X

Automatic pallet Strapper - Ergostrap X-Pert Line

Name: Automatic pallet Strapper - Ergostrap X-Pert Line
Brand: MPS Packaging Australia
SKU: XST-726X
Availability: InStock

The Ergostrap range of Automatic pallet strapping machines, straps pallets quickly and effortlessly for users. eliminating unwanted back fatigue while improving strapping speed.

$0.00

Sale Sold out

Tax included.

Product variants

View full details

The Company

The Ergostrap brand is made by ErgoPack Deutschland GmbH, Ergostrap products secures goods ergonomically, easily and efficiently.

In 25 years Ergopack has sold over 80 thousand units worldwide under the Ergopack and Ergostrap brand.

The Ergostrap brand is the official licenced brand name and for distribution in Australia.

The Distributor

MPS Packaging is the only official licenced distributor for Ergostrap products from Victoria, for distribution nationwide.

The Ergostrap Product is a premium product and distribution of it requires companies with technical knowledge, technical support and customer support.

MPS arn't about selling the Ergostrap unit, we want to sell you the solution to your problems. Our sales team will discuss with you your product and application and perform an onsite demo to ensure suitability.

The Solution

Workplace back and wrist injuries are highly common in the Australian workplace, costing businesses a great deal of time and money each year.

The Ergostrap unit solves this by reduces the need to bend over when strapping a pallet. No bending, low risk of injury, prevent back problems!

The Ergostrap unit also greatly reduces time spent strapping pallets. Most of all companies need two minutes for the strapping process, Ergostrap does it in 40 seconds.

The X-pert line

The Ergostrap X-pert line of products, is Ergostraps premium line of mobile pallet strapping machines. The X-pert line Features

LED interface for intuitive guidance.
Lithium-Ion batteries capable of 1200 strapping cycles per charge. That's 340% over the standard model.
Increased lance speed at 66m per minute.

What's included

In 713 X LI / 726X LI 745X LI

In Lithium Batteries
Charger
Line laser
Ergostrap tool lift
Sealing head tool
Control via Industrial touchscreen

Ergostrap Demo

The Ergostrap mobile pallet strapping unit straps pallet quickly and effeciently, without the need to bend over.

The chain lance drives through the pallet feeding the strap with it under and around the pallet.
The users grabs the strap
retracts the chain lance
The strap lifter lifts the bottom the strap
The users places the strapping into the sealing head
Straps the pallets
Jobs done, quickly & ergonomically.

Comparison

Watch the speed difference between these 2 strapped pallets. The Ergopack unit does it in half the time.

Operator doesn't need to walk around pallet.
Operator doesn't need to bend over.
Operator doesn't need to manually feed strap under pallet with a manual lance or without a lance.

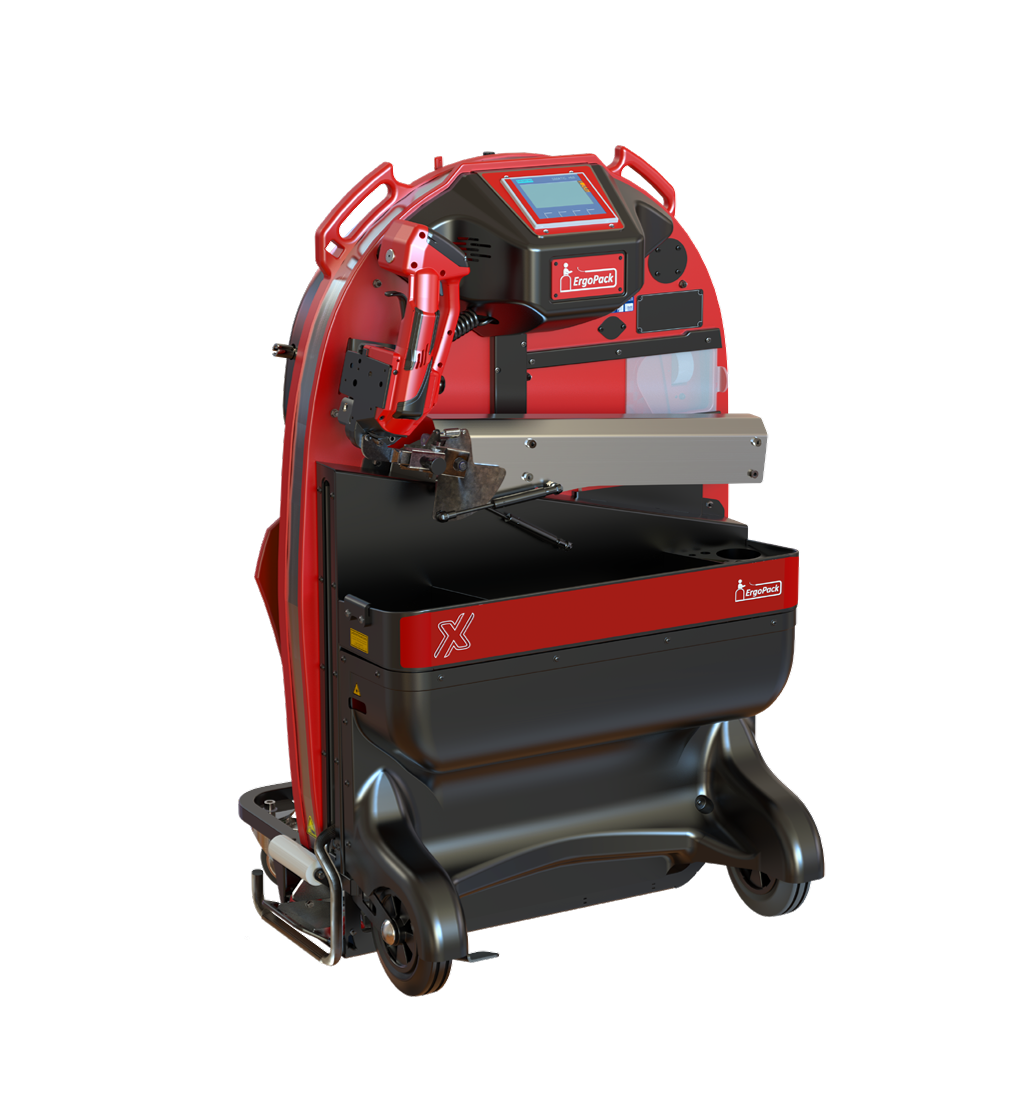

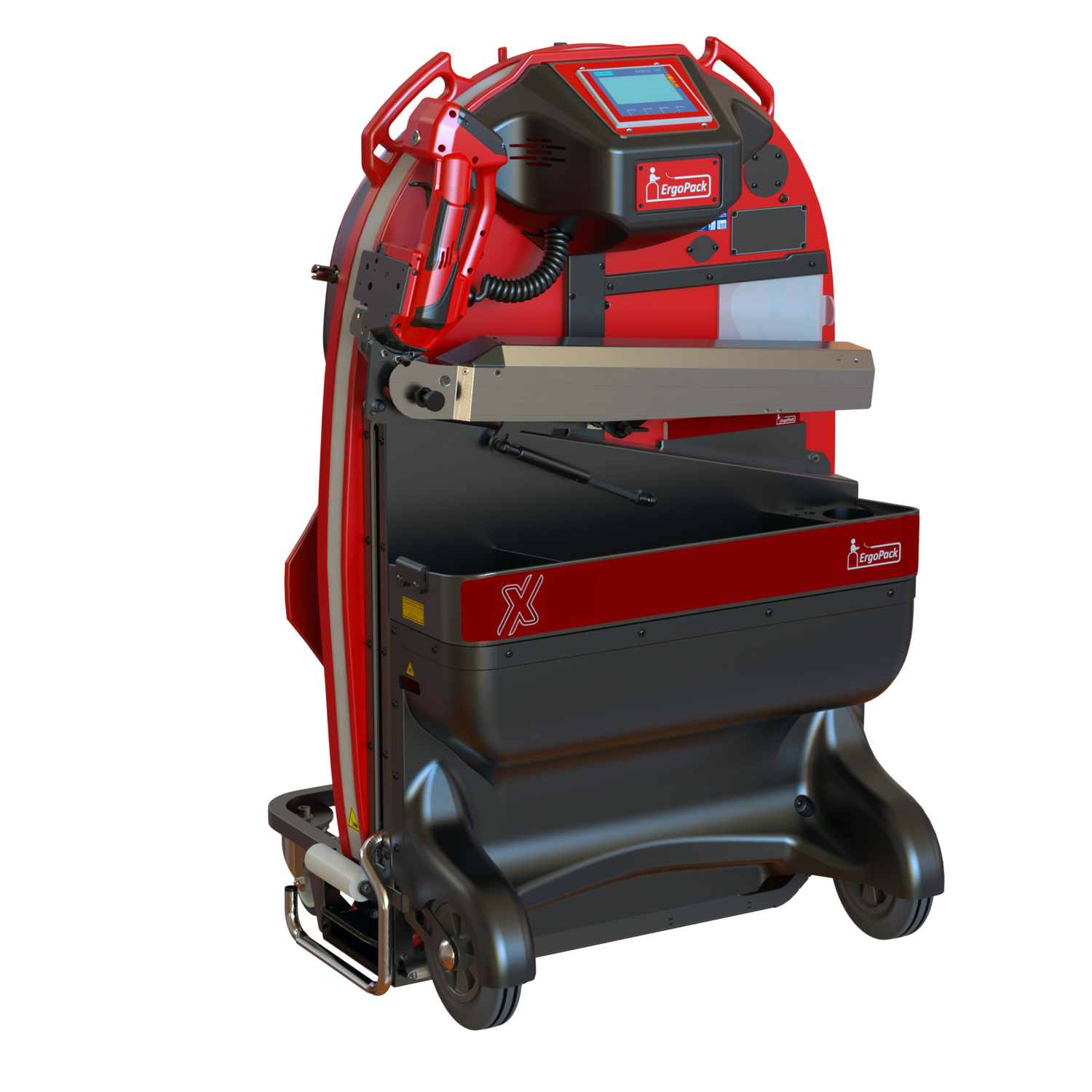

X-Pert Models

The X-pert range is the advanced Ergostrap range, featuring LCD screen for status and settings and an upgraded Lithium-Ion battery pack.

Model 700X LI - Dispenser only
Model 713X LI - 1200N Tension force, 9-13mm
Model 726X LI - 2500N Tension force, 12-16mm
Model 745X LI - 4500N Tension force, 15-19mm

Ergostrap X-Pert

Power

235W

Battery

Lithium Battery (interchanging possible)

Voltage

36V

Cycles per charge

1200

Charger

36v - 10A

Chainspeed

and 66m/min

Indicators - X-Pert series

charging level indicated graphically and in %,
Set pallet width,
Permanent graphically indication of the ChainLance position,
Strapping cycles,
Sliding window open graphically and in writing,
Safety instructions,
Menu-driven step by step description for semi automated strap roll change

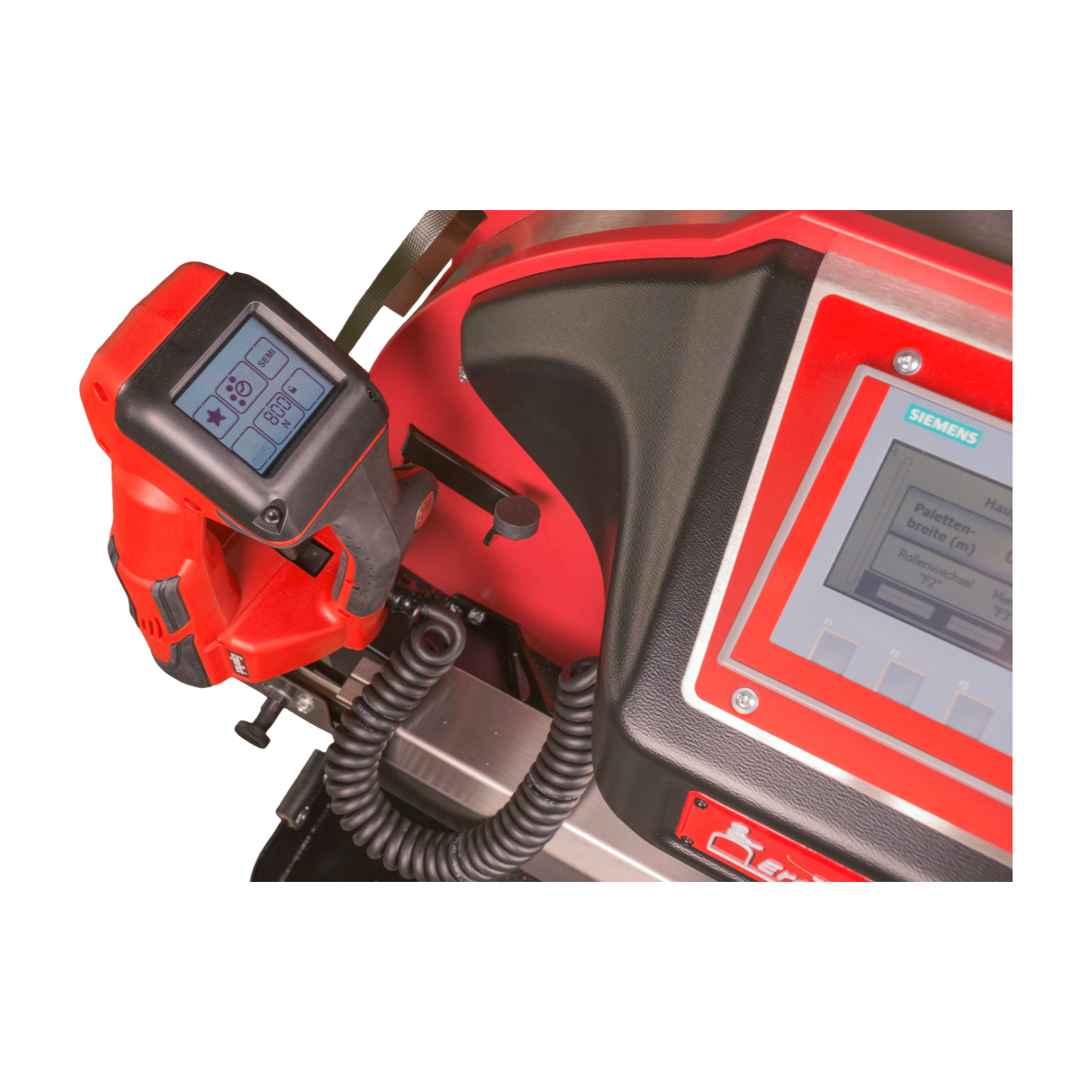

The Strapping head

Using a Swiss built strapping head, customized by Ergostrap the Strapping head is a highly reliable and effective strapping head, featuring its own LCD for:

Adjustment of Maximum tension
Adjustment of strapping mode
Adjustment of welding time
Setting strapping modes, between automatic, semi automatic and manual modes.

The strapping head uses a single shaft with a belt drive for the welding head, the belt drive reduces vibration of the tool and overall maintenance costs vs tools without a belt drive.

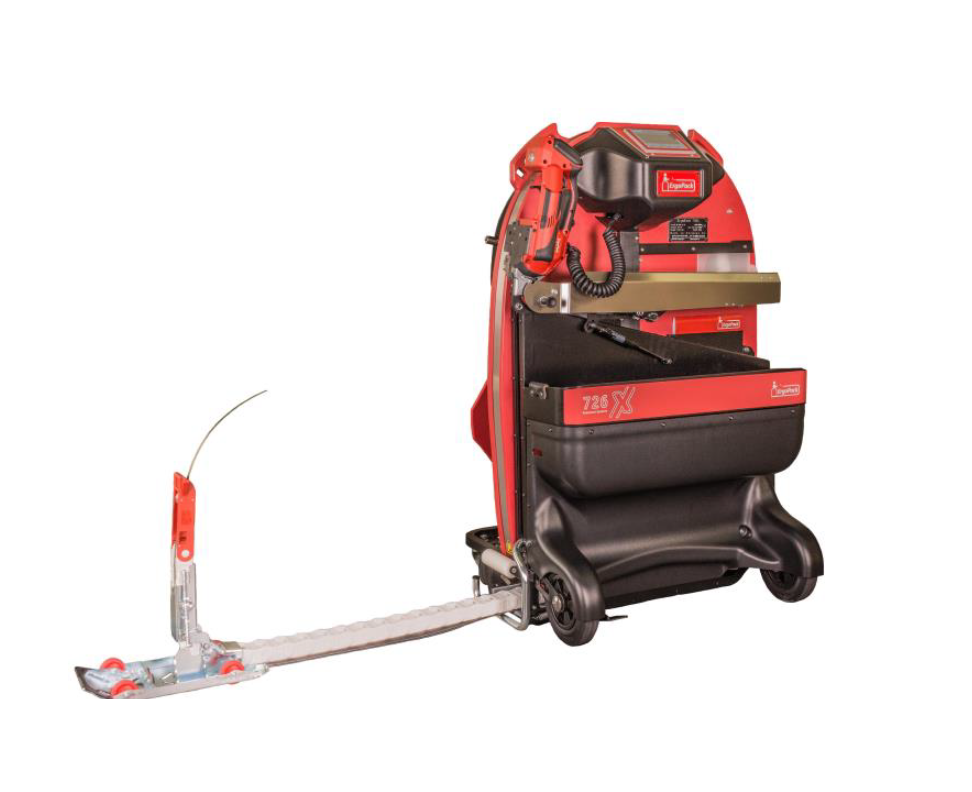

The Chain Lance

The chain lance is the core of the Ergostrap pallet strapping machine. The lance allows strapping to be quickly put through the base of the pallet and around the goods.

This is done quickly and effortless by the user.

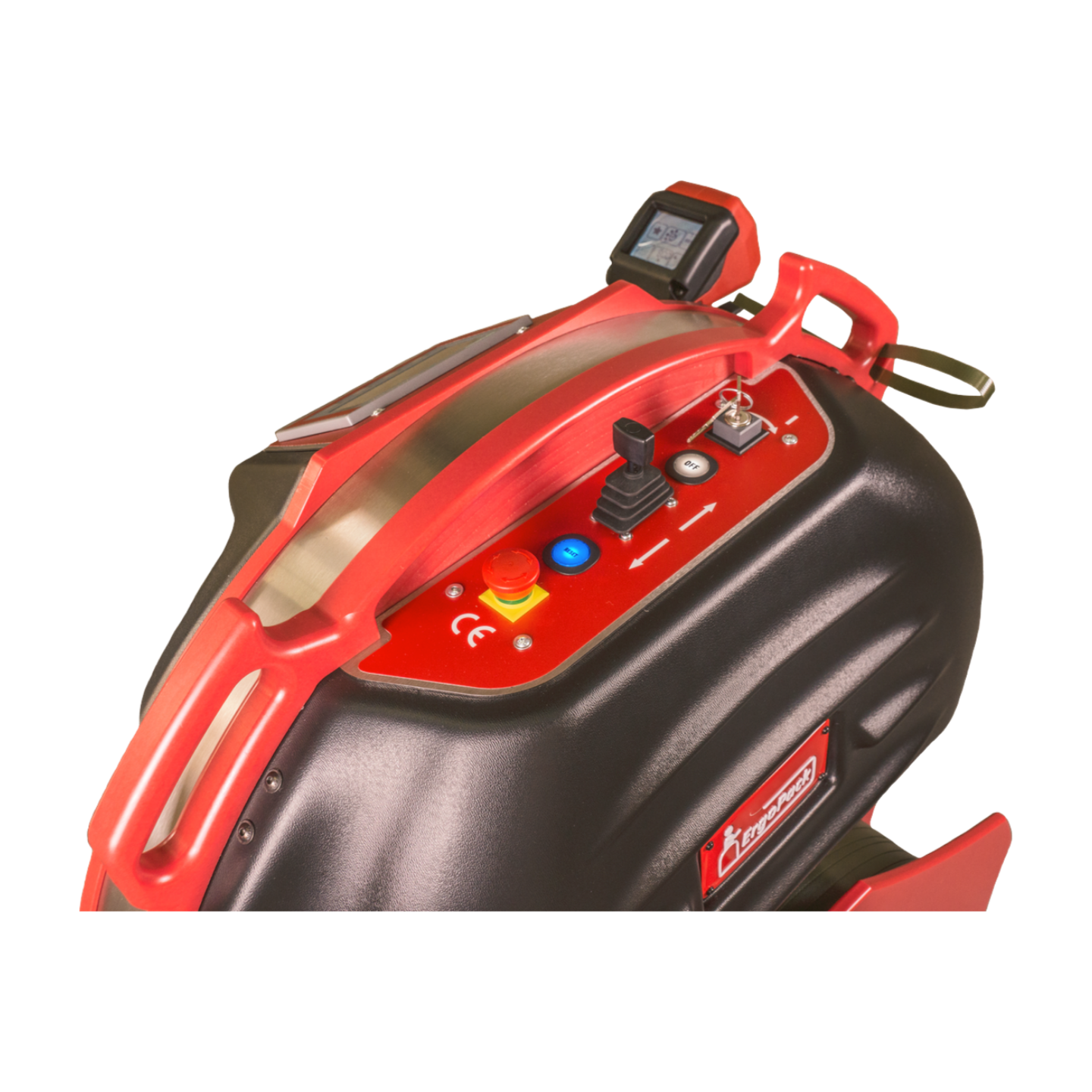

The user controls the chain lance with the joystick at all times.

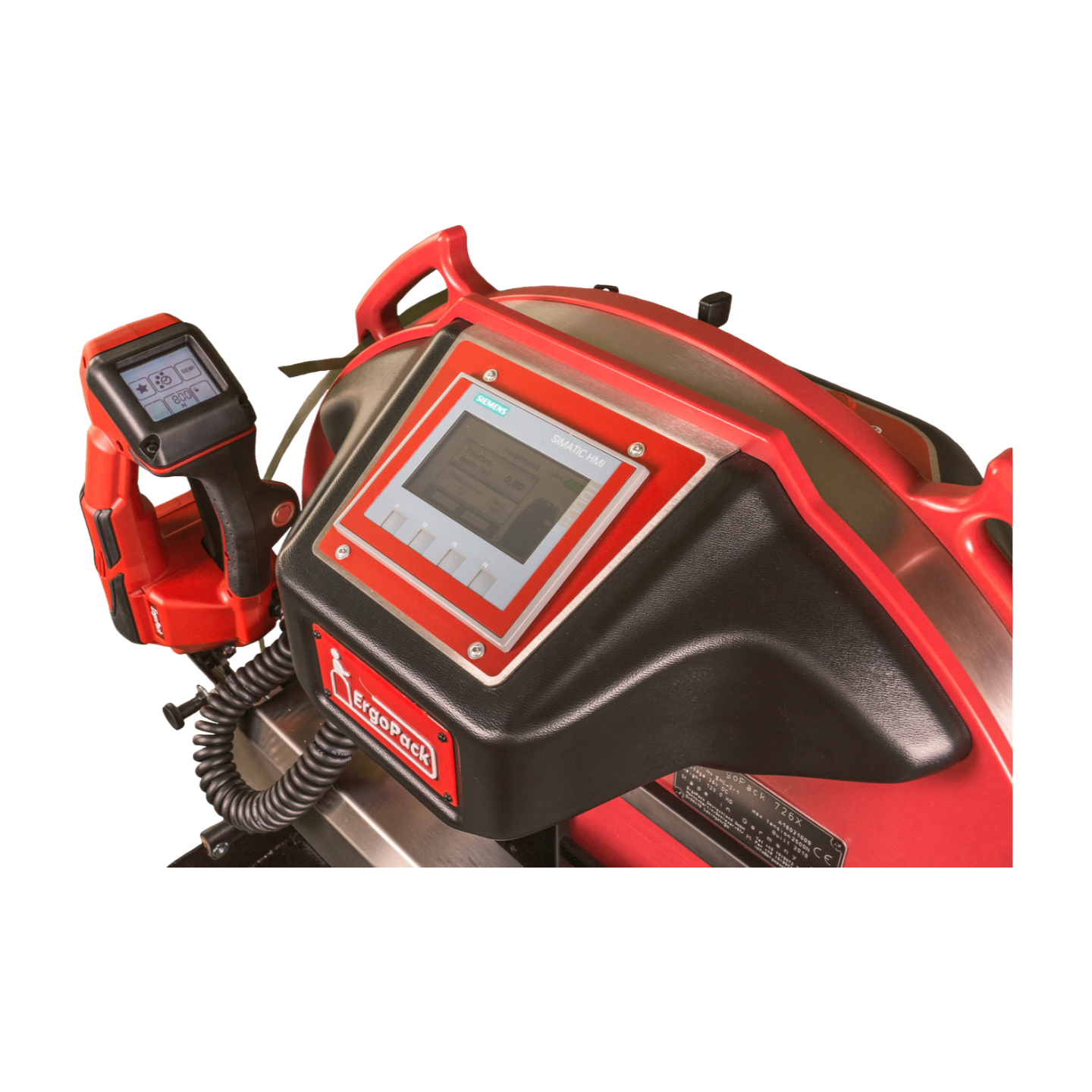

The X-Pert interface

Individual setting options via the Siemens Industrial Touchscreen, such as:
• Chain speed,
• Chain length,
• standby timer,
• Strap lifter time for upper position,
• Line Laser on/off,
• Sealing head on/off

And easy update via USB stick
